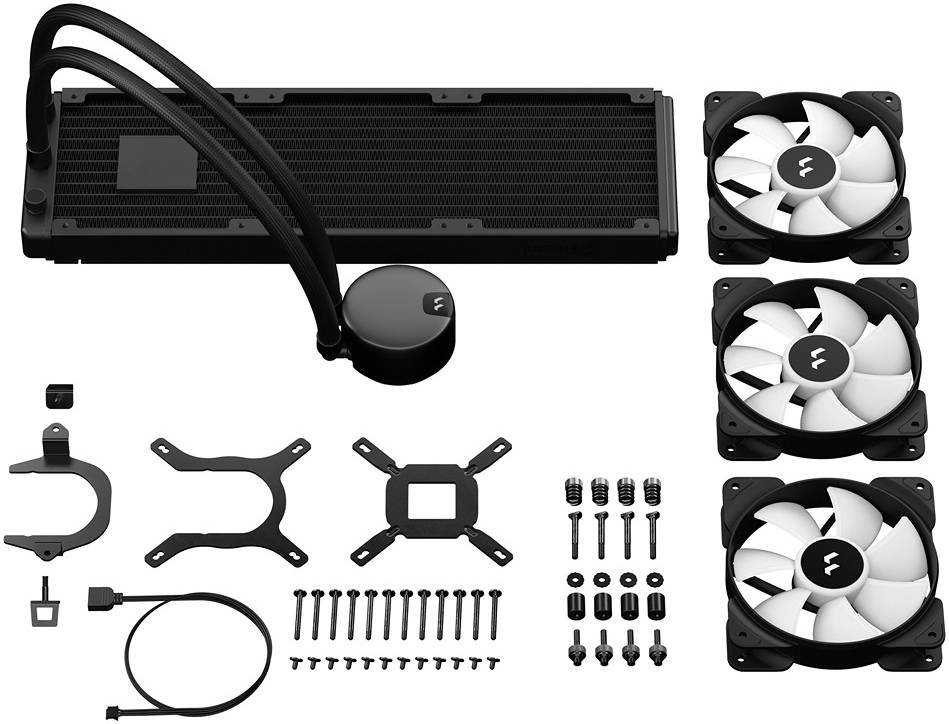

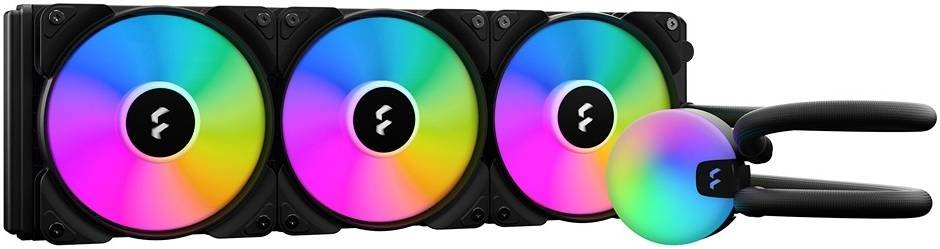

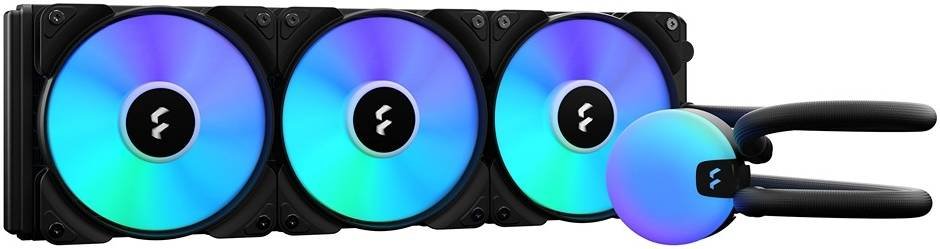

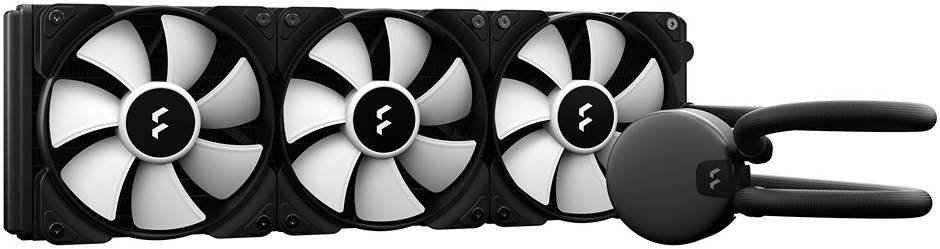

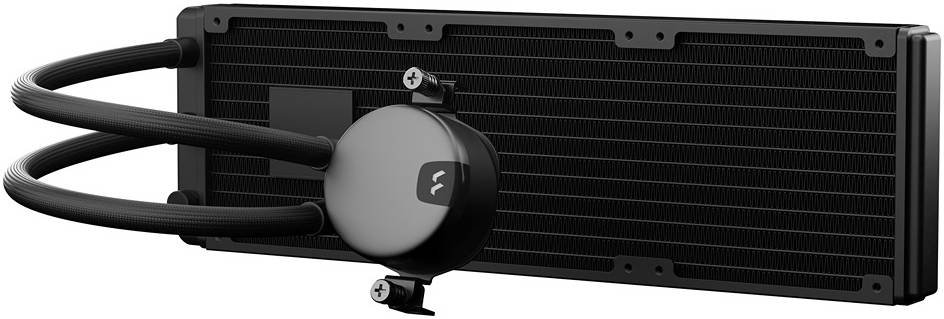

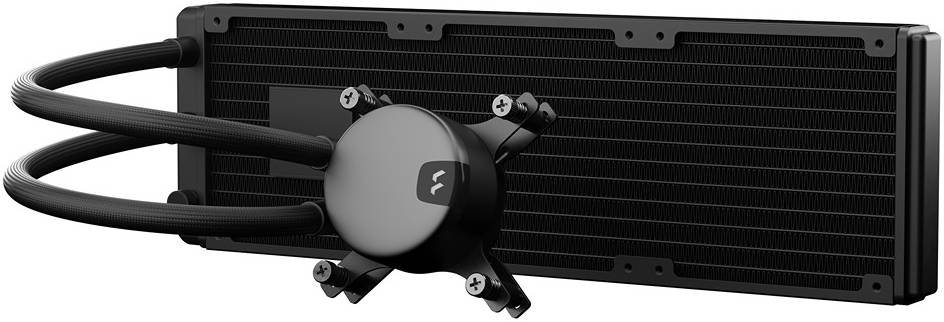

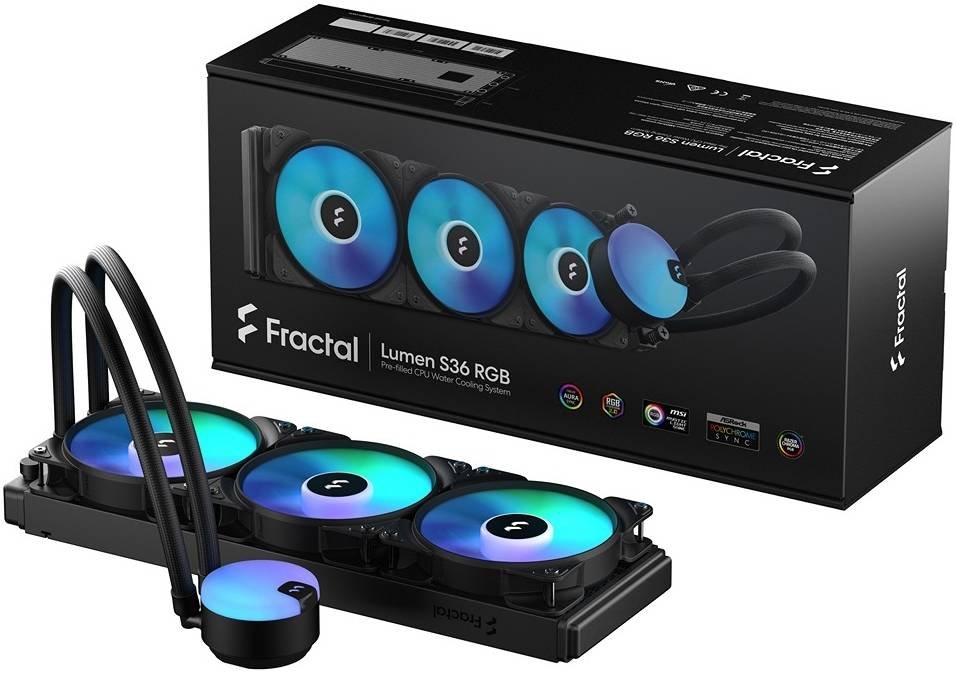

Fractal Design Lumen S36 RGB 360mm AIO CPU Liquid Cooler, LGA 1700 Support, Copper Cold Plate, Aluminium Fins & Radiator, Six ARGB LEDs, 3x 12 RGB PWM Fans, Support LGA 1700/AM5, Black

• Sockets supported (Intel)
  LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
• Sockets supported (AMD)
  AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
• * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
• Cold plate material
  Copper
• Thermal paste
  Pre-applied
• Tube length
  400mm
• Tube material
  Low-permeability rubber with braided nylon sleeve
• Fittings, block side
  Articulating 90-degree Elbow
• Fittings, radiator side
  Barbed fitting
• Block height
  43mm
• Block measurements (with fittings)
  79 x 67 mm
• Block diameter (main block body)
  67 mm

Fan specifications

• Fan type
  Aspect 12 RGB PWM
• Rotational speed
  500–2000 RPM
• Fan bearing
  Rifle bearings
• Fan PWM control
  Yes
• Fan acoustical noise
  <10–33.2 dBA
• Fan maximum air flow
  13-56 CFM
• Fan maximum static pressure
  0.230–2.34 mm H2O
• Fan input voltage
  12V
• Fan maximum input current
  0.37A
• Fan MTTF
  90,000 hours

Pump specifications

• Rotational speed
  4000 ± 10% RPM
• Bearing type
  Ceramic
• PWM control
  No
• Acoustical noise (full speed)
  22 dBA
• Maximum pressure
  1.8 mm H2O/ 17.6 kPa / 2.5 PSI
• Input voltage
  12V DC
• Input current (without fans)
  0.34 A
• MTTF
  50 000 hours
