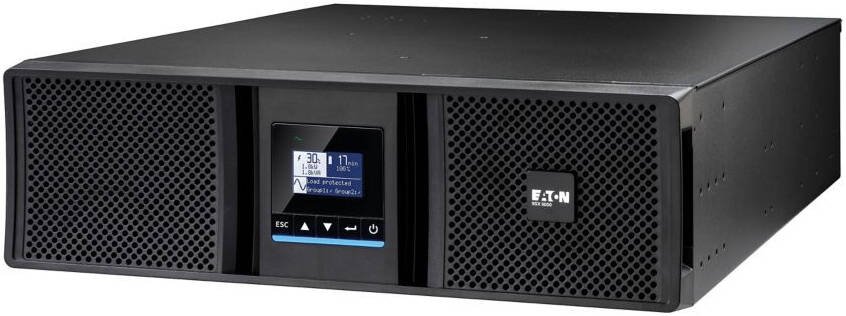

Eaton 9SX RT3U Gen2 Online Double-Conversion UPS, 5000VA Rating, 5000W, Rack/Tower 3U, 8 C13 + 3 C19 Outlets, Hot-Swappable Batteries, Graphical LCD Power Protection UPS
918,00 AED
- Online Double-Conversion Topology – Provides continuous, clean power with no transfer time, protecting critical equipment from outages and power anomalies.
- 5000 VA / 5000 W High Capacity – Delivers strong backup power for servers, network gear, and data center equipment.
- Hot-Swappable Batteries & Extended Battery Support – Internal batteries can be replaced without powering down, and external battery modules can be added for longer runtimes.

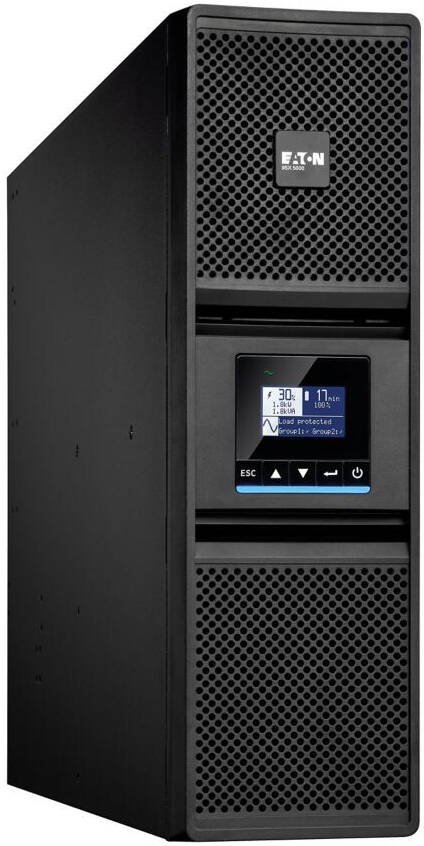

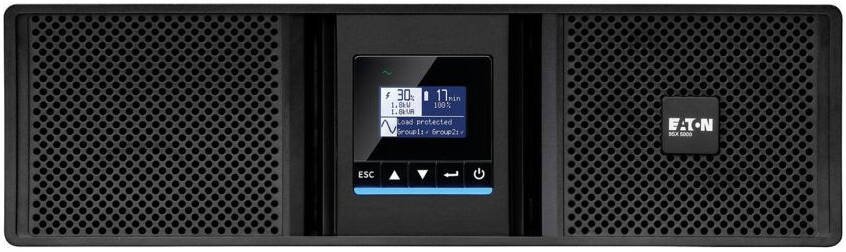

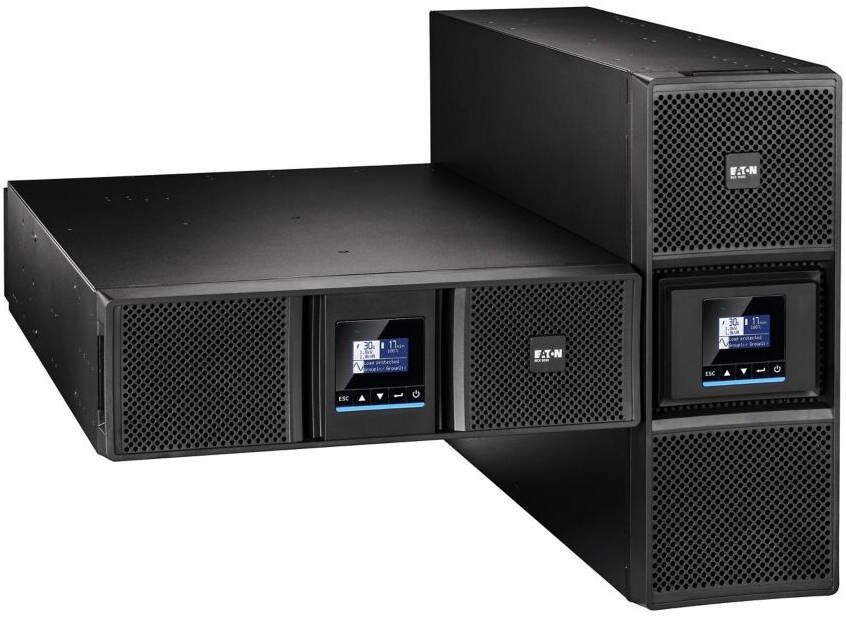

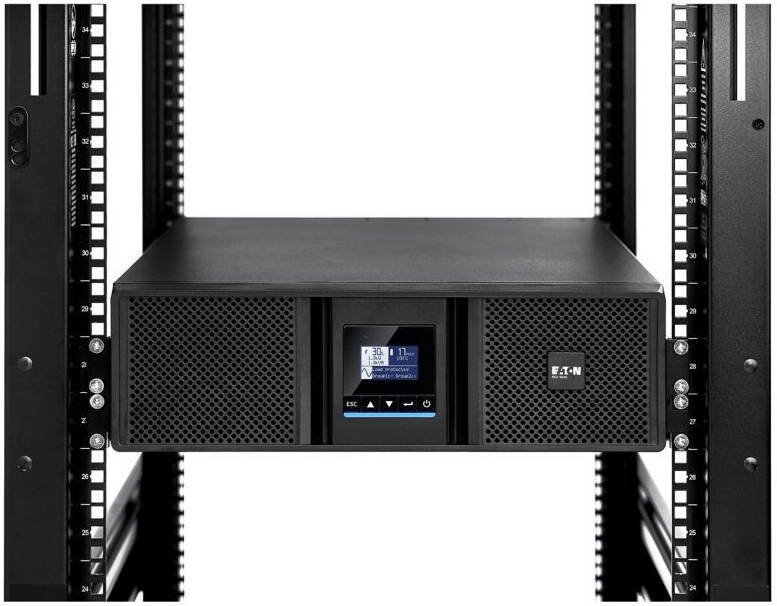

- Rack/Tower Form Factor with LCD Display – 3U rackmountable design includes a multilingual graphical LCD for easy monitoring and configuration.
- Advanced Battery Management & Protection – Features ABM+ predictive battery life, automatic testing, deep discharge protection, and wide input voltage range for reliability.
| Product Name | Eaton 9SX Gen2 UPS |
| Model Code | Eaton 9SX 5000i RT3U G2 |
| Catalog Number | 9SX5KIRT3UG2 |
| EAN | 3553340710650 |
| Dimensions (L × W × H) | 684 × 440 × 130 mm |
| Weight | 43.1 kg |
| Warranty | 2 years |
| Construction Type | 19-inch rack device |
| Color | Black |
| Efficiency (Max Load) | 96.7% |
| Compliance | LVD, EMC, RoHS, REACH, WEEE, Packaging, Batteries Directive |
| Certifications | IEC/EN 62040-1/2/3, ENERGY STAR, CE, cULus, UKCA, RCM, KCC, BSMI, Cm, Ukr |
| Package Contents | UPS, cable glands, IEC cables (1.2m), USB cable (1.8m), cable locking systems, rack kit, tower supports, safety guide, quickstart guide |
| Rack Mount Kit | Yes |
| Internal Bypass | Yes |
| Auto Shutdown | Yes |
| Hot Swap Power | No |
| Battery Type | Sealed lead-acid |
| Battery Quantity | 15 |
| Battery Rating | 12 V / 5 Ah |
| Battery Replacement | Hot-swappable internal batteries + EBM support |
| Battery Management | ABM+, temperature-compensated charging, auto test, deep discharge protection, auto recognition of external battery units |
| Extended Battery Support | Yes |
| Nominal Frequency | 50/60 Hz |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| VA Rating | 5000 VA |
| Wattage | 5000 W |
| Output Power Factor | 1 |
| Output Voltage | 230 V (adjustable 200–240 V) |
| Output Waveform | Sine wave |
| Receptacles | (8) C13, (3) C19, Hardwired |
| Voltage Distortion | ≤1% (linear load) |
| Topology | Online / Double-conversion |
| Feed Type | 1 |
| Communication Ports | USB (HID), RS232, remote ON/OFF, dry contacts |
| Network Card | No |
| Ethernet | No |
| User Interface | Multilingual graphical LCD display |
| Expansion Slots | 1 |
| Software Compatibility | Eaton Brightlayer suite |
| Potential Free Contacts | Yes |
| Operating Temperature | 0°C to 40°C |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 m |
