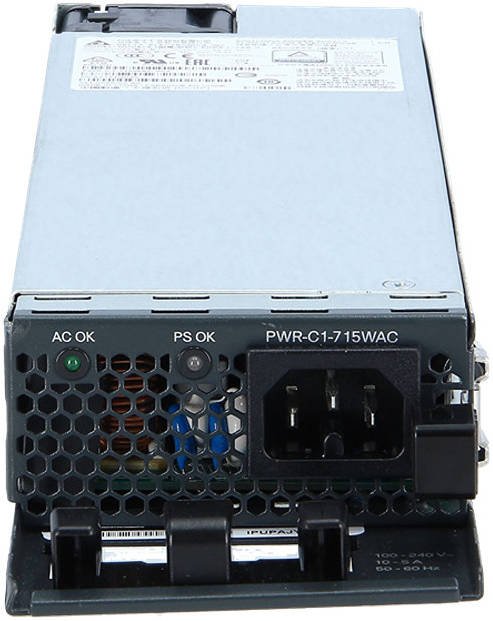

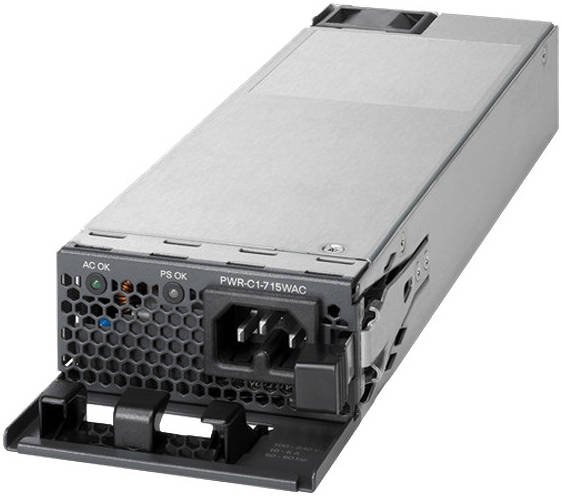

Cisco PWR-C1-715WAC-P/2, 715W AC 80+ platinum Config 1 Secondary Power Supply, hot-plug / redundant (plug-in module), AC 100-240 V – 715 Watt

3.150,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Product Code: PWR-C1-715WAC/2
  • Power supply rated maximum: 715W
  • Total output BTU (Note: 1000 BTU/hr = 293W) : 2465 BTU/hr, 715W
  • Input-voltage range and frequency : 100-240VAC, 50-60 Hz
  • Input current: 10-5A
  • Output ratings : -56V at 12.8A
  • Output holdup time: 16.7 ms minimum at 100VAC
  • Power-supply input receptacles: IEC 320-C16 (IEC60320-C16)
  • Power cord rating: 13A
  • Physical specifications (H x W x D): 1.58 X 3.25 X 12.20 in
  • Weight: 2.8 lb (1.3 kg)
  • Operating temperature : 23 to 113°F (-5 to 45°C)
  • Storage temperature : -40 to 158°F (-40 to 70°C)
  • Relative humidity operating and nonoperating noncondensing: 5 to 90% non-condensing
  • Altitude: 10,000 ft. (3000 meters), up to 45°C
  • MTBF: Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
  • EMI and EMC compliance :
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN 55022 Class A
    • CISPR 22 Class A
    • AS/NZS 3548 Class A
    • BSMI Class A (AC input models only)
    • VCCI Class A
    • EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3
    • EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
  • Safety compliance: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
  • LED indicators
    • “AC OK”: Input power to the power supply is OK
    • “PS OK”: Output power from the power supply is OK
