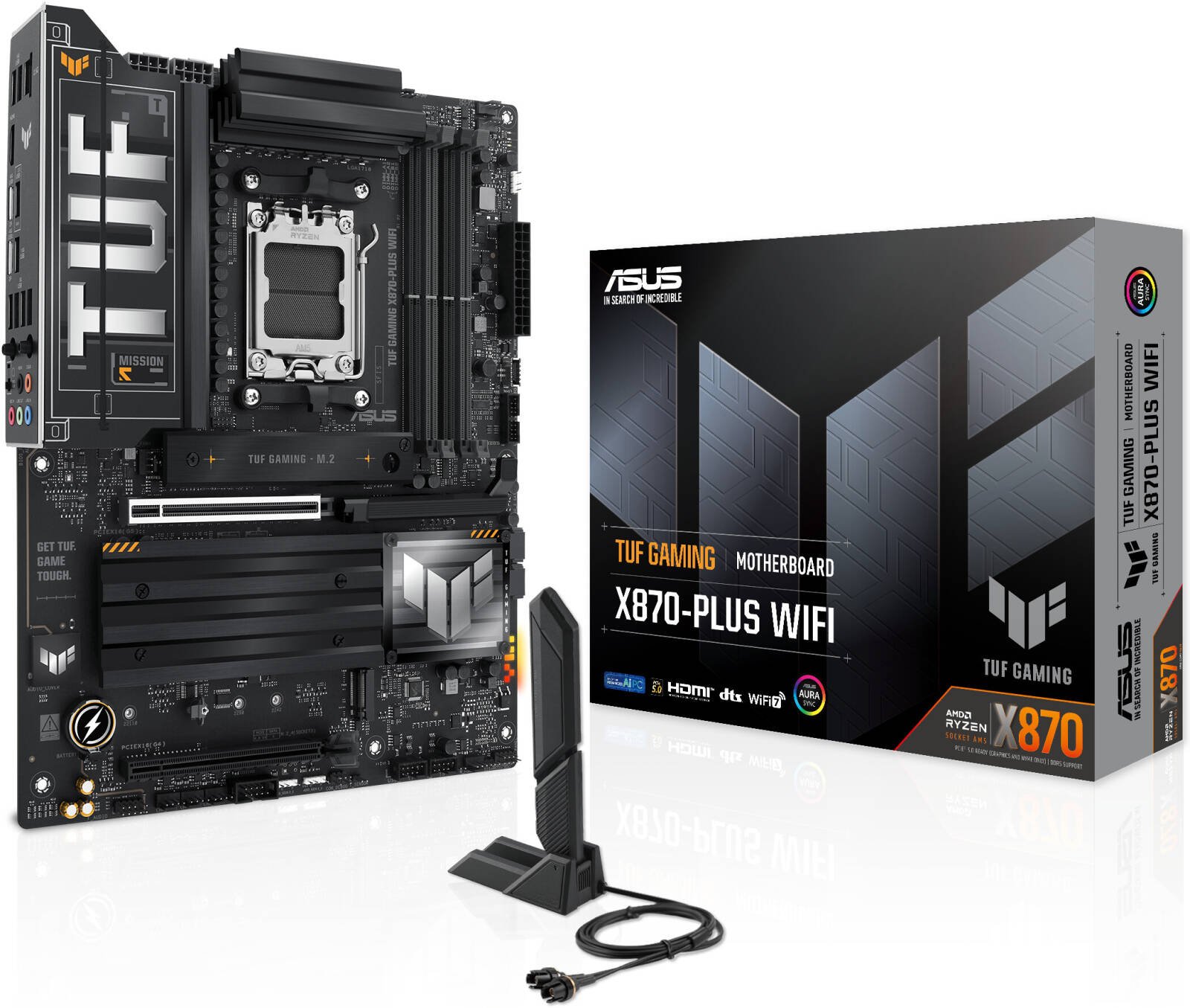

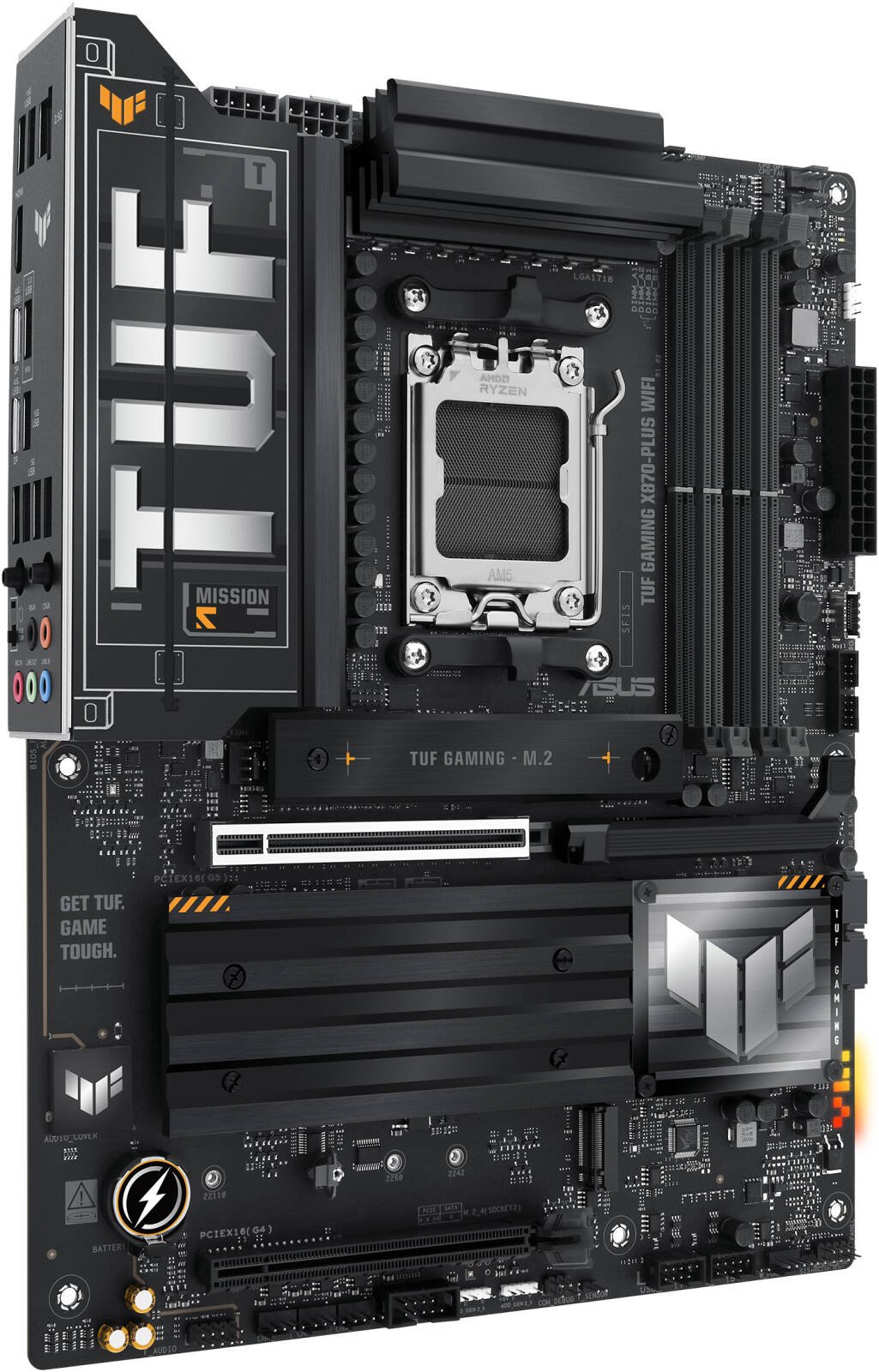

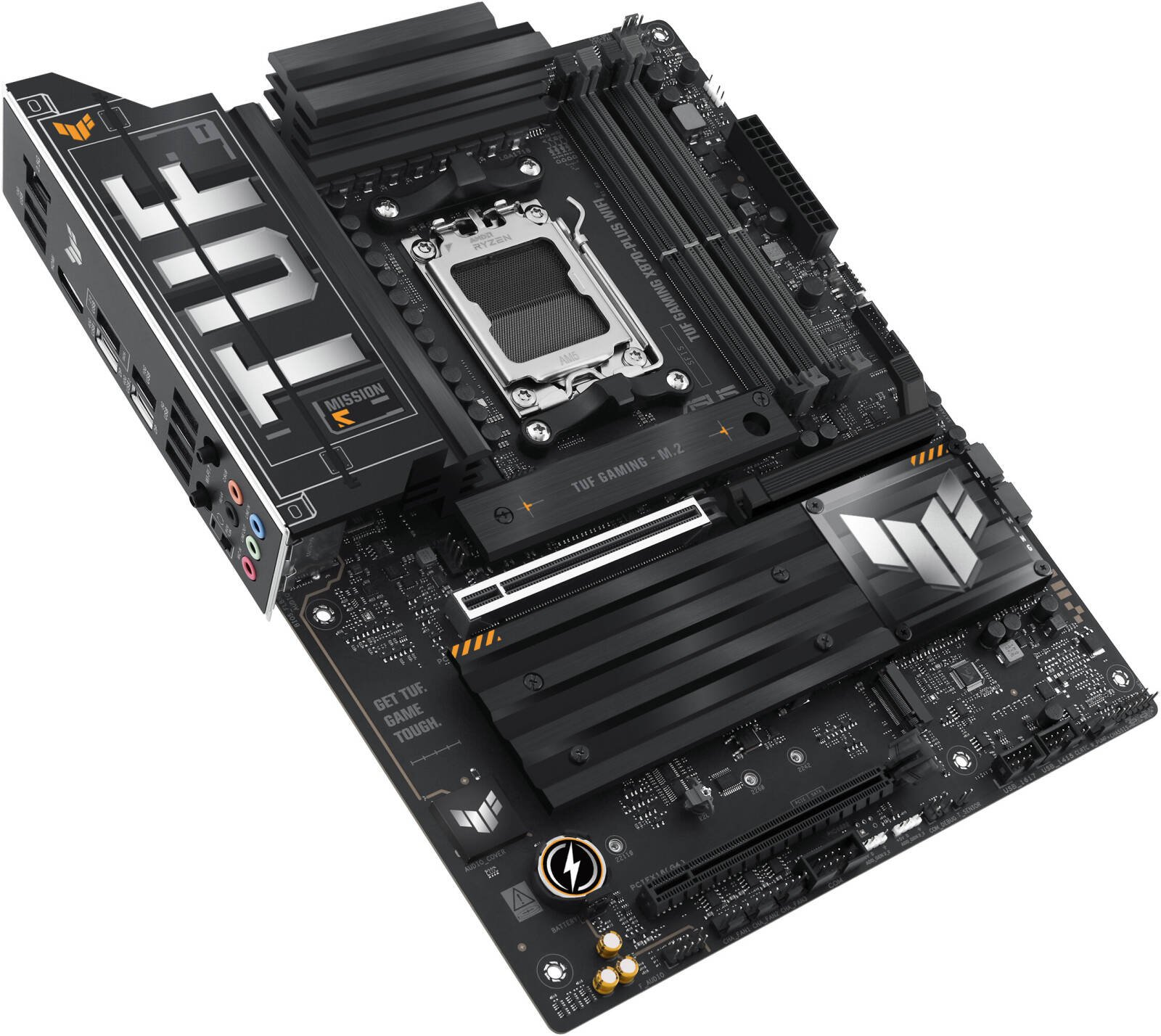

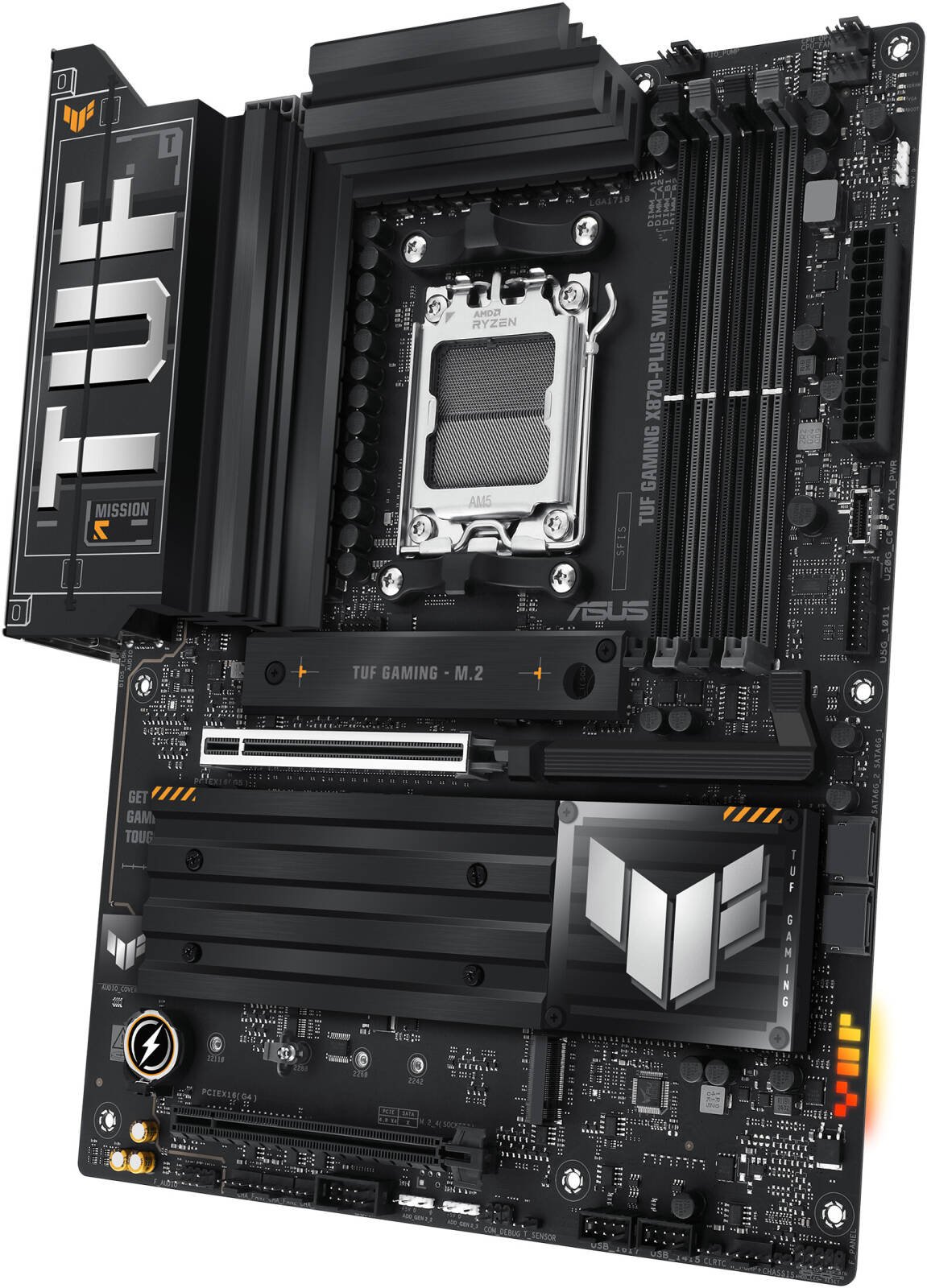

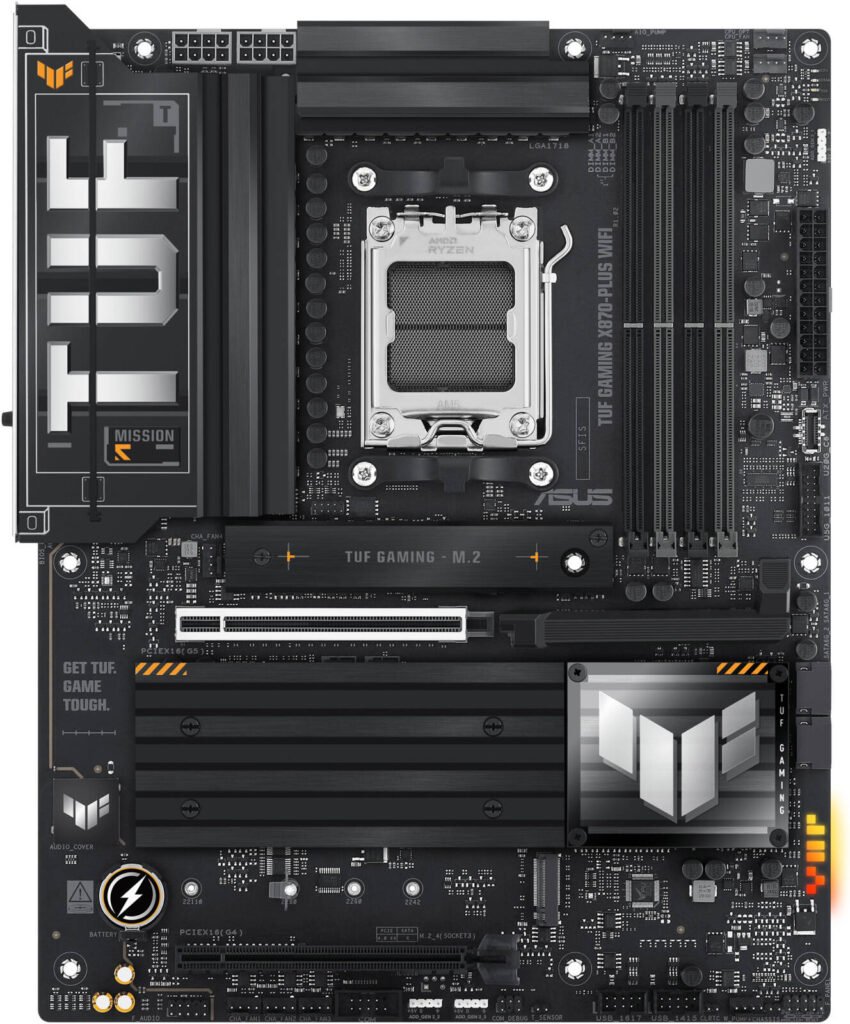

ASUS TUF Gaming X870-Plus WIFI AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, 1x Realtek 2.5Gb Ethernet

1.759,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 16+2+1 (80A) Premium power stages with enlarged VRM heatsinks
  • AI Solution AI Overclocking, AI Cooling II & AI Networking II
  • Overclocking Technologies Dynamic OC Switcher & Core Flex
  • 8000+ MT/s, AEMP Effortlessly apply to unleash performance
  • PCIe 5.0 for Graphics Card Robust to handle new data-heavy tasks
  • Empowering Connectivity USB4® 40Gbps & front USB 20Gbps Type-C® with PD fast charge support
  • DIY Friendly PCIe Slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED & BIOS Flashback™ Button
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset AMD X870 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel architecture
Supports AMD EXPO™ and AEMP
Graphics 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
Expansion Slots For Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode)<br>For Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)<br>For X870 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)***
Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
For Ryzen™ 9000 & 7000: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 5.0 x4)**
For Ryzen™ 8000: M.2_1 (PCIe 4.0 x4), M.2_2 not supported
For X870: M.2_3 & M.2_4 (PCIe 4.0)
Ethernet 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth Wi-Fi 7* (2x2 Wi-Fi 7, 802.11be), Bluetooth® v5.4***
USB Rear USB (Total 10 ports): 2 x USB4® (40Gbps), 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0
Front USB (Total 7 ports): 1 x USB 20Gbps, 1 x USB 5Gbps, 2 x USB 2.0 headers
Audio Realtek ALC1220P 7.1 Surround Sound CODEC
High quality 120 dB SNR playback, 113 dB SNR recording (Line-in)
Supports up to 32-Bit/192 kHz playback*

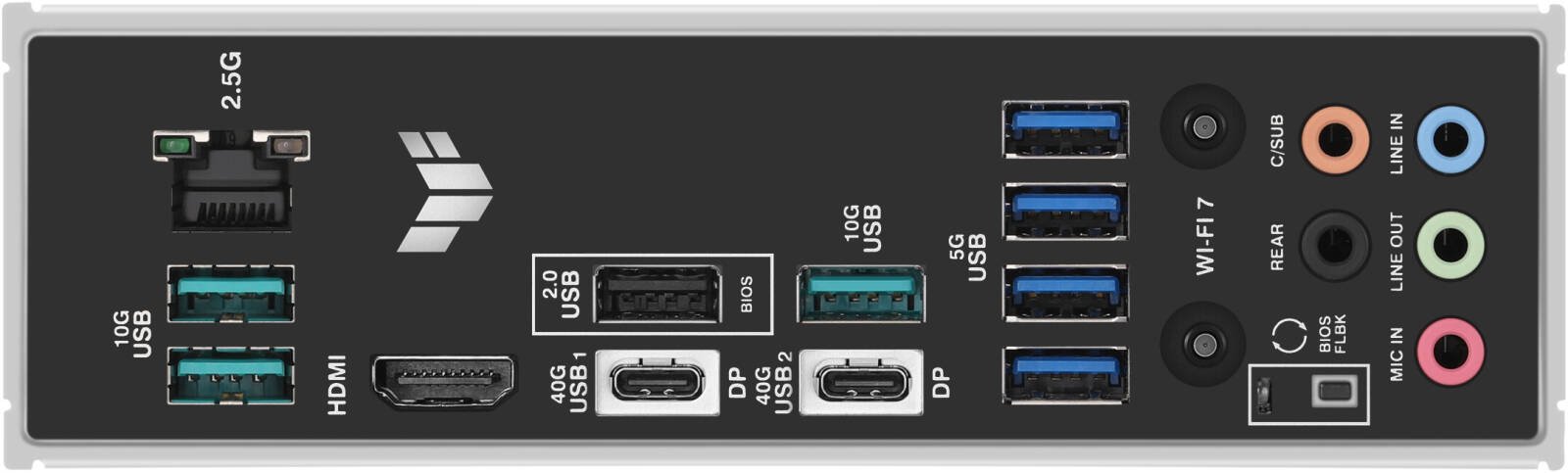

Back Panel I/O Ports 2 x USB4® (40Gbps), 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x BIOS FlashBack™ button
Internal I/O Connectors Fan/Cooling: 1 x CPU Fan header, 4 x Chassis Fan headers
Power: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Storage: 4 x M.2 slots, 2 x SATA 6Gb/s ports
Special Features ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
Software Features ASUS Exclusive Software (Armoury Crate, Aura Creator, etc.), UEFI BIOS, AI Overclocking Guide
Manageability WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 1 x TUF GAMING sticker
Documentation 1 x Quick start guide
Operating System Windows 11
Form Factor ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
