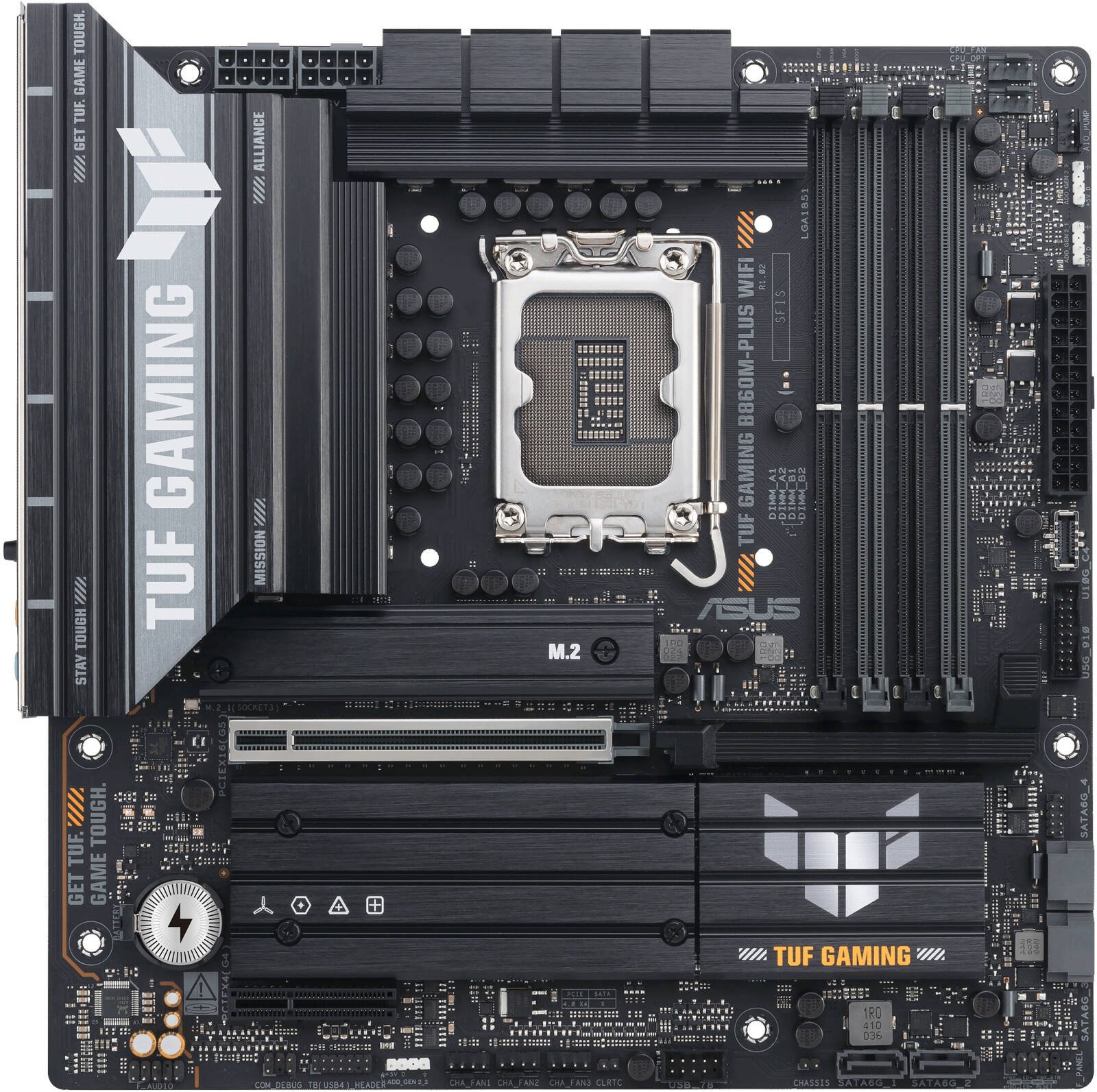

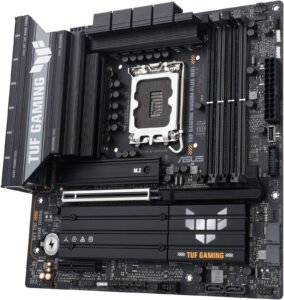

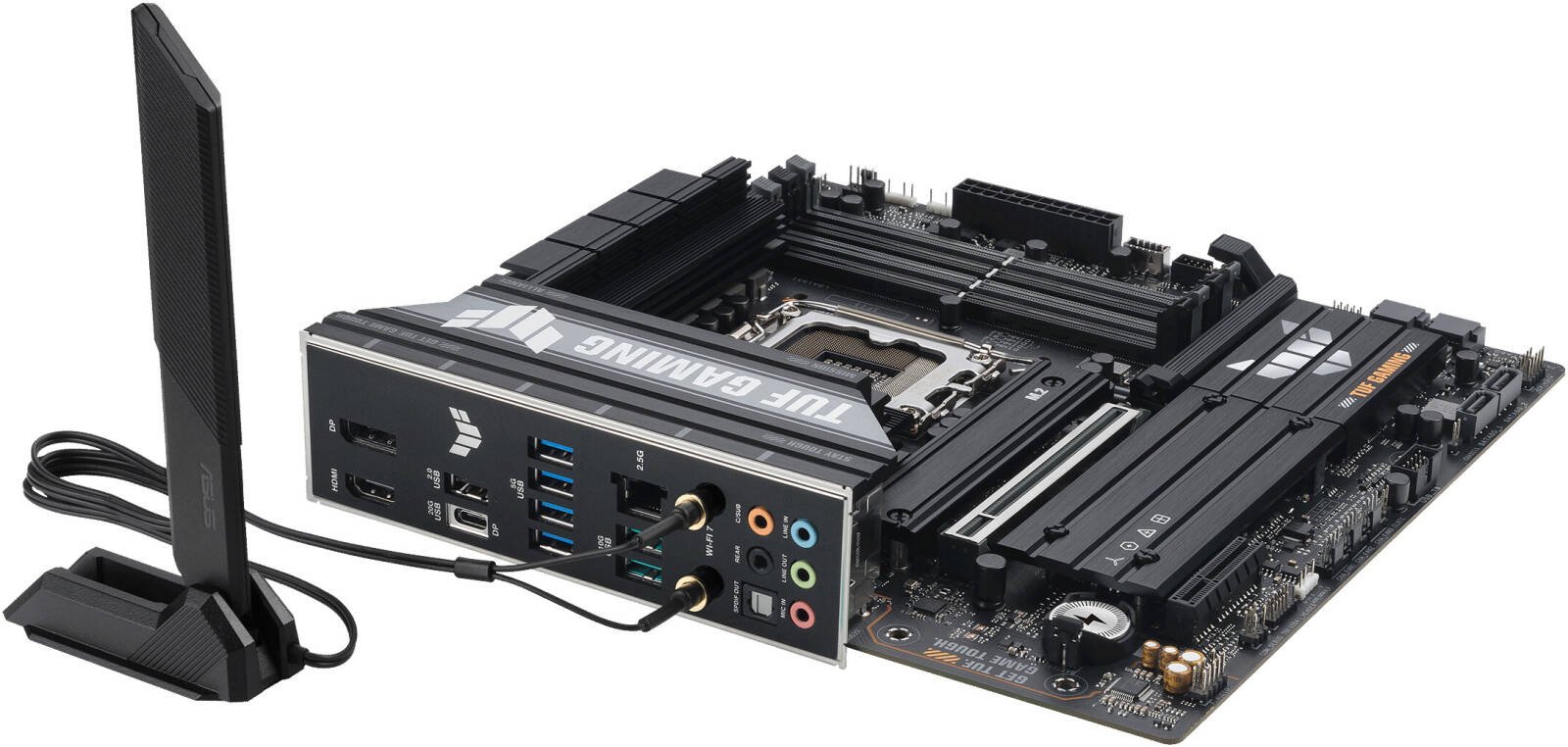

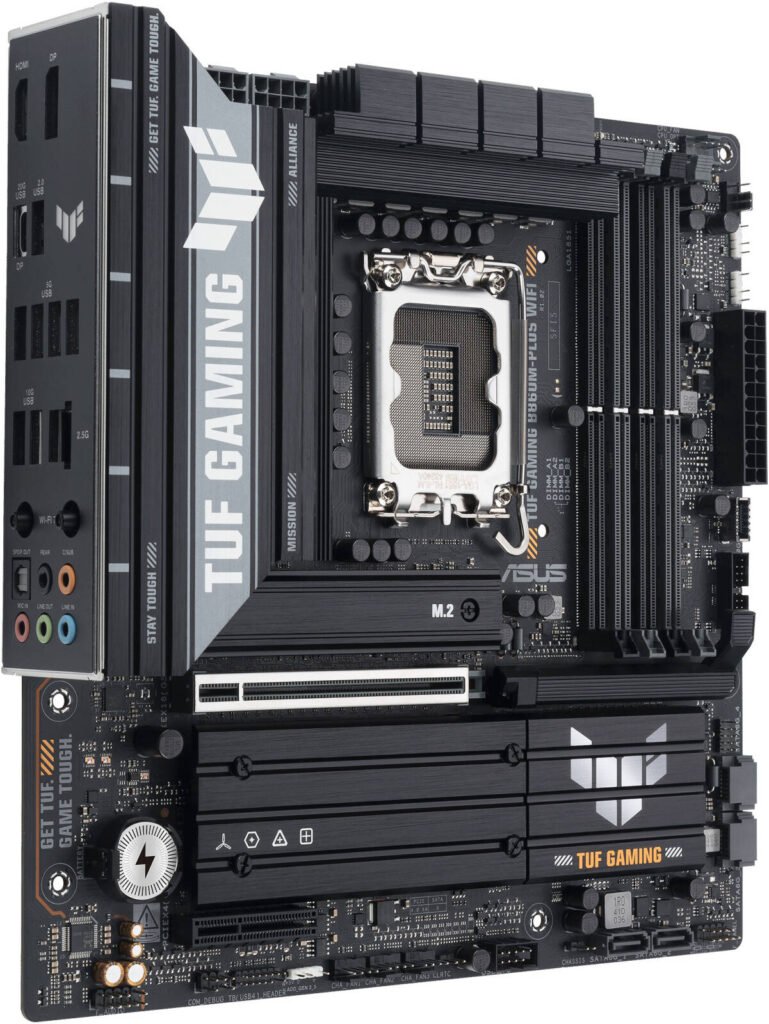

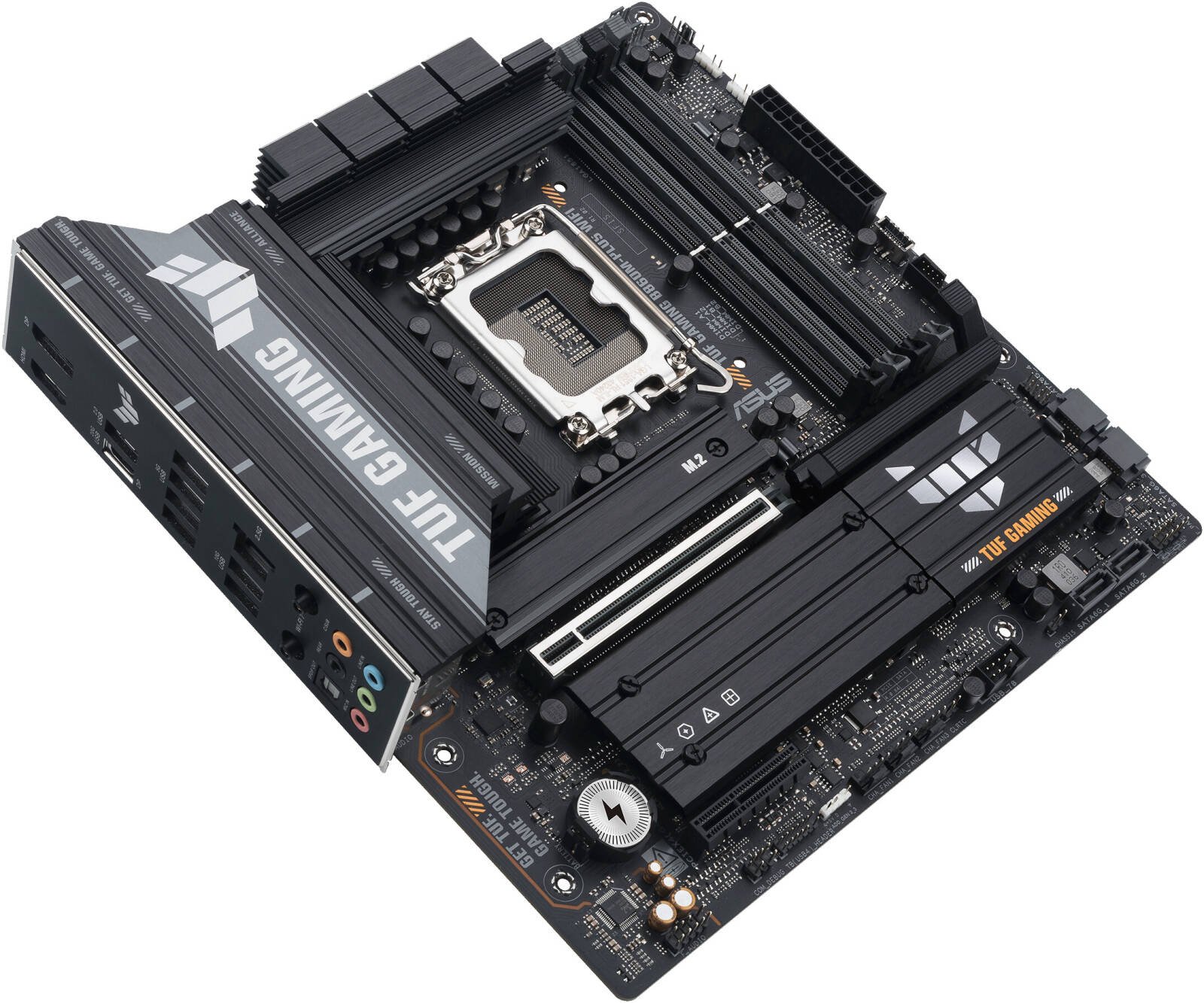

ASUS TUF Gaming B860M-Plus WiFi LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 2x M.2 Slots, WiFi & BT

966,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 12+1+2+1 (80A), DrMOS Premium power stages with enlarged VRM heatsinks
  • 8800+ MT/s, AEMP III, DIMM Fit Effortlessly apply to unleash performance
  • NPU Boost The BIOS feature overclocks the NPU with just one click
  • PCIe 5.0 for Graphics Card Supports next-gen graphics cards and is robust for handling data-heavy tasks
  • Empowering Connectivity Rear USB 20Gbps Type-C® & front USB 10Gbps Type-C®
  • Ultrafast Networking WiFi 7 with ASUS WiFi Q-Antenna
  • 2.5Gb Ethernet Faster data transfer
Model TUF GAMING B860M-PLUS WIFI
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to ASUS support for the CPU support list.
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III (AEMPIII)
Graphics 1 x DisplayPort (max. 4K@60Hz)
1 x HDMI™ port (max. 4K@60Hz)
1 x USB 20Gbps (Type-C®) supports DisplayPort video output
Expansion Slots Intel® Core™ Ultra Processors: 1 x PCIe 5.0 x16 slot
Intel® B860 Chipset: 1 x PCIe 4.0 x4 slot
Storage 3 x M.2 slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4)
4 x SATA 6Gb/s ports
Supports RAID 0/1/5/10
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth Wi-Fi 7 (2x2), supports 2.4/5/6GHz
Bluetooth v5.4
USB Rear: 1 x USB 20Gbps (Type-C®), 2 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 1 x USB 2.0 (Type-A)
Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports up to 24-bit/192 kHz playback
Audio shielding and premium capacitors, rear optical S/PDIF out

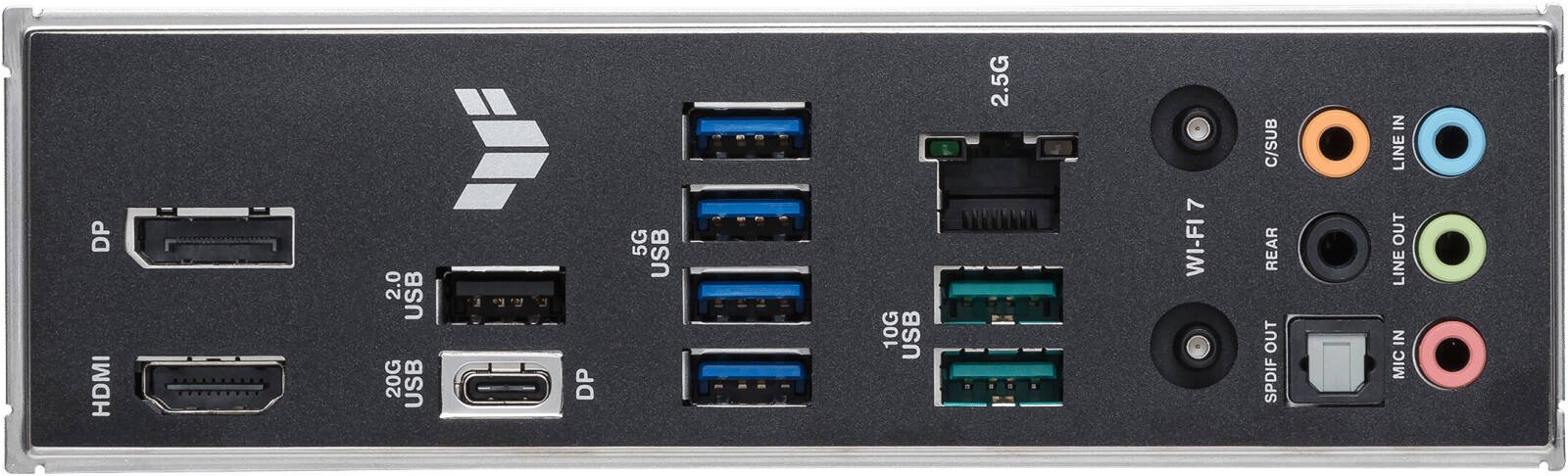

Back Panel I/O Ports 1 x USB 20Gbps (Type-C® with DP Alt mode), 2 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 1 x USB 2.0 (Type-A)
1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet
5 x Audio jacks, 1 x Optical S/PDIF out
Internal I/O Connectors 4-pin headers for CPU/Chassis fans and AIO pump, power connectors, M.2 slots, SATA ports, USB headers, RGB headers, and system panel headers
Special Features ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot, etc.)
ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, etc.)
ASUS Thermal Solution (VRM heatsinks, M.2 heatsinks)
AURA Sync (Addressable Gen 2 headers)
Software Features Armoury Crate (AURA Creator, Fan Xpert 2+)
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Supports ASUS EZ DIY features (EZ Flash, CrashFree BIOS 3, etc.)

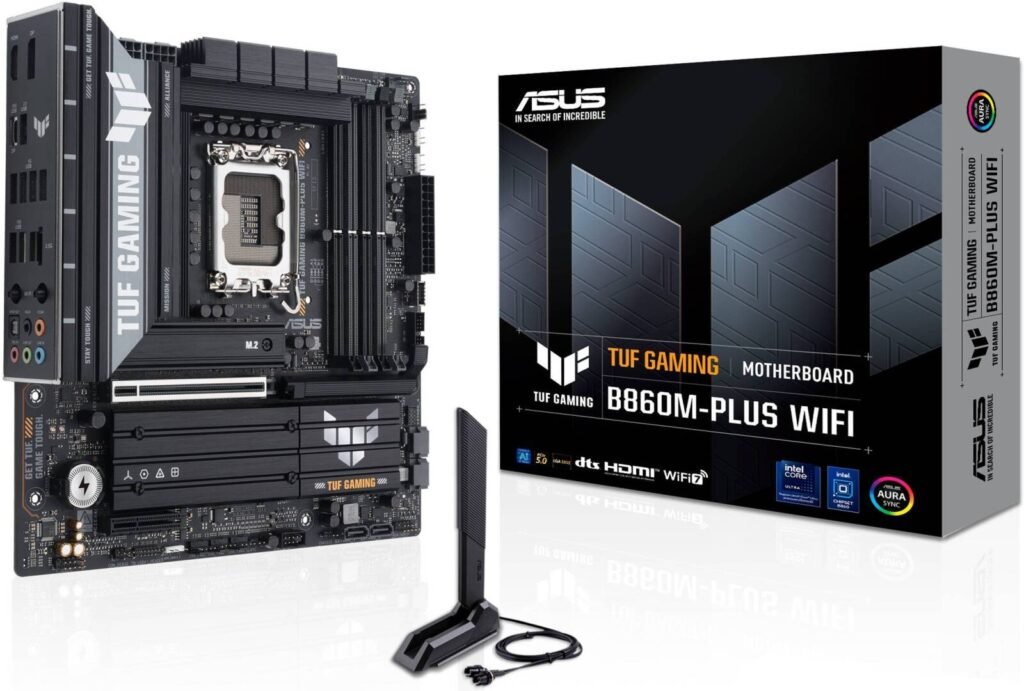

Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x M.2 SSD screw package, 1 x Quick start guide
Operating System Windows 11 (22H2 & later)
Form Factor mATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
