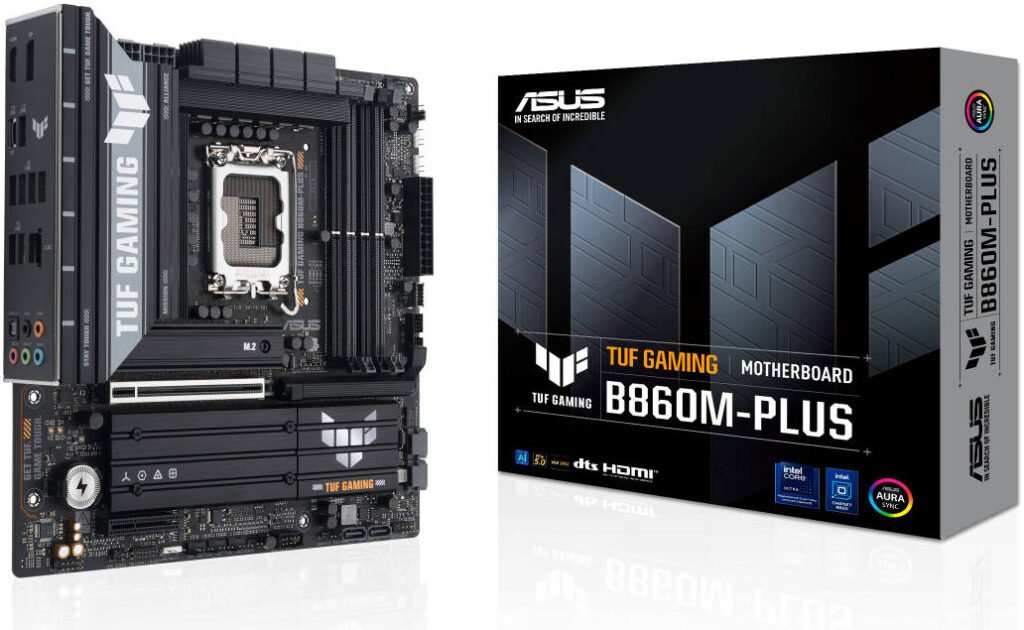

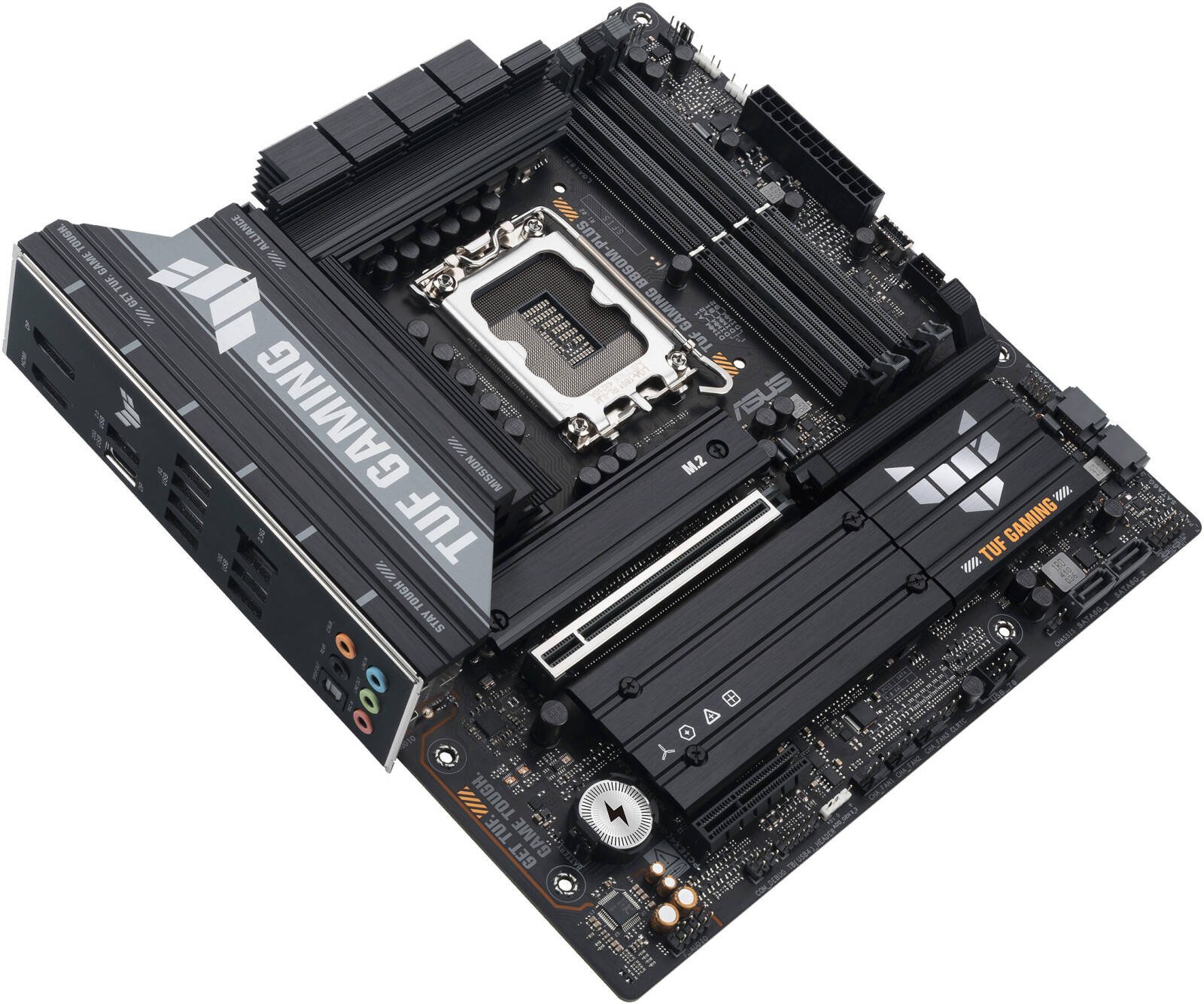

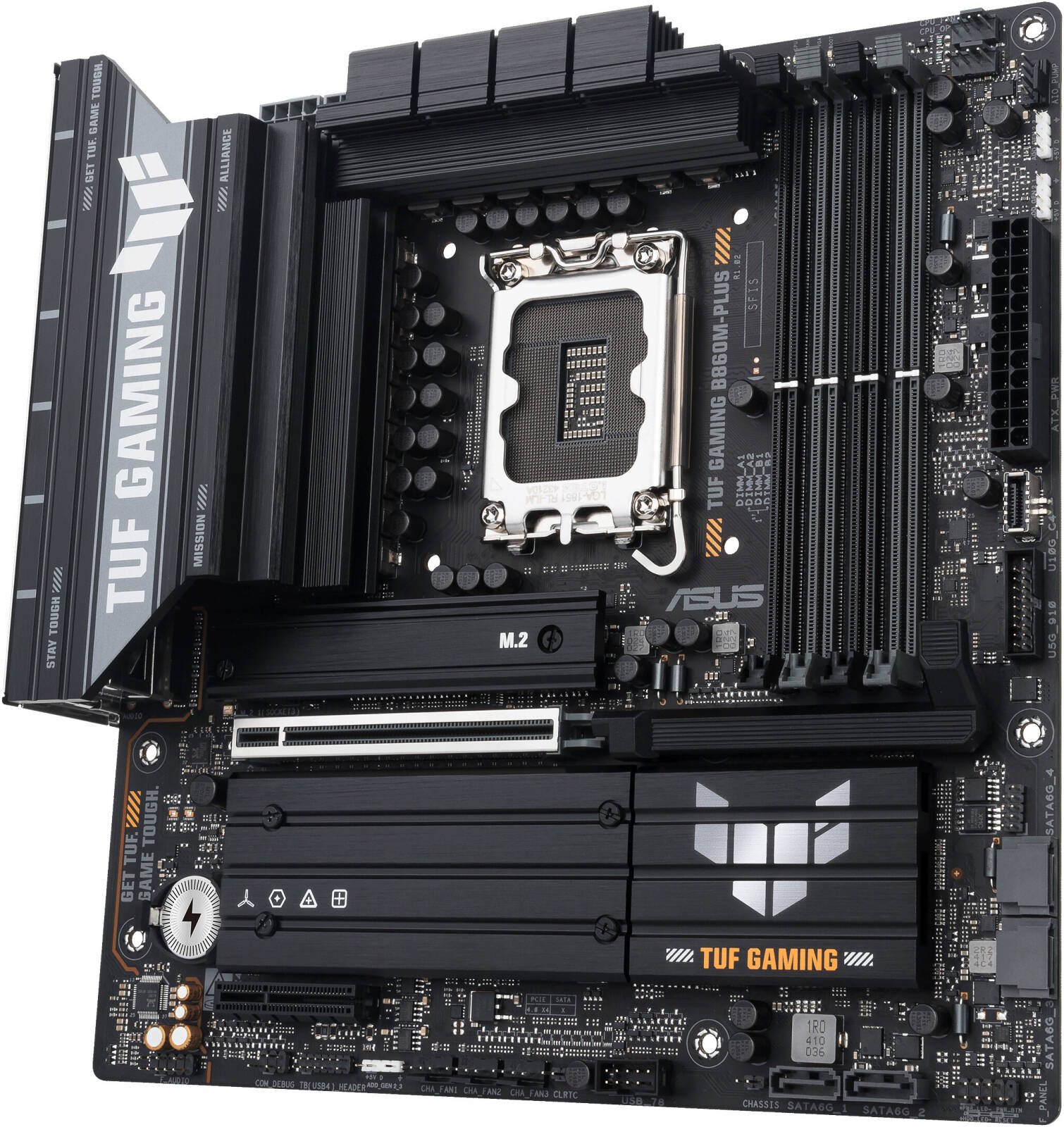

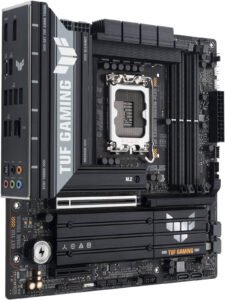

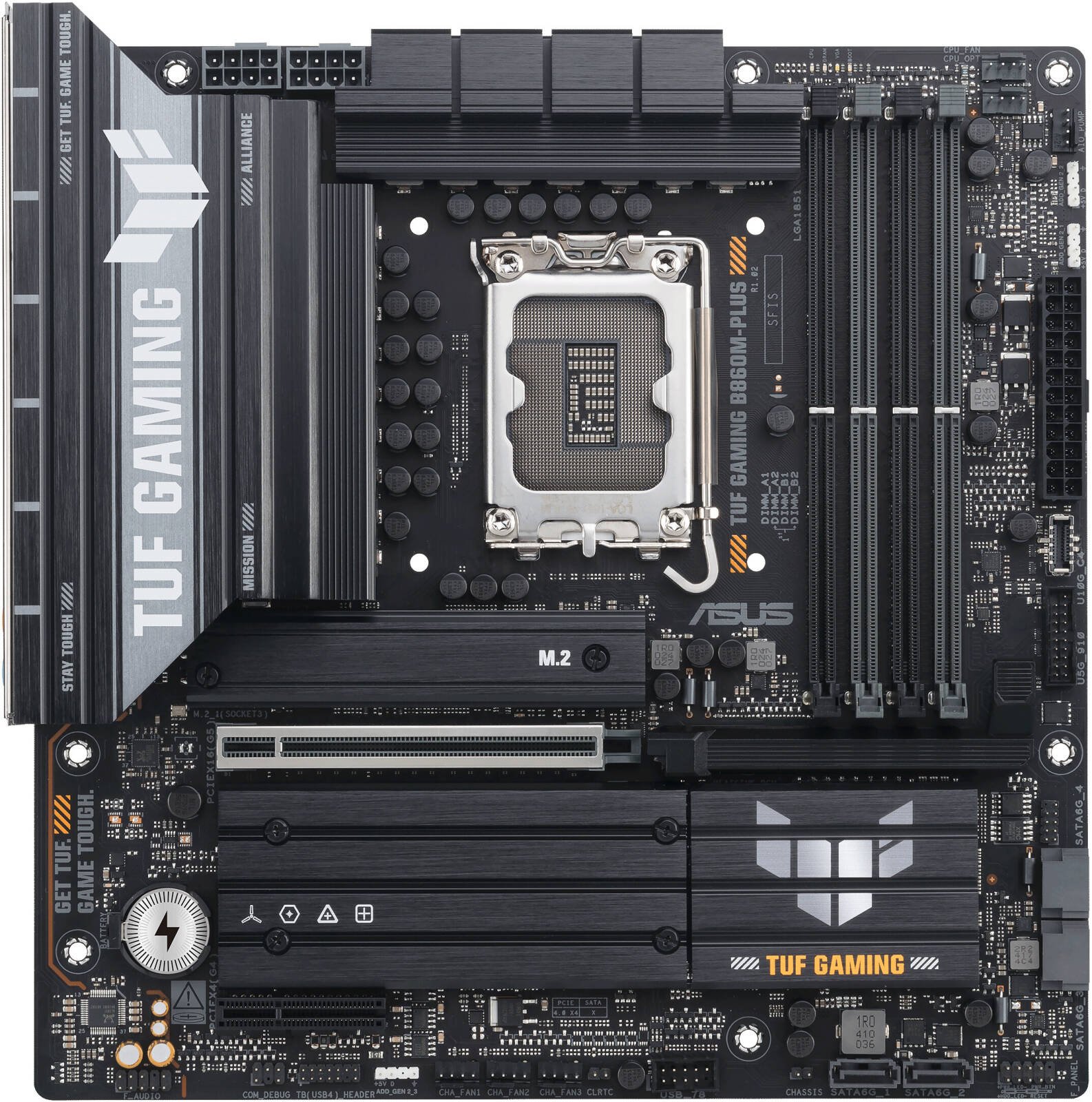

ASUS TUF Gaming B860M-Plus LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 3x M.2 Slots

875,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 12+1+2+1 (80A), DrMOS Premium power stages with enlarged VRM heatsinks
  • 8800+ MT/s, AEMP III, DIMM Fit Effortlessly apply to unleash performance
  • NPU Boost The BIOS feature overclocks the NPU with just one click
  • PCIe 5.0 for Graphics Card Supports next-gen graphics cards and is robust for handling data-heavy tasks
  • Empowering Connectivity Rear USB 20Gbps Type-C® & front USB 10Gbps Type-C®
  • DIY Friendly PCIe Slot Q-Release, Pre-mounted I/O shield, M.2 Q-Latch, Q-LED
  • 2.5Gb Ethernet Faster data transfer
Model TUF GAMING B860M-PLUS
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851. Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB DDR5, up to 8800+MT/s (OC), Non-ECC, un-buffered. Supports XMP, AEMP III.
Graphics 1 x DisplayPort (4K@60Hz), 1 x HDMI™ port (4K@60Hz), 1 x USB Type-C® with DisplayPort output.
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 (Intel® B860 Chipset).
Storage 3 x M.2 slots (PCIe 5.0/4.0 x4 modes), 4 x SATA 6Gb/s ports. Supports Intel® Rapid Storage Technology.
Ethernet 1 x Realtek 2.5Gb Ethernet, TUF LANGuard.
Wireless & Bluetooth Wi-Fi 7 (802.11be), supports 2.4/5/6GHz bands, Bluetooth® v5.4.
USB Rear: 1 x USB 20Gbps (Type-C®), 2 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0. Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header.
Audio Realtek 7.1 Surround Sound HD Audio CODEC, supports up to 24-bit/192kHz playback, with premium features.
Back Panel I/O USB Type-C®, USB Type-A, HDMI™, DisplayPort, Ethernet, Audio jacks, Optical S/PDIF.
Internal I/O Headers for USB, fans, M.2, SATA, Thunderbolt™, audio, and RGB.
Special Features TUF Protection (DIGI+ VRM, SafeSlot, LANGuard), ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release), AURA Sync.
Software Features Armoury Crate, Fan Xpert 2+, Norton 360 (60-day trial), UEFI BIOS with ASUS EZ DIY features.
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS.
Manageability WOL by PME, PXE.
Accessories 2 x SATA cables, 2 x M.2 rubber packages, TUF Gaming sticker, M.2 screw package, quick start guide.
Operating System Windows® 11, Windows® 10 64-bit.
Form Factor mATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm).
