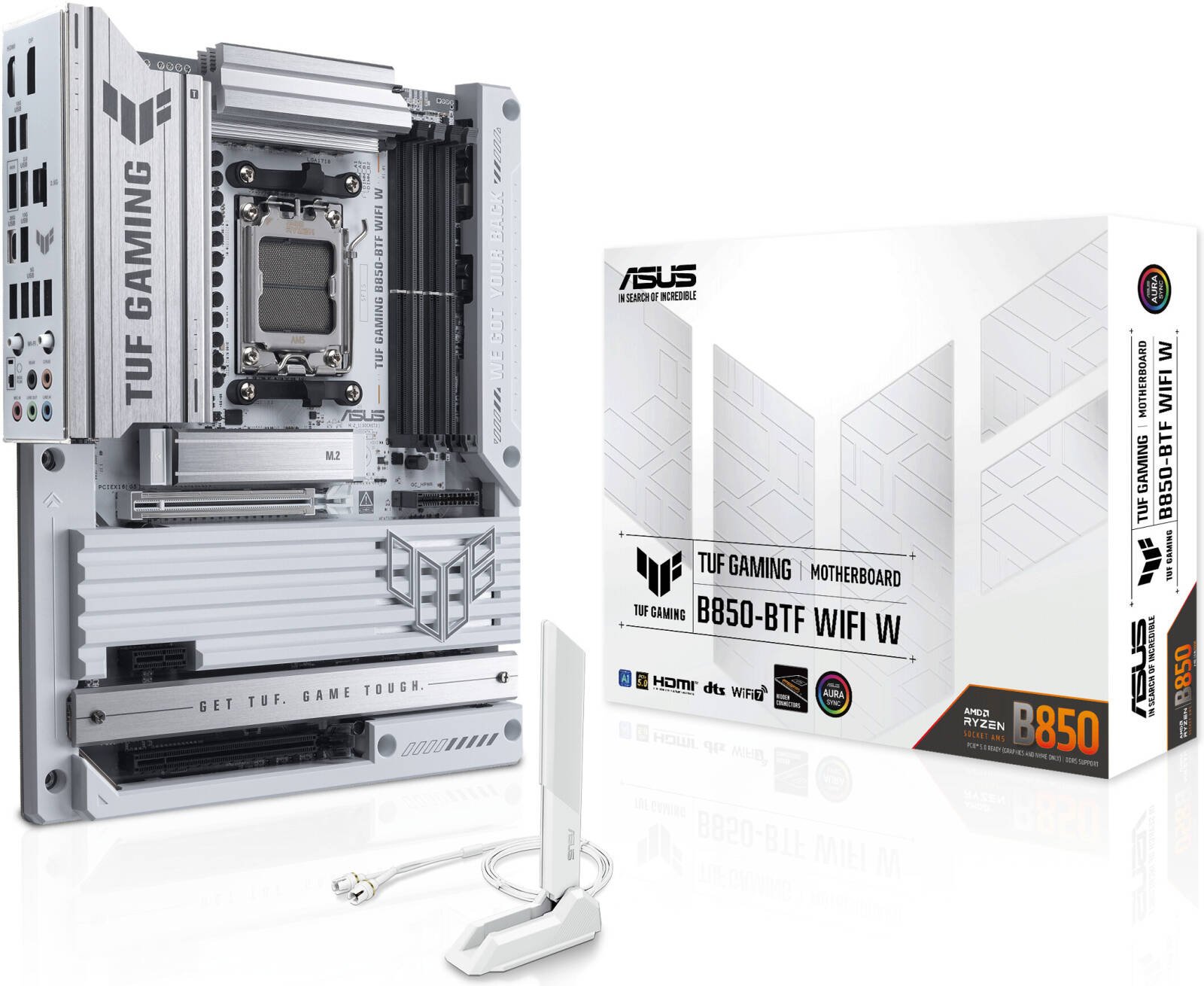

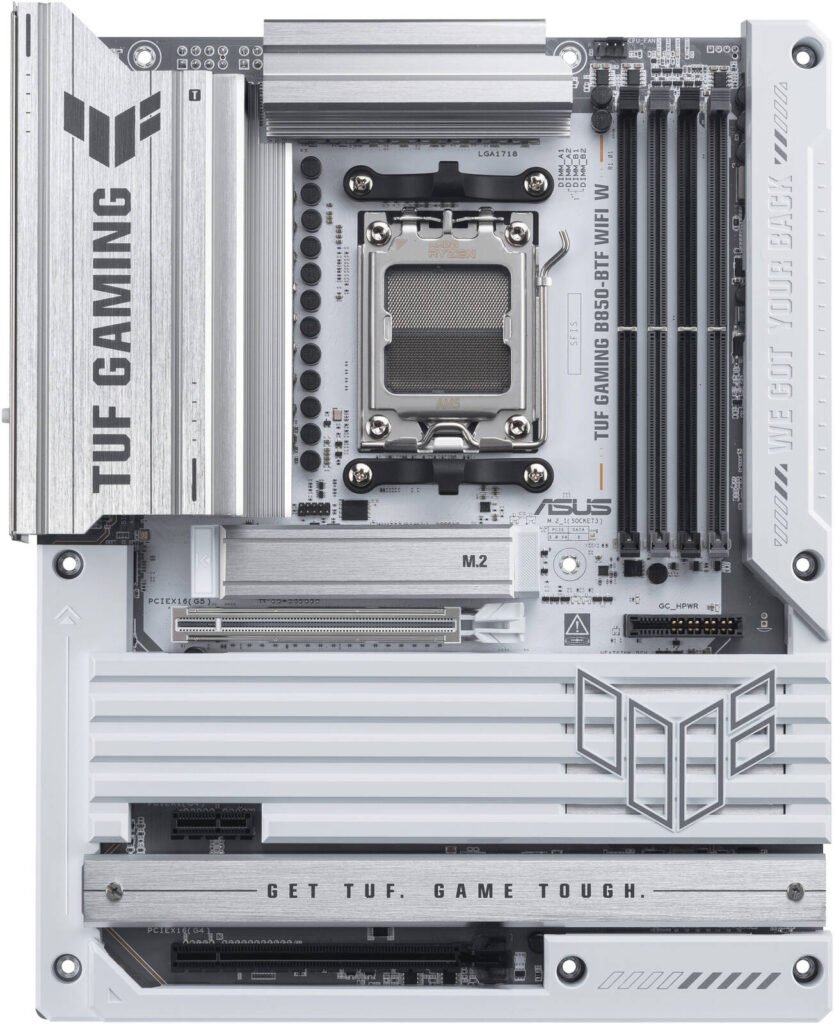

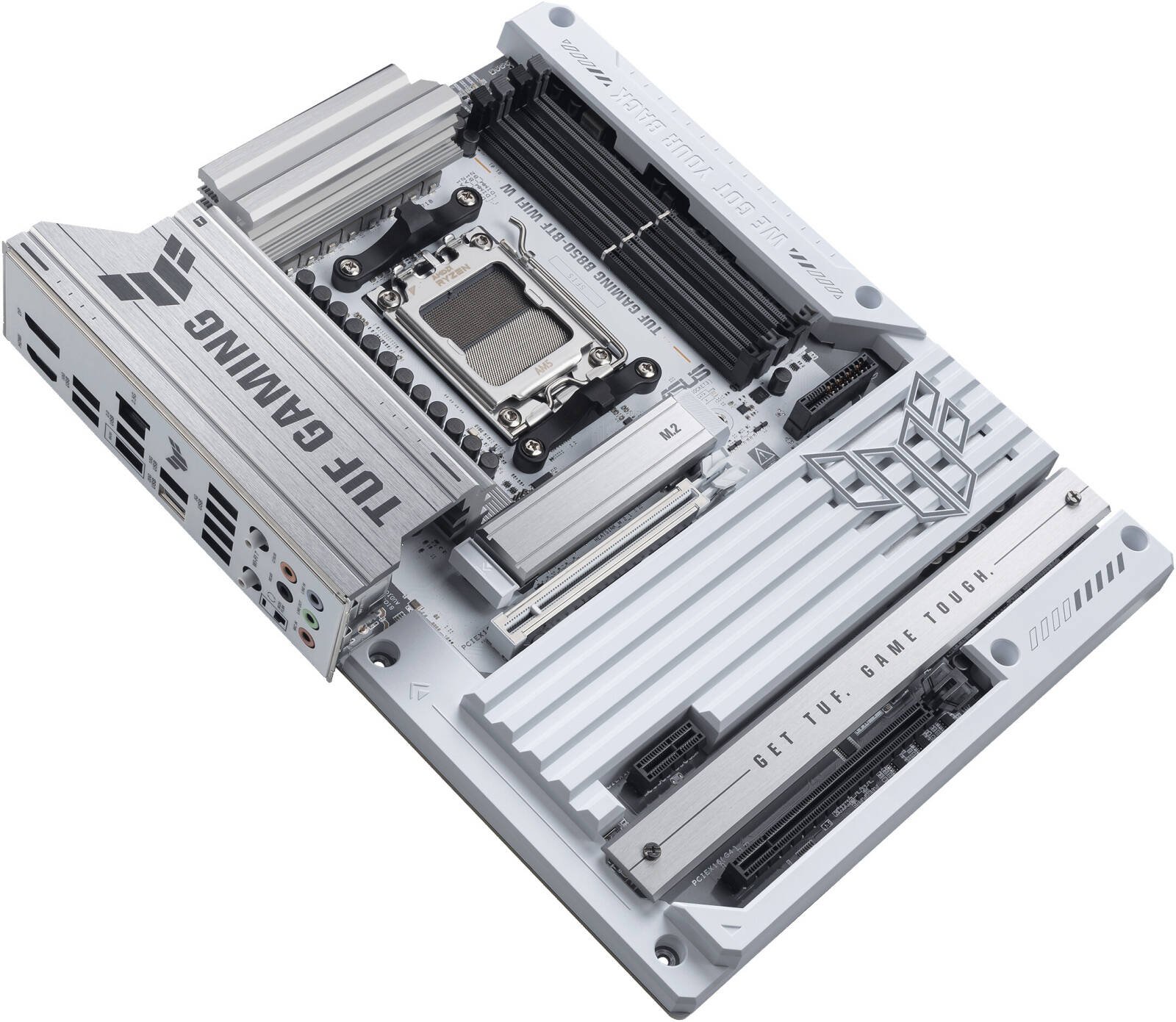

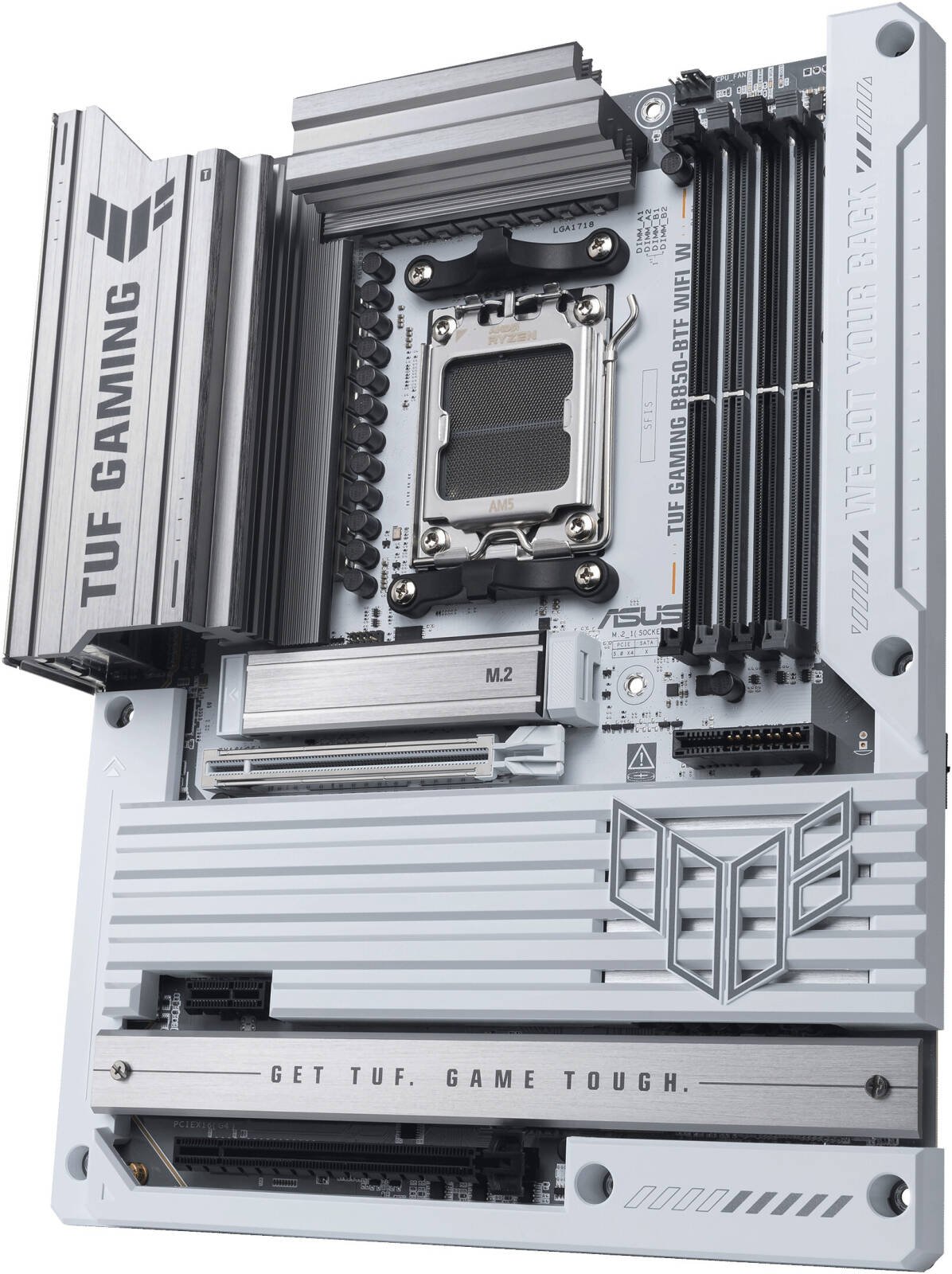

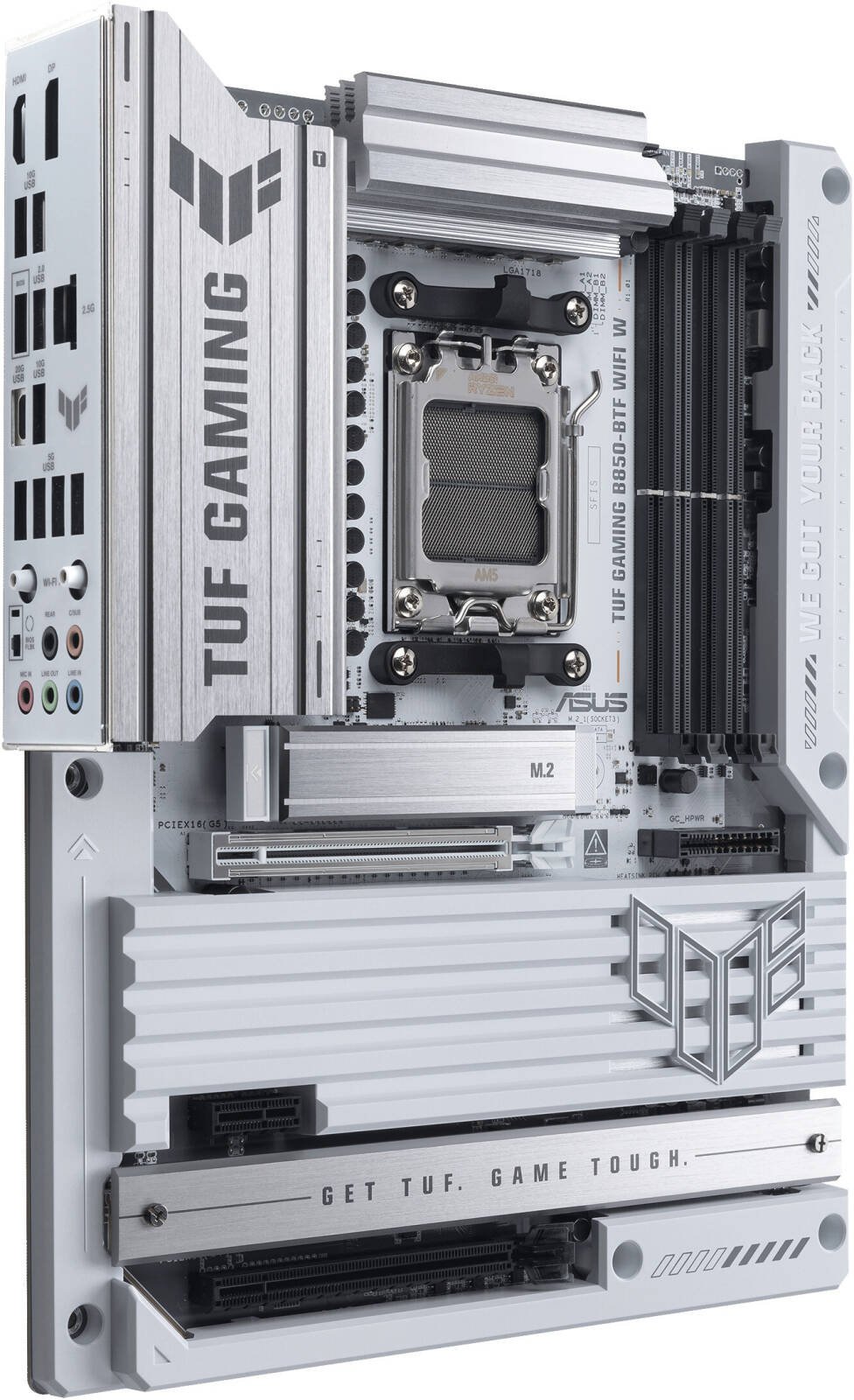

ASUS TUF GAMING B850-BTF WIFI W AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1 x PCIe 5.0 x16, 3 x M.2 Slots

999,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • AMD Socket AM5 support for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
  • Based on the AMD B850 chipset.
  • Memory support: 4 DIMM slots, maximum 256GB DDR5, supporting up to 8000+ MT/s (OC) speeds with AMD Ryzen 9000, 8000, and 7000 series CPUs. Supports ECC and non-ECC unbuffered DIMM, AMD EXPO™ profiles, and ASUS Enhanced Memory Profile (AEMP).
  • PCIe 5.0 ready with a graphics card high-power slot supporting up to 600W for BTF graphics cards, facilitating clean cable management.
  • Storage: Three M.2 slots (PCIe 5.0 ready), and four SATA 6Gb/s ports.
  • Networking: Wi-Fi 7 (2×2, 802.11be) supporting 2.4/5/6 GHz bands and up to 2.9 Gbps transfer speeds, Bluetooth 5.4, and 1 x Realtek 2.5Gb Ethernet port with TUF LANGuard protection.
Model TUF GAMING B850-BTF WIFI W
News & Updates Visit ASUS Support
CPU AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Chipset AMD B850 Chipset
Memory 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC), Dual channel, ECC & Non-ECC, EXPO™, AEMP
Graphics 1 × DisplayPort (max 8K@30Hz), 1 × HDMI 2.1 (max 4K@60Hz), depends on CPU
Expansion Slots - Ryzen 9000 & 7000: 1 × PCIe 5.0 x16 (x16)
- Ryzen 8000: 1 × PCIe 4.0 x16 (x8/x4)
- Chipset: 1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x1
Storage 3 × M.2 (PCIe 5.0/4.0 depending on CPU)
4 × SATA 6Gb/s
RAID support varies by CPU
Ethernet 1 × Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth Wi-Fi 7 (2×2, 2.4/5/6GHz, up to 2.9Gbps), Bluetooth® v5.4
USB (Rear) 1 × USB 20Gbps Type-C
3 × USB 10Gbps Type-A
4 × USB 5Gbps Type-A
2 × USB 2.0 Type-A
USB (Front) 1 × USB 10Gbps Type-C
1 × USB 5Gbps header (2 ports)
2 × USB 2.0 headers (4 ports)
Audio Realtek ALC1220P 7.1 Surround, 32-Bit/192 kHz playback, premium audio capacitors, shielding

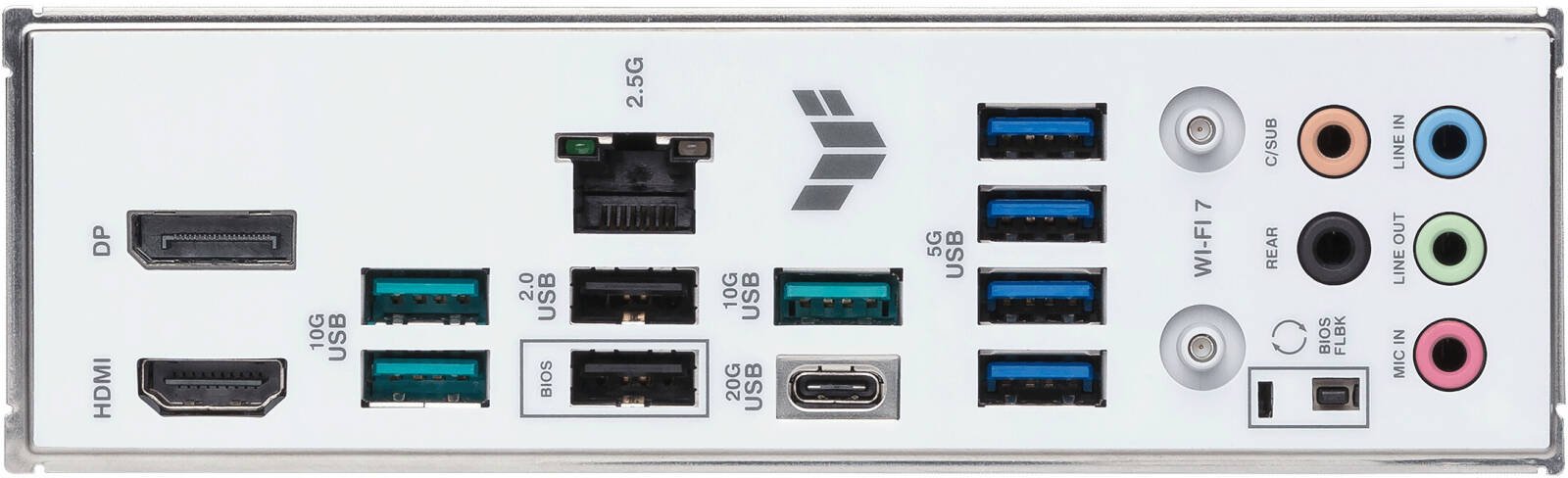

Back Panel I/O 1 × USB-C 20Gbps
3 × USB 10Gbps Type-A
4 × USB 5Gbps Type-A
2 × USB 2.0
1 × DisplayPort
1 × HDMI
1 × 2.5Gb Ethernet
5 × Audio jacks
1 × BIOS FlashBack™ button
Wi-Fi module
Internal I/O - Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan
- Power: 1 × 24-pin, 2 × 8-pin CPU
- Storage: 3 × M.2, 4 × SATA
- USB: 1 × USB-C 10Gbps, 1 × USB 5Gbps header, 2 × USB 2.0 headers
- Misc: RGB headers, CMOS, COM, Front Panel, Thunderbolt header
BTF Related 1 × 12V-2X6 Auxiliary Power connector
1 × Graphics Card High-Power slot
Special Features ASUS TUF Protection (DIGI+ VRM, ESD Guards, SafeSlot, etc.), ASUS Q-Design (Q-Release, Q-LED, Q-DIMM, etc.), Thermal solution (VRM & M.2 heatsinks), EZ DIY (BIOS FlashBack™, pre-mounted I/O shield, etc.), Aura Sync RGB
Software Features Armoury Crate, Aura Sync, Fan Xpert 4, AI Advisor, DriverHub, GlideX, TurboV Core, CPU-Z, DTS Audio, Adobe CC trial, Norton 360 trial, WinRAR trial
UEFI BIOS CrashFree BIOS 3, EZ Flash 3, MyHotkey, EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 2 × SATA cables, Wi-Fi antenna, TUF Gaming sticker, 2 × M.2 rubber packages, Quick Start Guide
Operating System Windows 11
Form Factor ATX, 30.5 cm × 24.4 cm (12" × 9.6")
