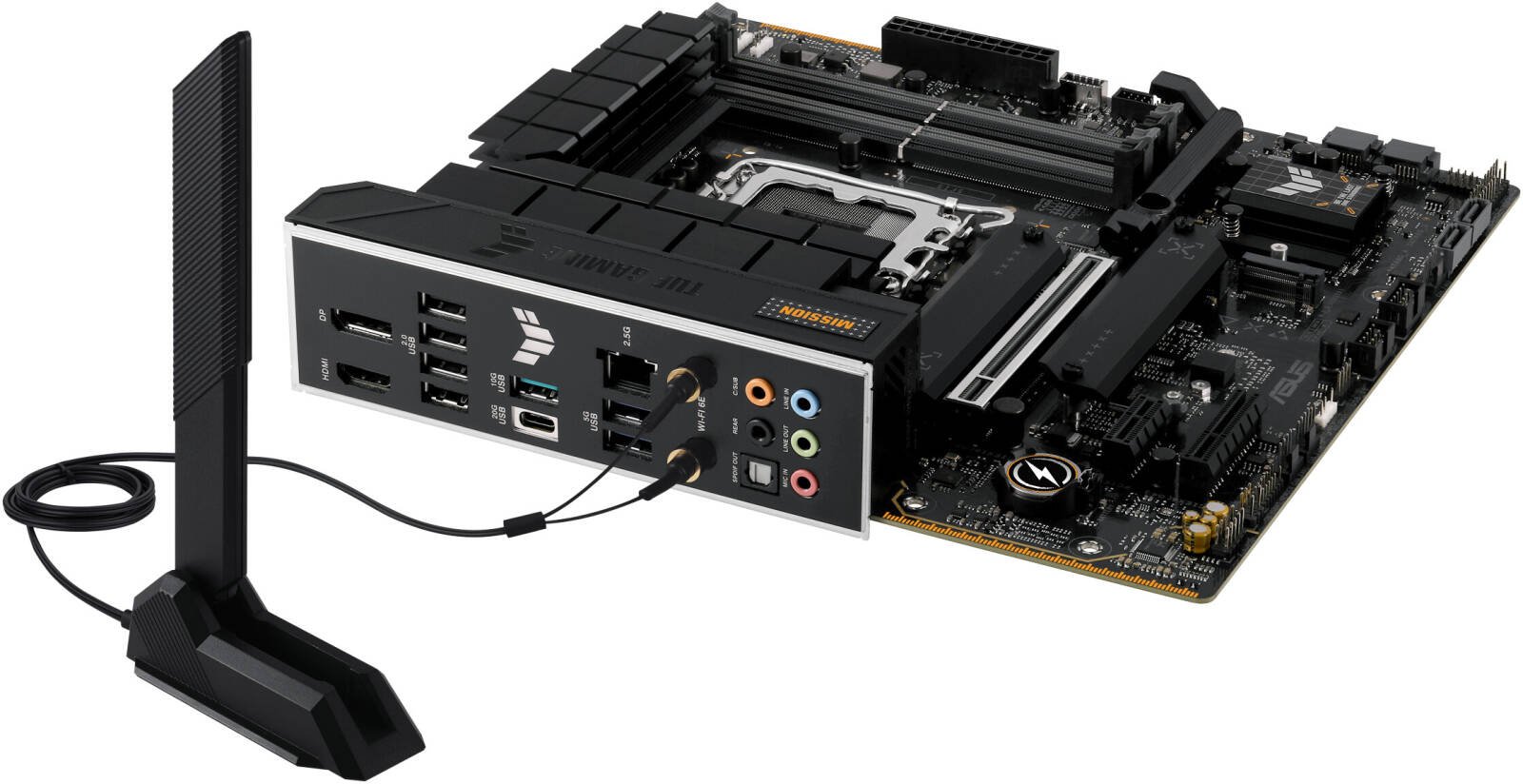

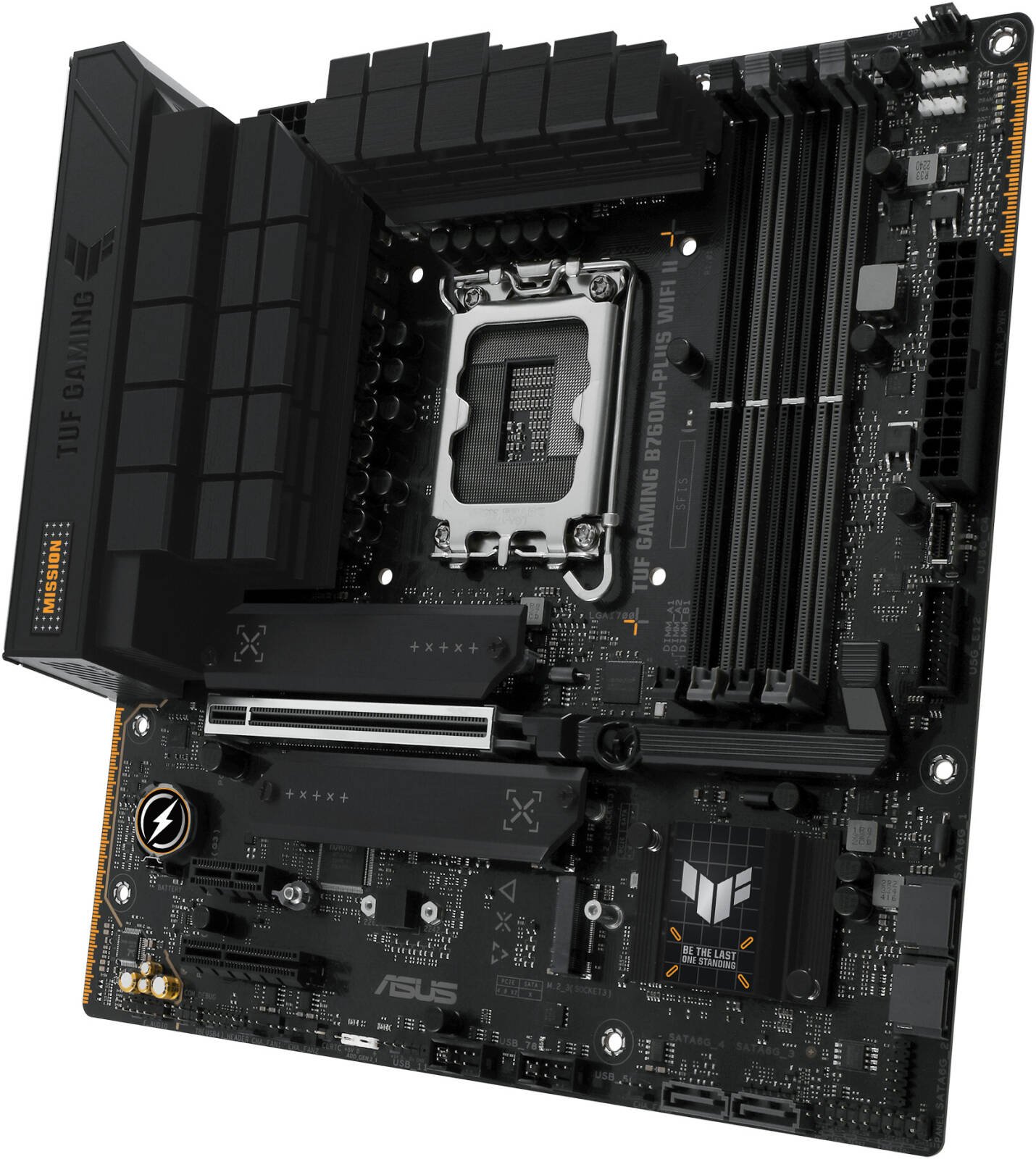

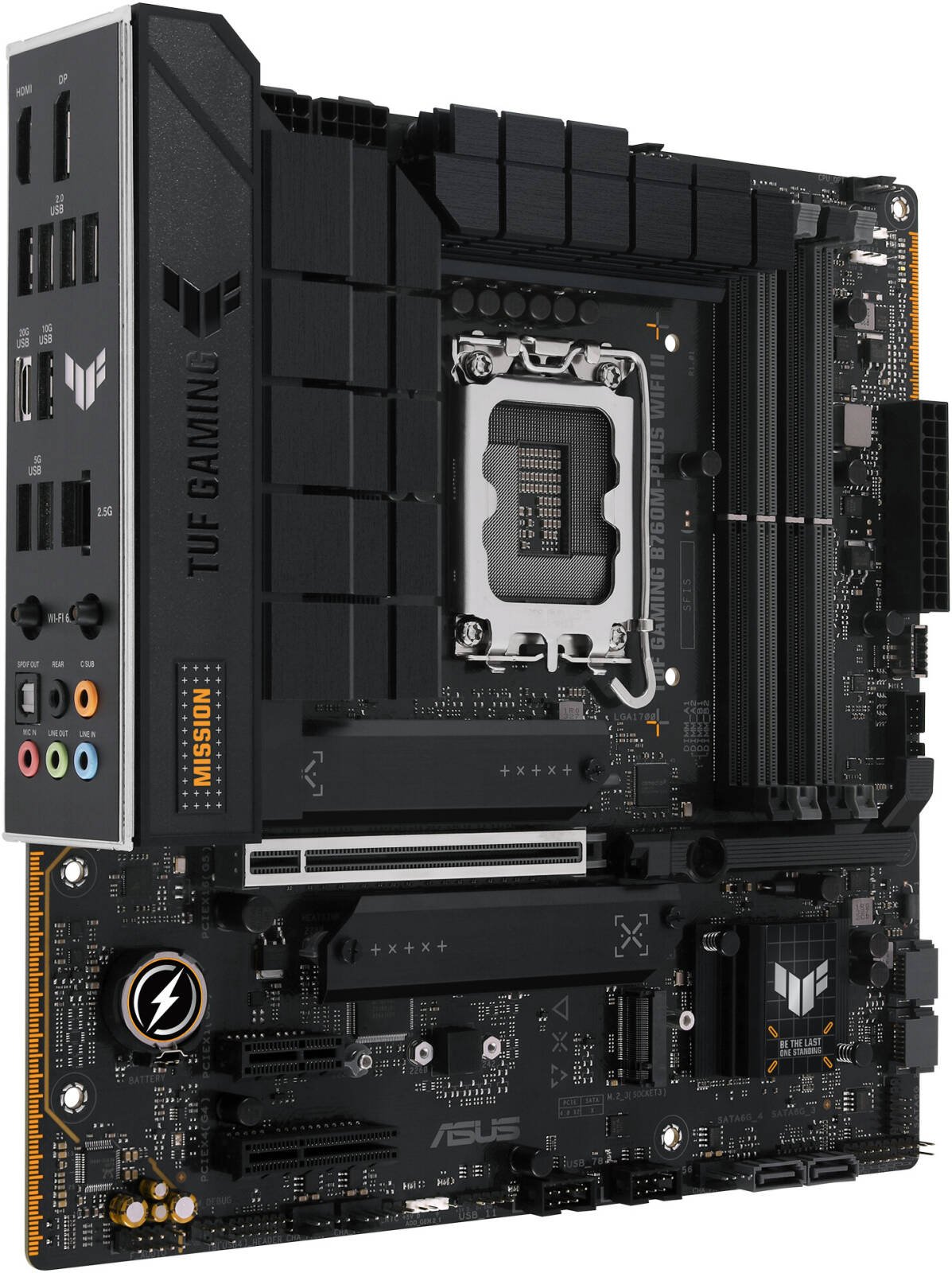

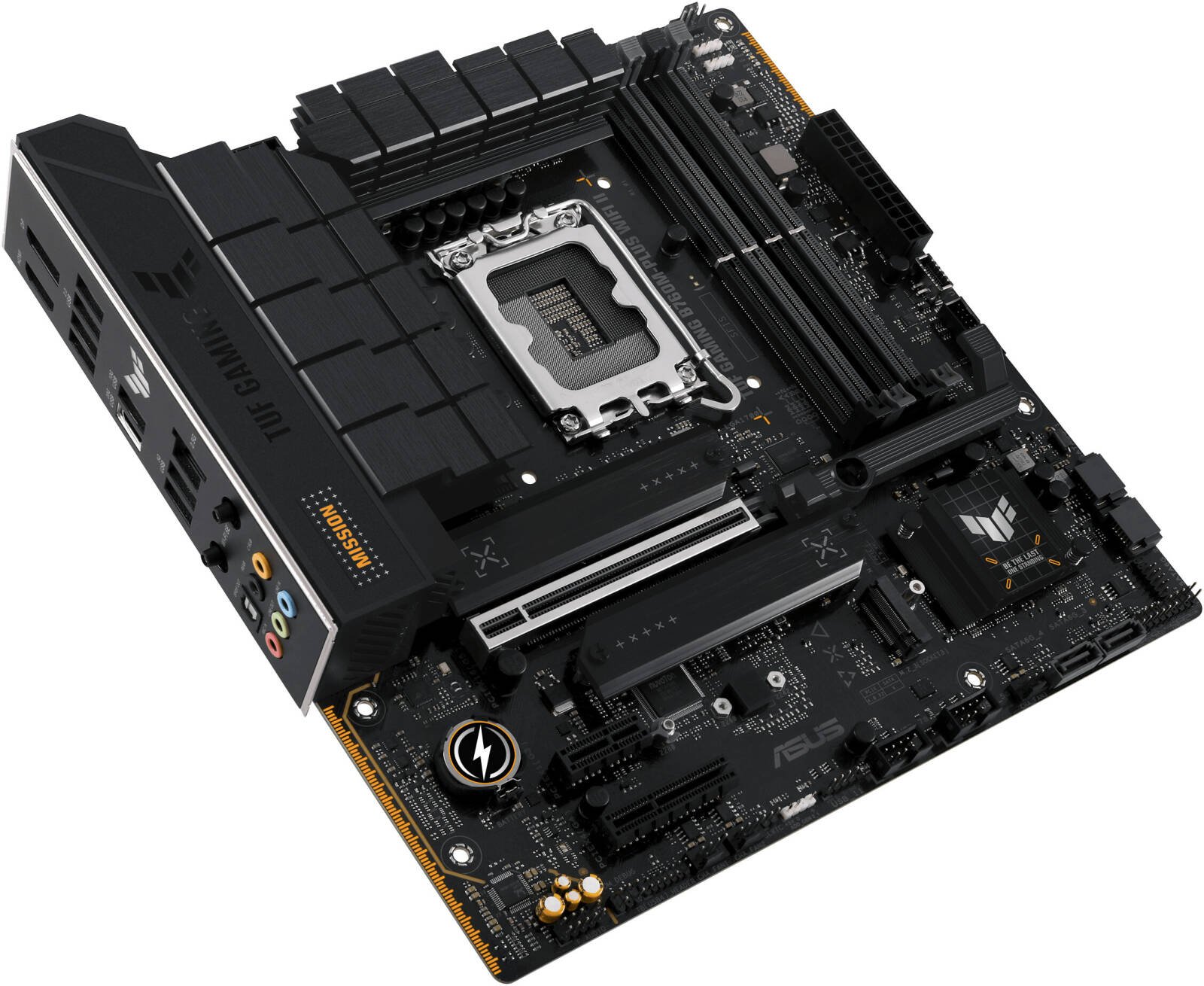

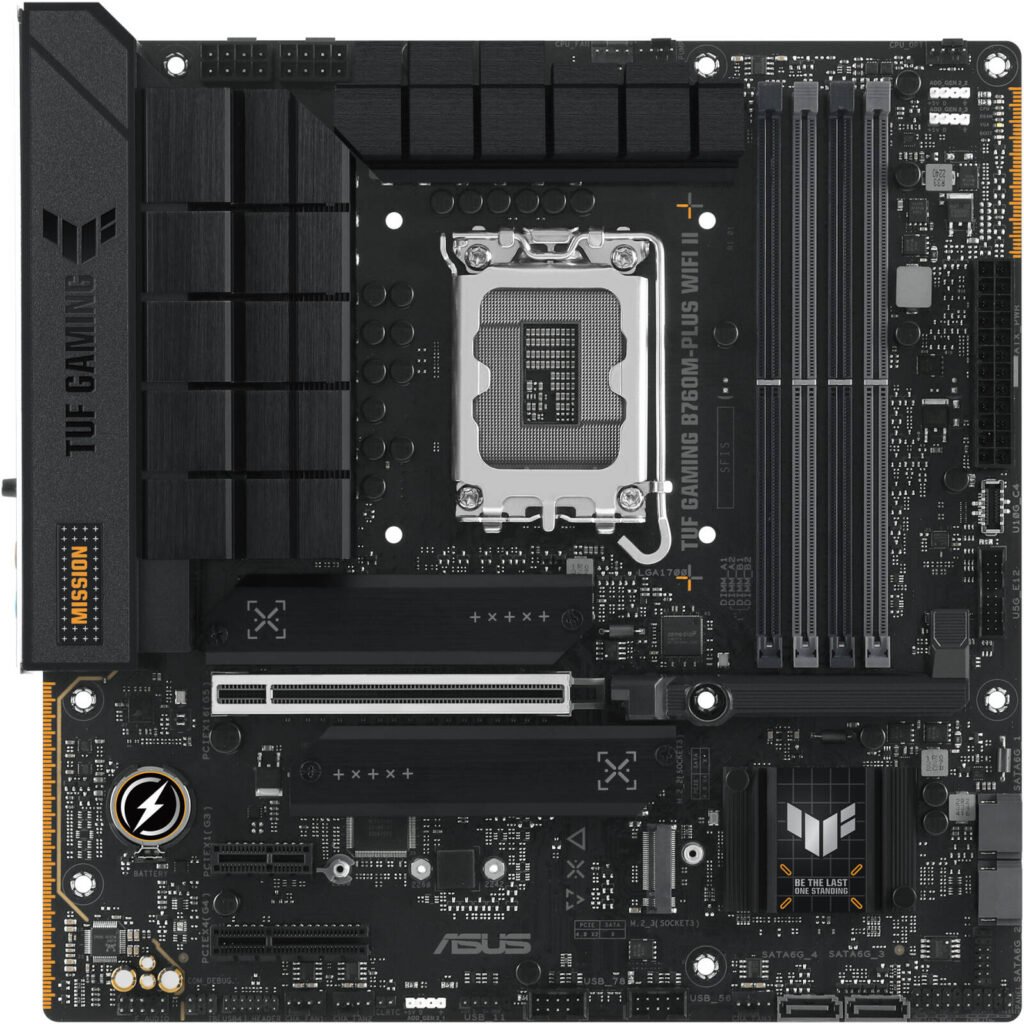

ASUS TUF Gaming B760M-Plus Wi-Fi II Micro-ATX LGA1700 Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, 3x M.2 Slots, 1x PCIe 5.0 x16 Slot, Wi-Fi 6E & BT v5.3

782,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • DDR5 memory module support
  • USB 20Gbps Type-C® and a front-panel USB 10Gbps Type-C® header
  • 2.5 Gb Ethernet
  • PCIe Q-Release
  • WiFi 6E with Q-Antenna
  • Two-Way AI Noise Cancelation
Model TUF GAMING B760M-PLUS WIFI II
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B760 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Graphics 1 x DisplayPort** 1 x HDMI™port***
Expansion Slots 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot
Storage 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3**
USB (Rear) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
USB (Front) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

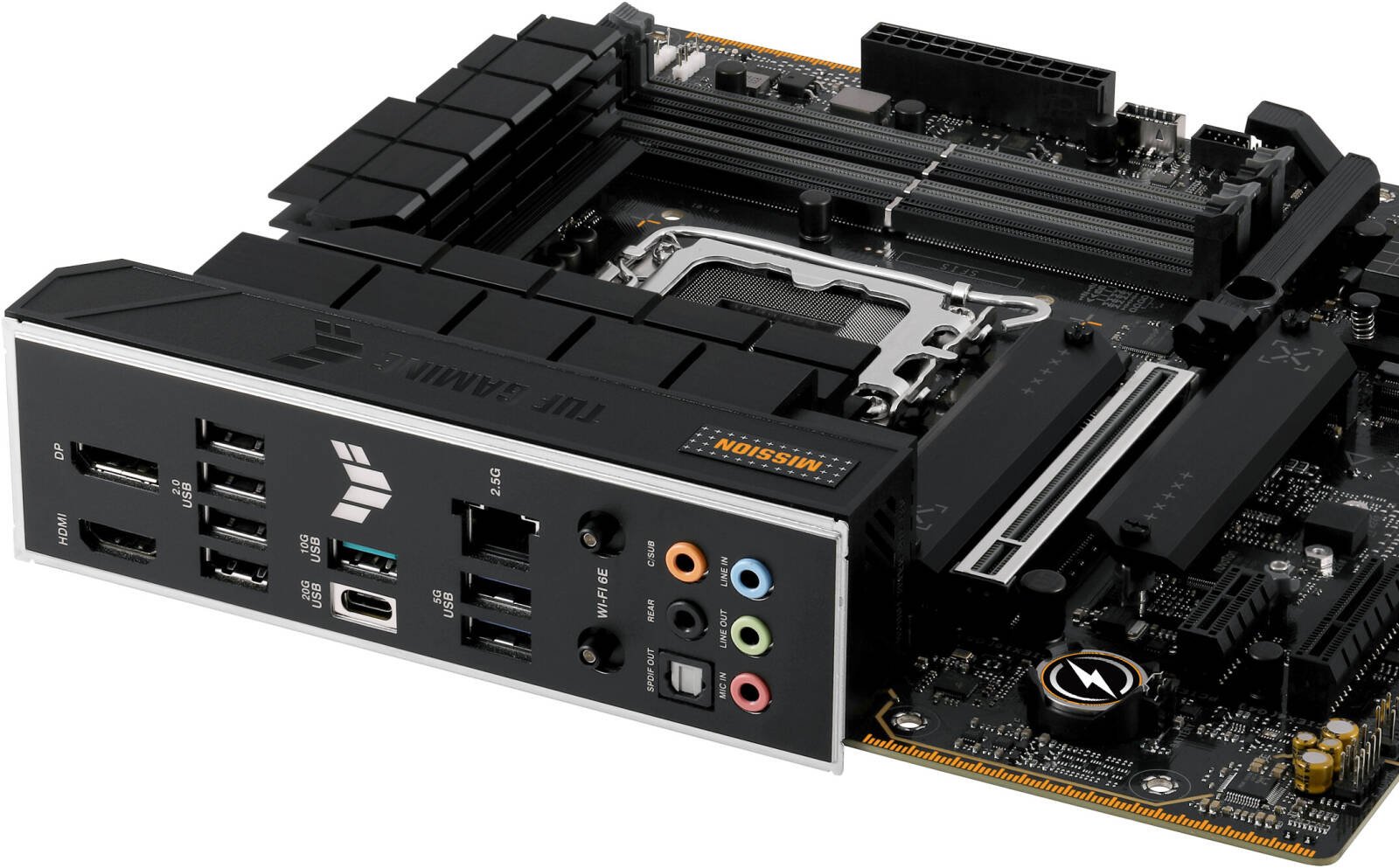

Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header
Special Features ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync
Software Features ASUS Exclusive Software, Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

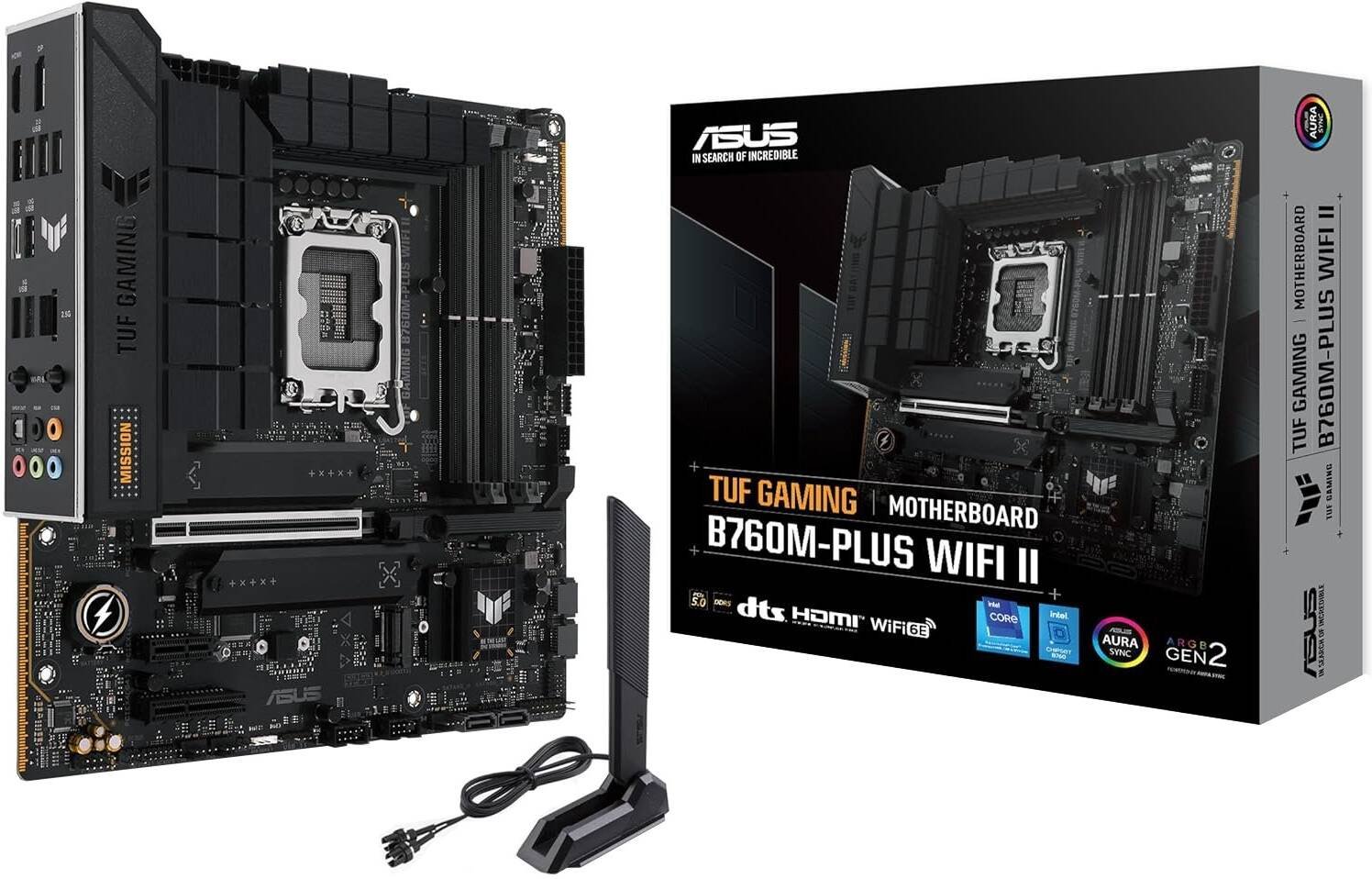

Accessories 2 x SATA 6Gb/s cables, 1 x ASUS Q-Antenna, 1 x M.2 Rubber Package, 1 x TUF Gaming sticker, 2 x Screw packages for M.2 SSD, 1 x TUF Certification card, 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
