| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset |
Intel® B760 Chipset |
| Memory |
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Graphics |
1 x DisplayPort, 1 x HDMITM port |
| Expansion Slots |
Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot <br> Intel® B760 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet |
1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6, Bluetooth® v5.2* (The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications) |
| USB |
Rear USB: 1 x USB 3.2 Gen 2x2 port (USB Type-C®), 1 x USB 3.2 Gen 2 port (Type-A), 3 x USB 3.2 Gen 1 ports (Type-A), 1 x USB 2.0 port (Type-A) <br> Front USB: 1 x USB 3.2 Gen 2 connector (USB Type-C®), 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC |

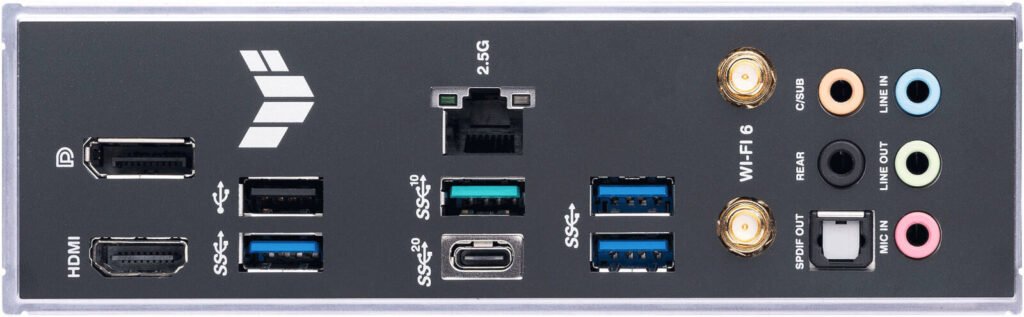

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (USB Type-C®), 1 x USB 3.2 Gen 2 port (Type-A), 3 x USB 3.2 Gen 1 ports (Type-A), 1 x USB 2.0 port (Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Internal I/O Connectors |
Various headers for fans, power, storage, and USB |
| Special Features |
ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Software Features, UEFI BIOS |
| Accessories |
Cables: 2 x SATA 6Gb/s cables <br> Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x TUF Gaming sticker, 2 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD <br> Documentation: 1 x TUF Certification card, 1 x User guide |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
