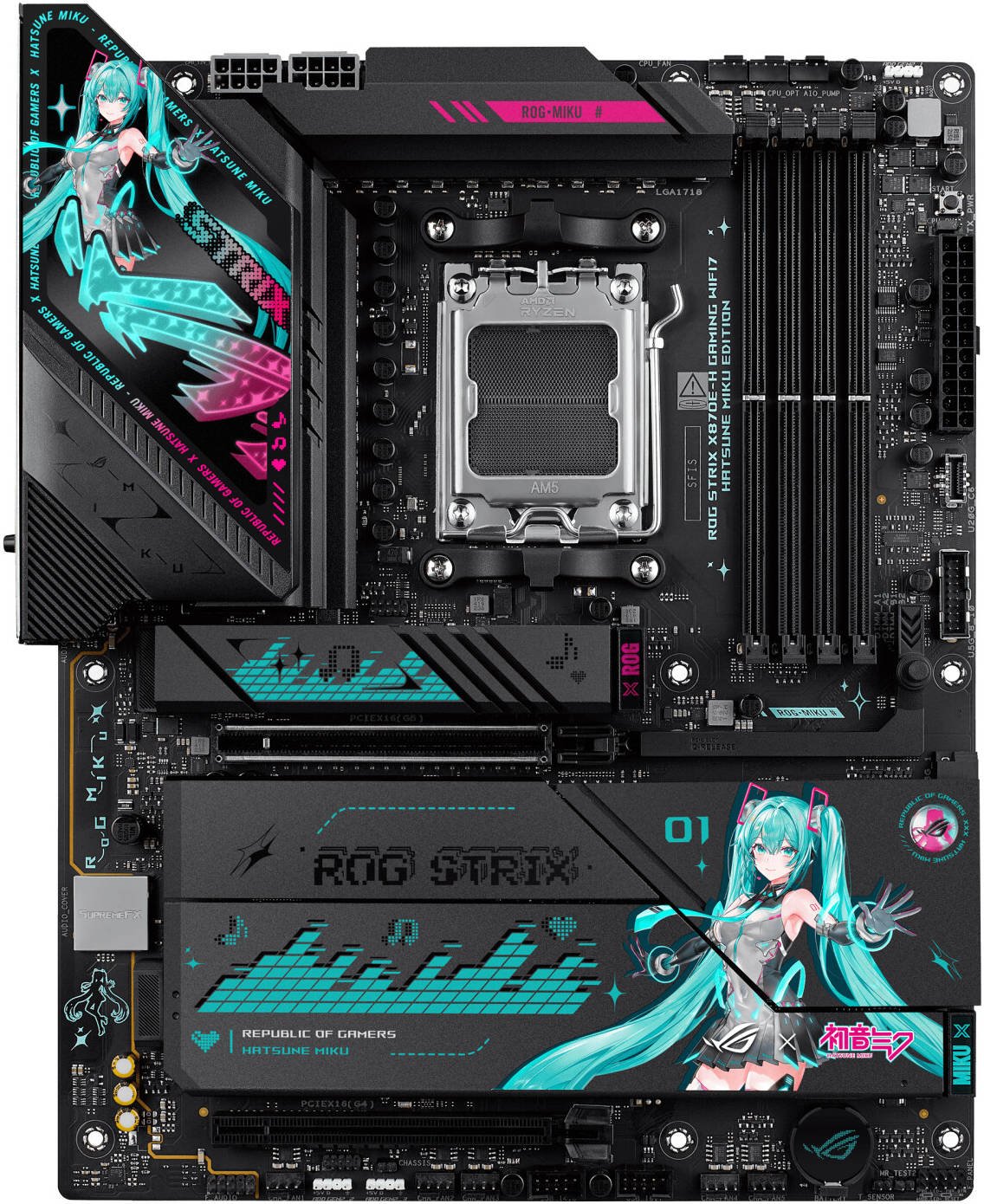

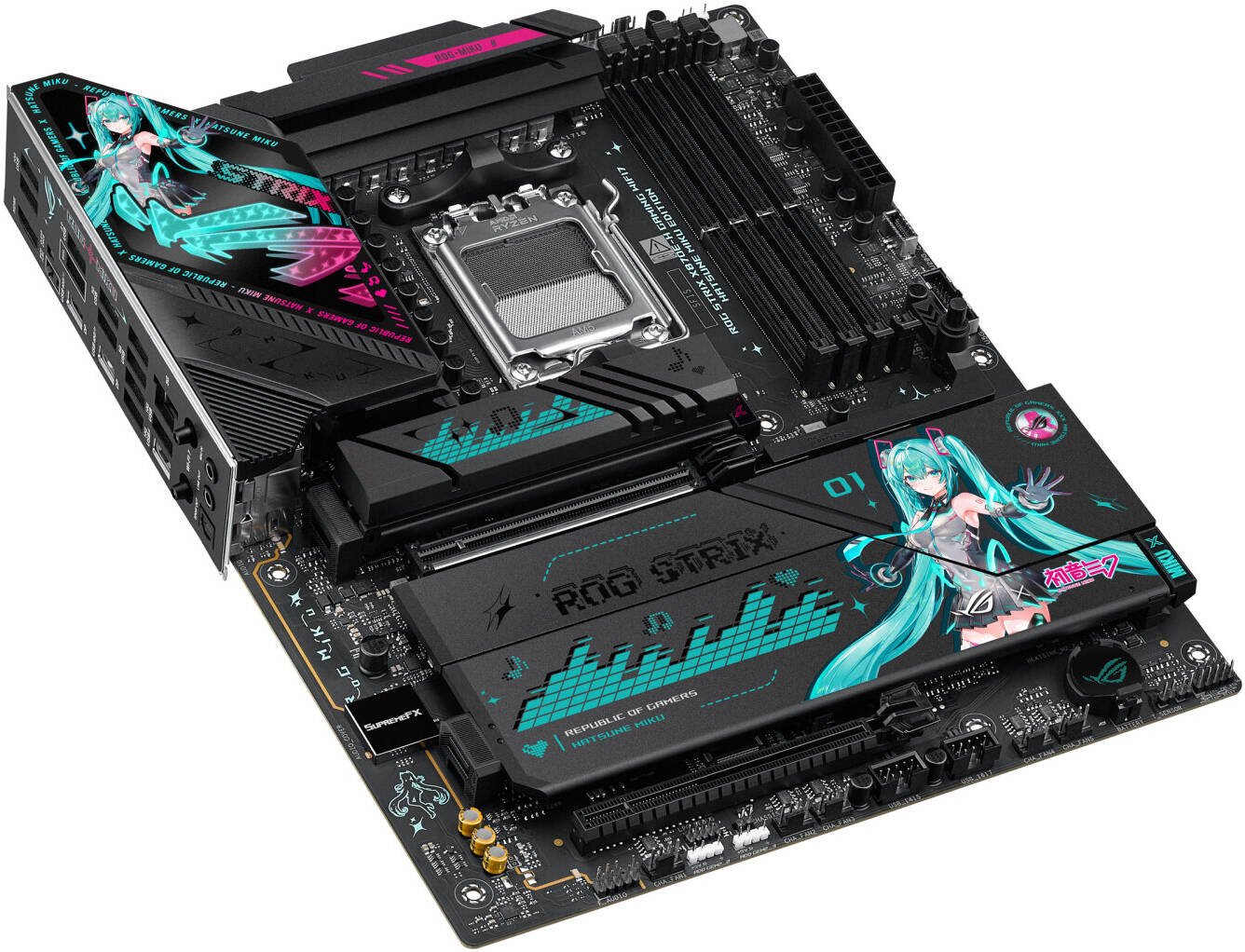

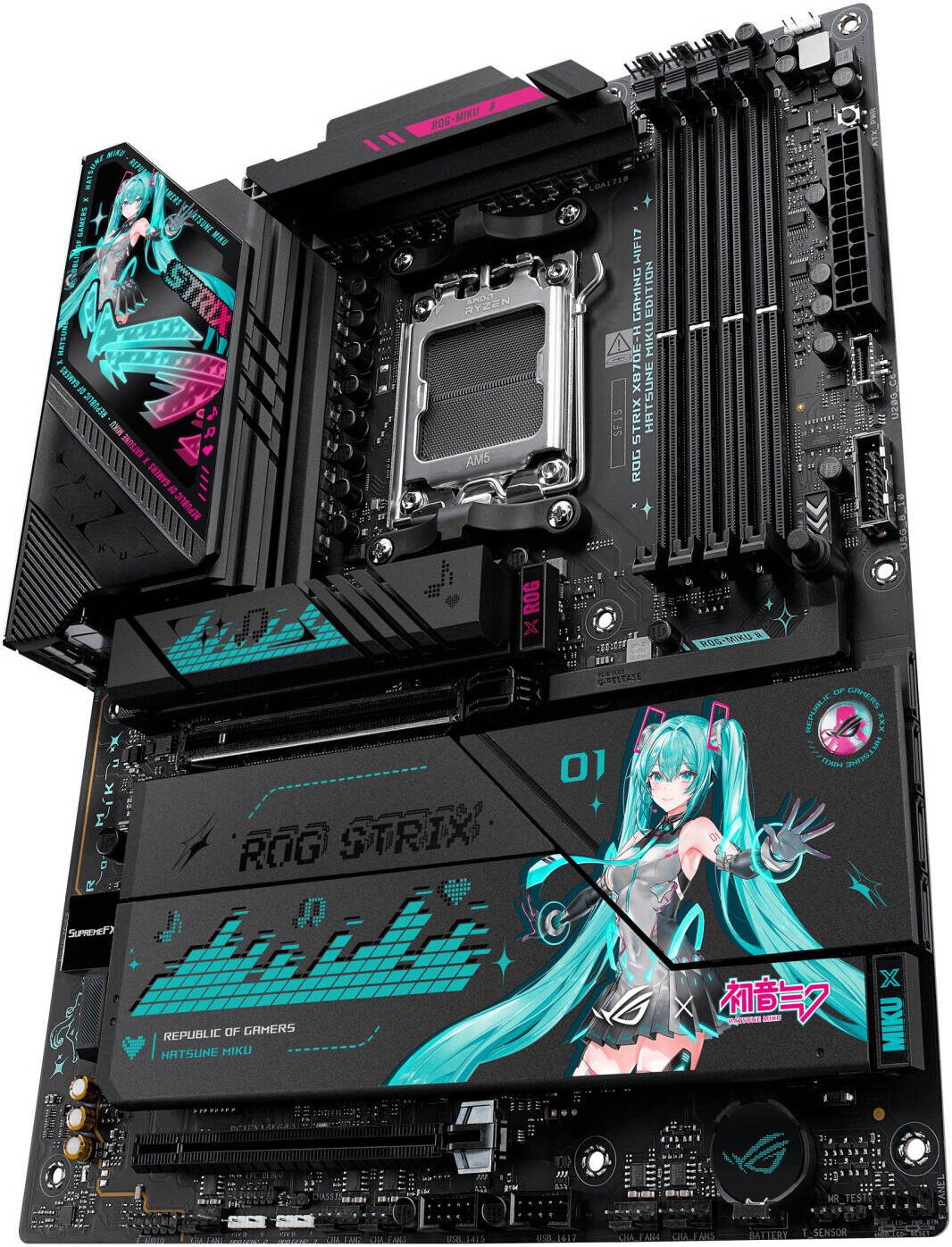

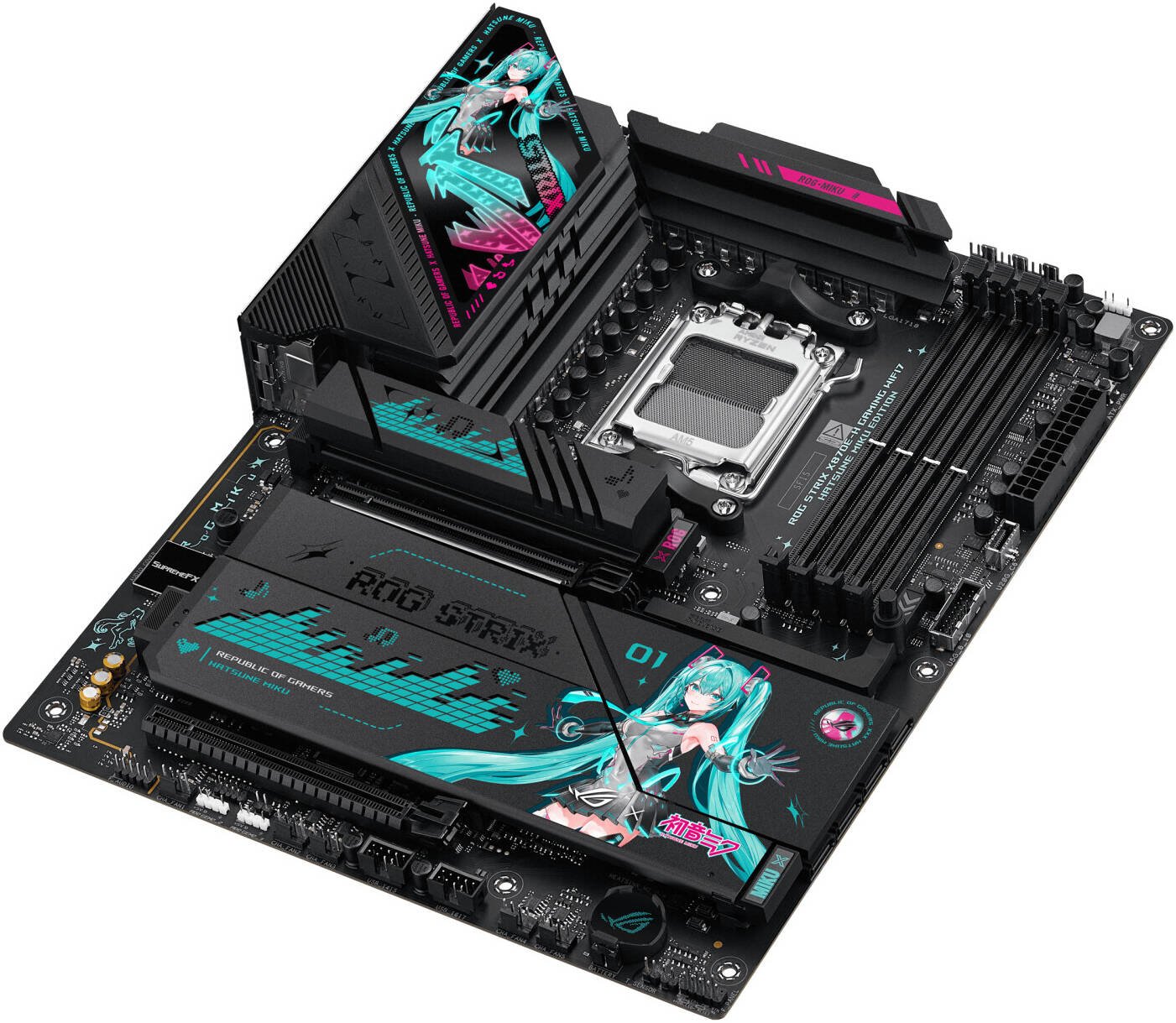

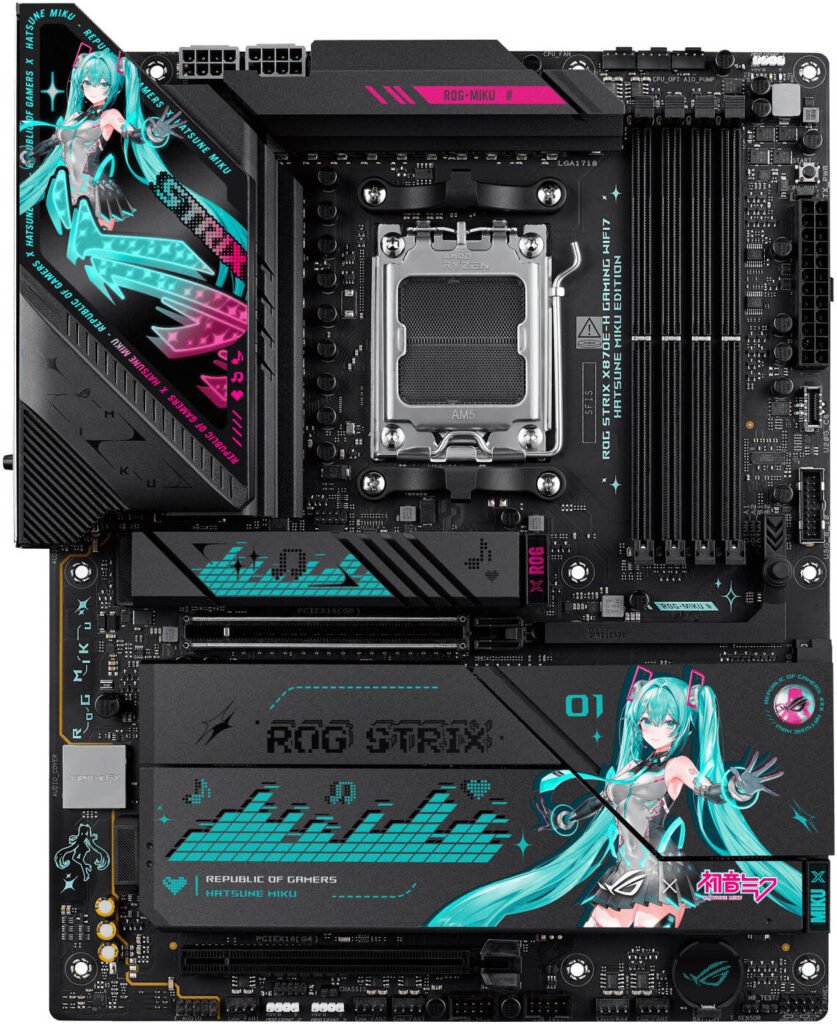

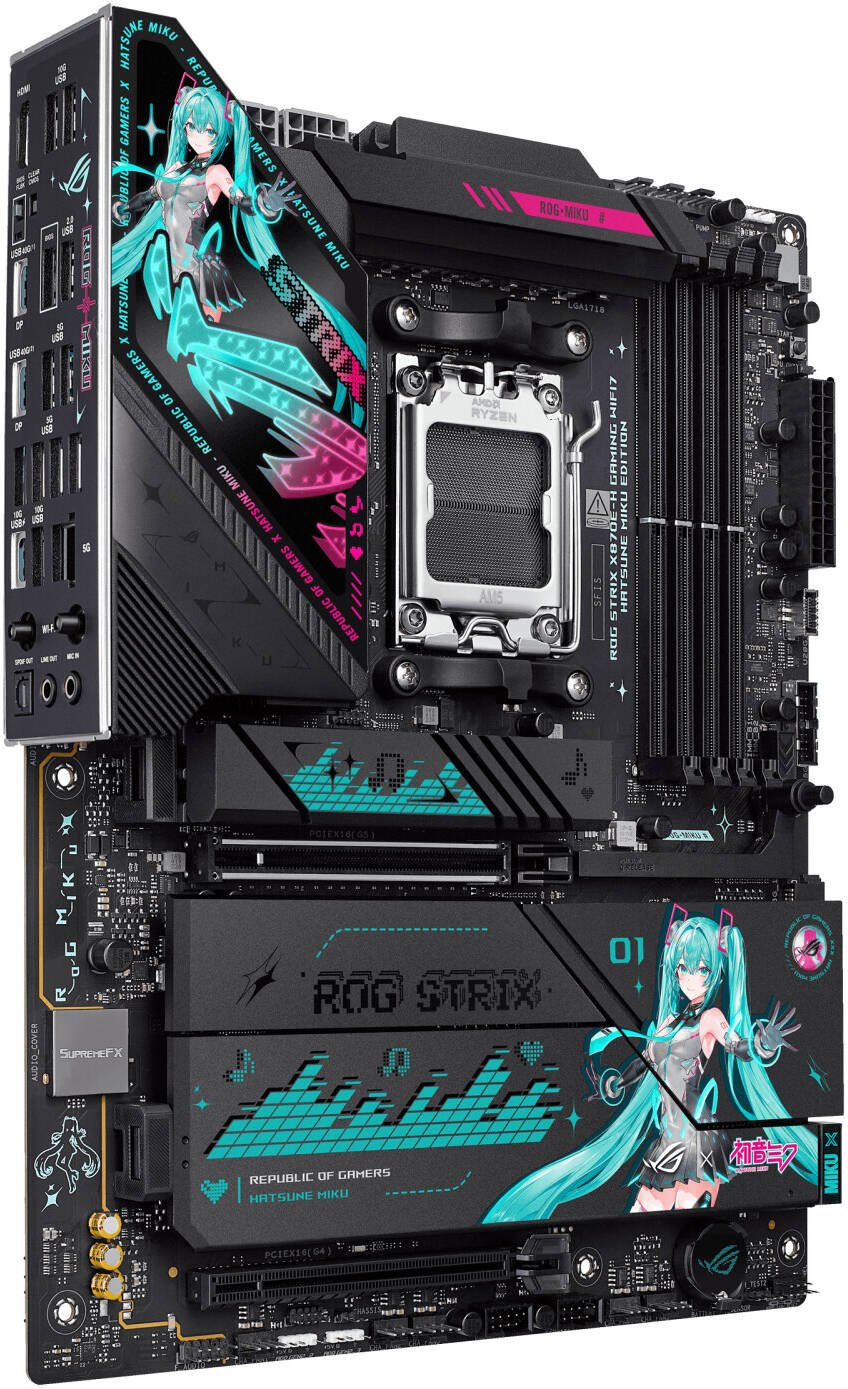

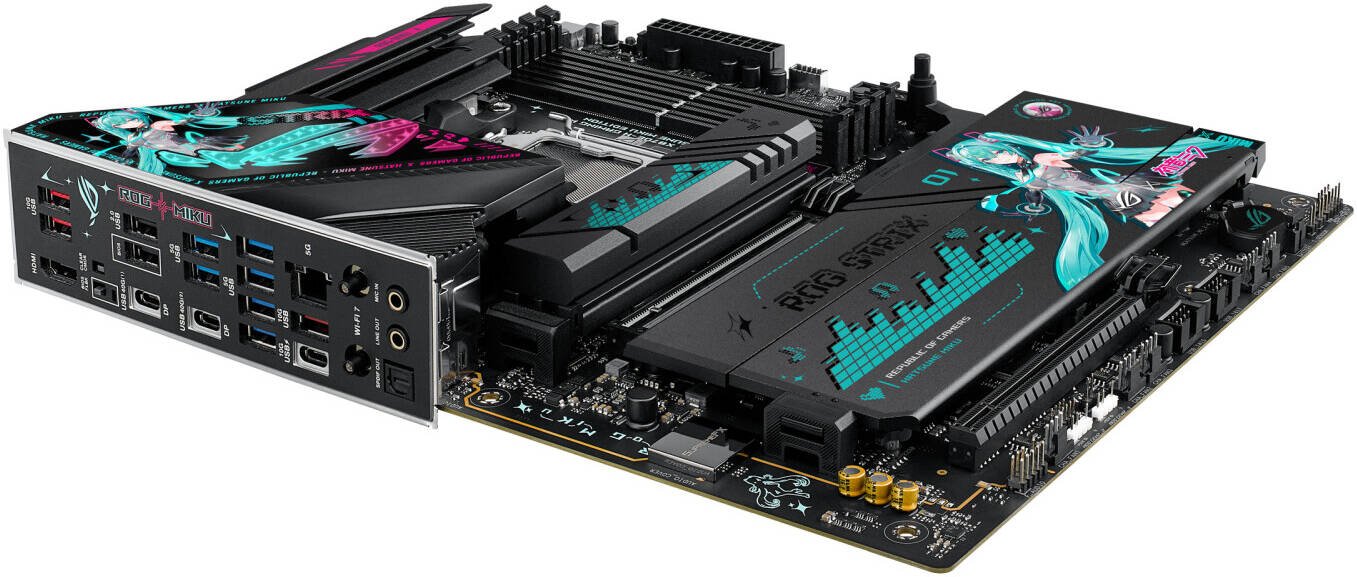

ASUS ROG STRIX X870E-H Gaming WIFI7 & BT Hatsune Miku Edition Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCIe 5.0 x16 Slots, 4 x M.2 Slots

2.069,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • AMD Socket AM5 Supports for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™)
  • Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB: Rear has 2 USB4 (40Gbps) Type-C ports and 4 USB 10Gbps ports, 6 USB 5Gbps ports and 2 USB 2.0 ports; Front has one USB 20Gbps Type-C® port, 1 USB 5Gbps header for 2 additional USB 5Gbps ports, and 2 USB 2.0 headers for 4 additional USB 2.0 ports.
  • This device offers Realtek 5Gb Ethernet with ASUS LANGuard, Wi-Fi 7 (2.4/5/6GHz, 160MHz), and Bluetooth® v5.4 for fast, reliable connectivity.
CPU AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* (*See ASUS support site for full list)
Chipset AMD X870E
Memory 4 × DIMM slots, max 256GB, DDR5, Dual channel, Supports up to 8000+MT/s (OC), EXPO™, DIMM Fit / DIMM Fit Pro, ASUS Enhanced Memory Profile (AEMP)
Graphics 1 × HDMI™ port (4K@60Hz), 2 × USB4® (40Gbps) with Type-C display output
Expansion Slots Ryzen™ 9000/7000: 1 × PCIe 5.0 x16; Ryzen™ 8000: 1 × PCIe 4.0 x16; X870E Chipset: 1 × PCIe 4.0 x16
Storage 4 × M.2 slots, 4 × SATA 6Gb/s ports; M.2_1/2 PCIe 5.0 or 4.0 depending on CPU; M.2_3/4 PCIe 4.0
RAID Support AMD RAIDXpert2: RAID 0/1/5/10 (varies by CPU)
Ethernet 1 × Realtek 5Gb LAN, ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7 (MediaTek MT7925) 2×2, 2.4/5/6 GHz, 160MHz, Bluetooth v5.4
Rear USB Ports 2 × USB4® (Type-C), 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0
Front USB Ports 1 × USB 20Gbps (Type-C), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports)
Audio Realtek ALC1220P 7.1, SupremeFX Shielding, Savitech SV3H712 AMP, Rear optical S/PDIF, 120 dB SNR playback

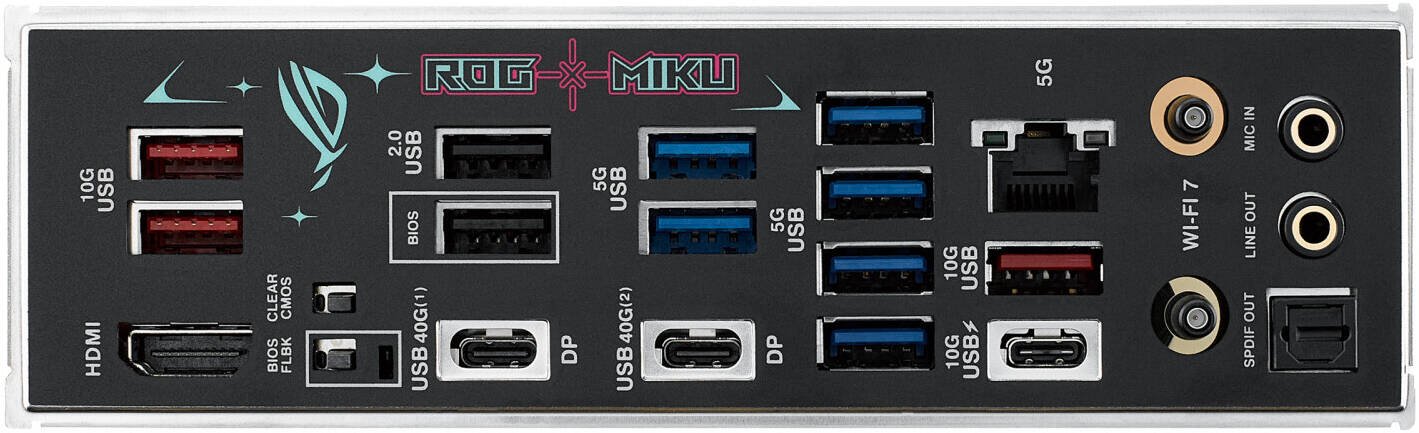

Back Panel I/O 2 × USB4® Type-C, 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0, 1 × HDMI™, 1 × Wi-Fi module, 1 × 5Gb LAN, 2 × Audio jacks, 1 × Optical S/PDIF, BIOS FlashBack™, Clear CMOS
Internal I/O Connectors CPU Fan ×1, CPU OPT Fan ×1, AIO Pump ×1, Chassis Fan ×5, 24-pin Power, 2 × 8-pin CPU Power, M.2 ×4, SATA ×4, USB headers, Front Audio, Start button, Thermal Sensor, Front Panel
Special Features Extreme Engine Digi+, 5K Black metallic capacitors, ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-DIMM, Q-LED, Q-Slot, Q-Dashboard, Q-Antenna), Thermal solution (M.2/VRM heatsinks), EZ DIY (FlashBack, Clear CMOS, ProCool II, pre-mounted I/O shield), SafeSlot, Aura Sync (ARGB Gen2 headers)
Software Features ROG Exclusive (CPU-Z, Dolby Atmos), ASUS Exclusive (Armoury Crate, Aura Creator/Sync, Fan Xpert 4, GameFirst, AI Advisor, DriverHub, HWiNFO, GlideX, TurboV Core, USB Wattage Watcher), Adobe CC trial, Norton 360 (60 days), WinRAR trial
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, AI Cache Boost, CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey, FlexKey
Manageability WOL by PME, PXE

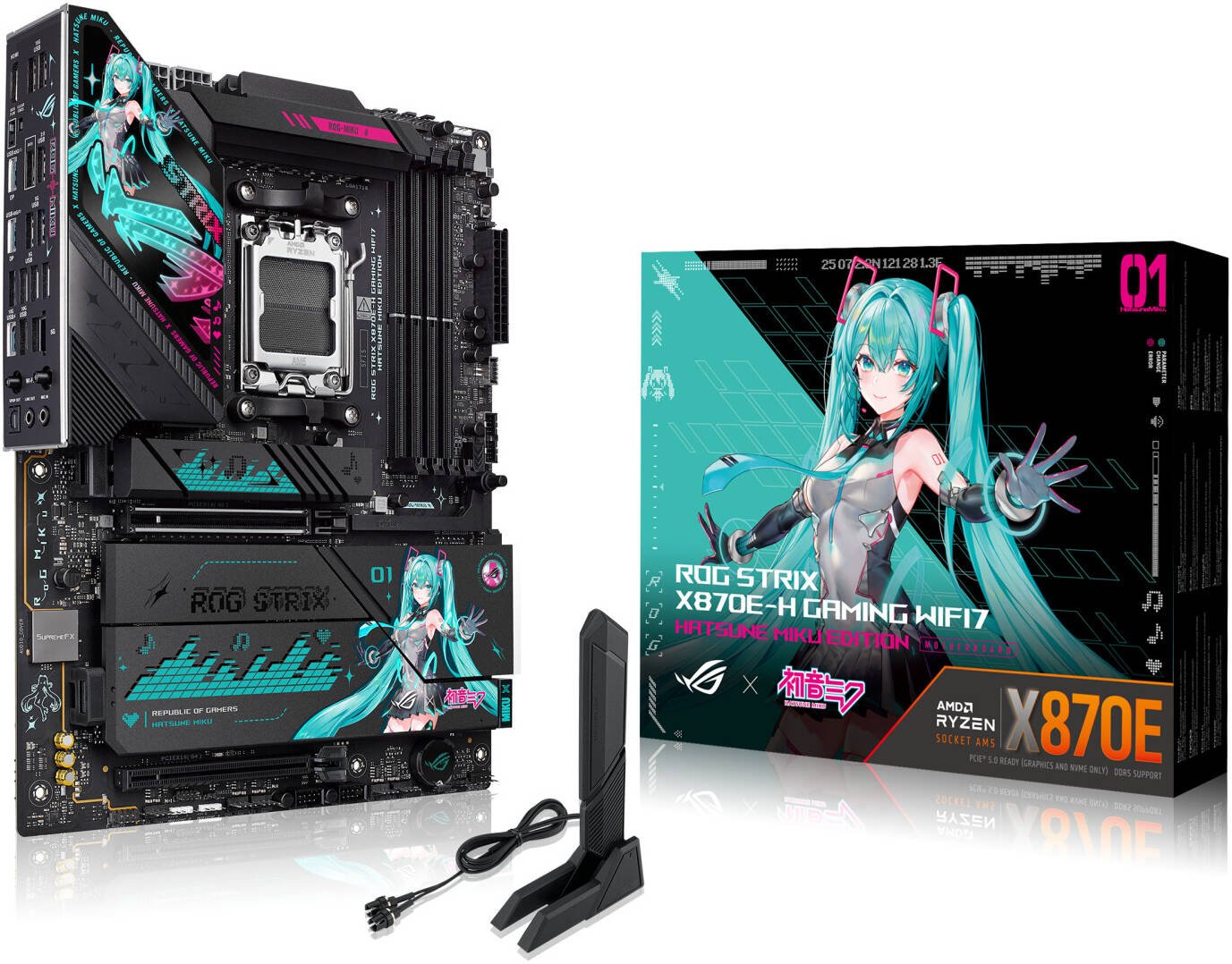

Accessories 2 × SATA 6Gb/s cables, ASUS Wi-Fi Q-Antenna, Cable ties, M.2 Q-Latch, ASUS PCIe to Front USB Card (2 × USB 5Gbps + 1 × USB 10Gbps), Hatsune Miku Edition: Phone Stand, Thank You Card, Sticker, 4 × M.2 rubbers
Documentation Quick start guide
Operating System Windows 11
Form Factor ATX, 12" × 9.6" (30.5 × 24.4 cm)
