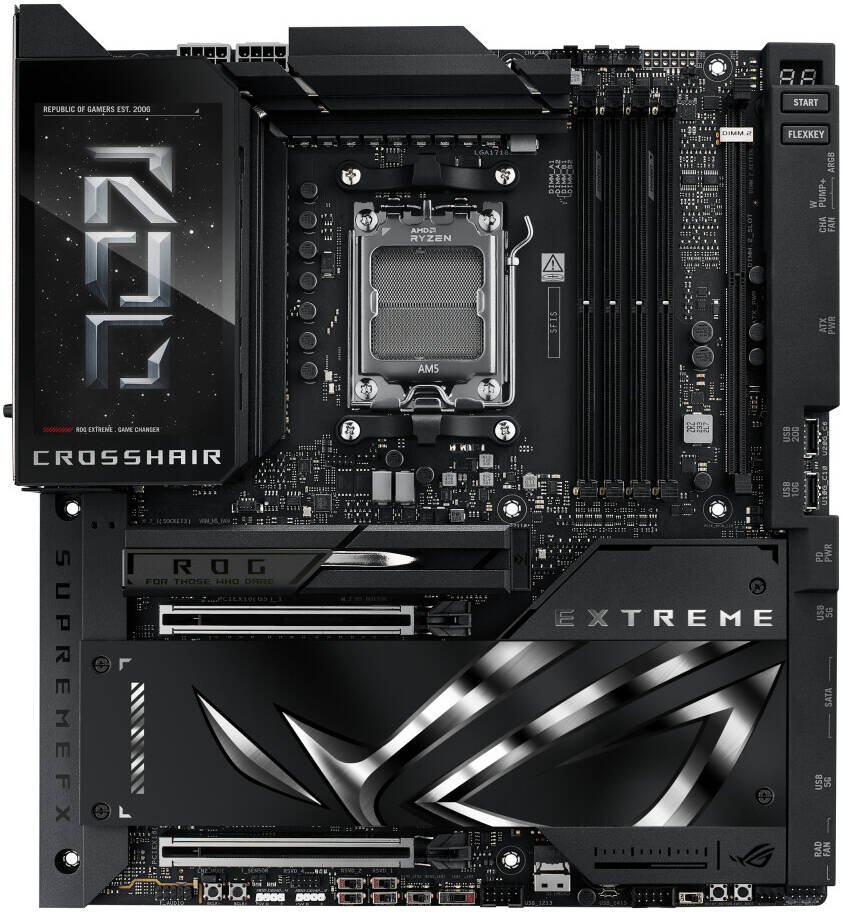

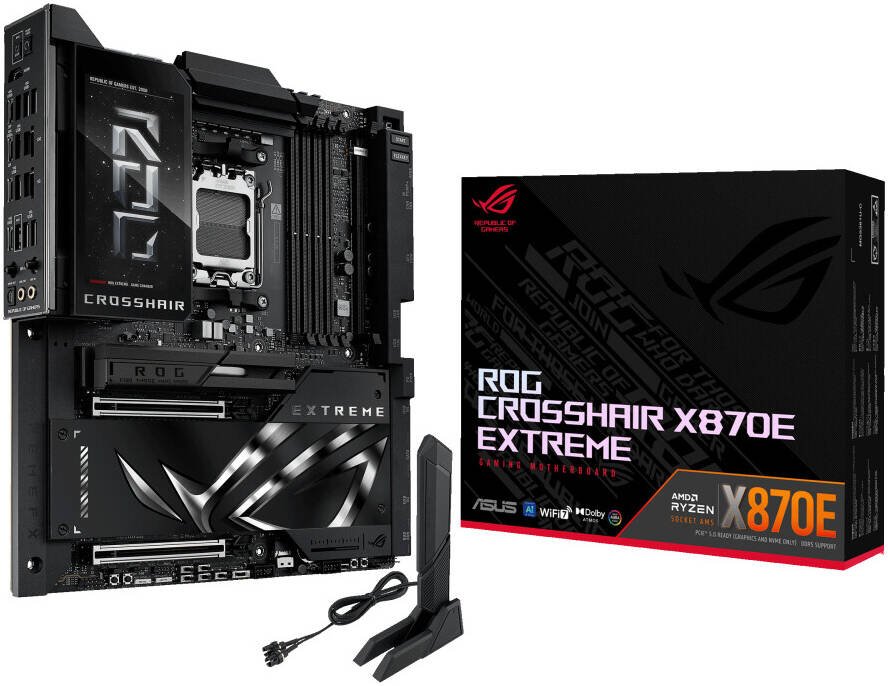

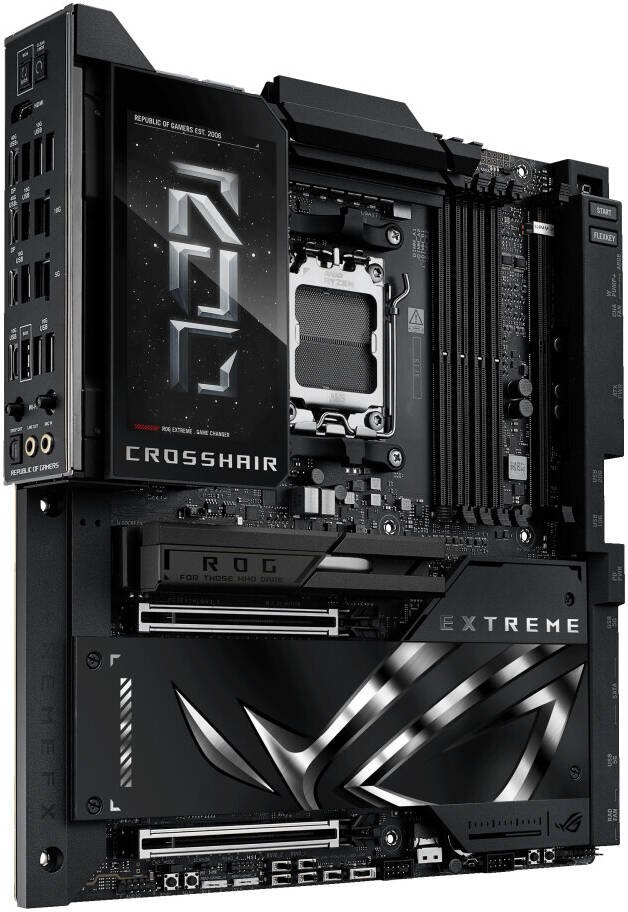

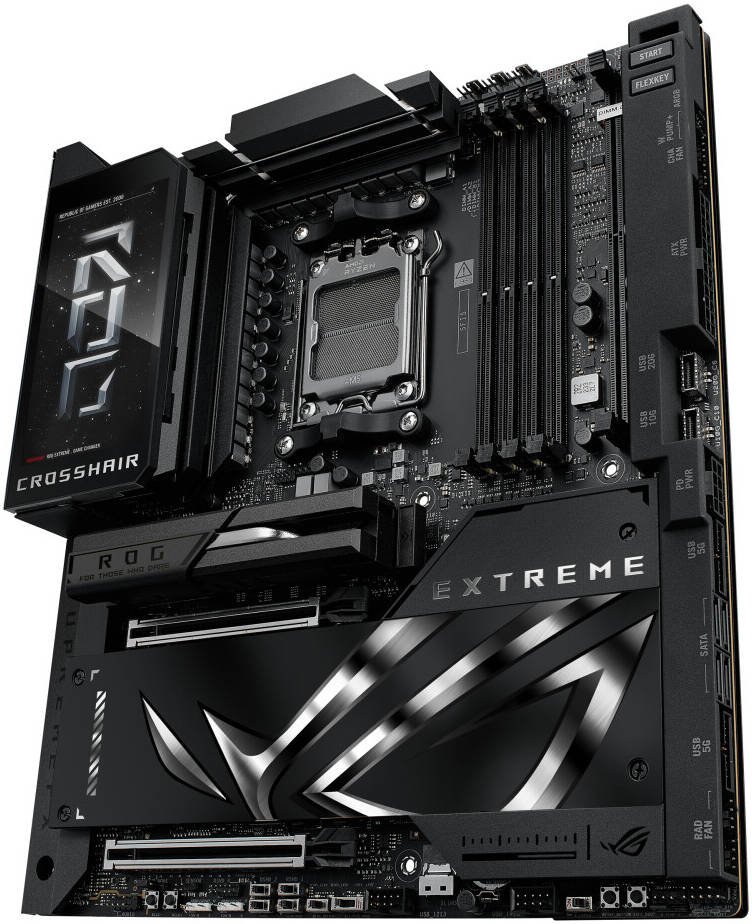

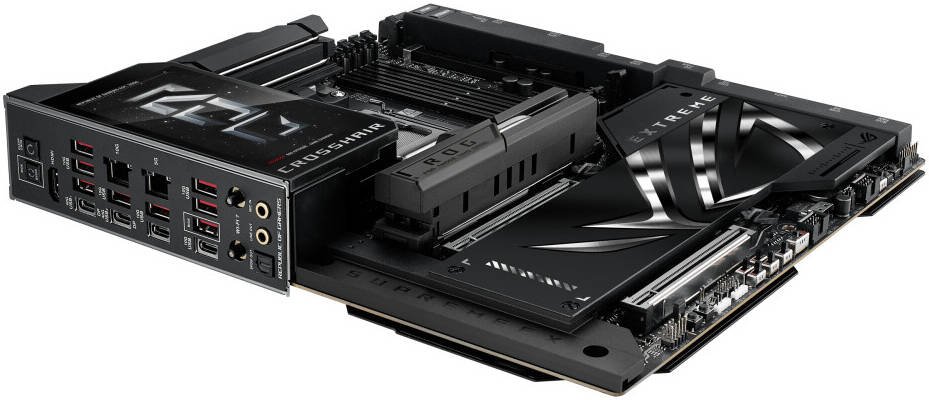

ASUS ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, x2 PCIe 5.0 x16 slots, 5 x M.2 Slots

4.536,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • CPU support for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with AMD Socket AM5 and AMD X870E chipset.
  • Memory: 4 DIMM slots supporting up to 256GB DDR5 with speeds up to 9000+ MT/s (OC) depending on CPU generation, supporting AMD EXPO, ASUS AEMP, and NitroPath DRAM Technology.
  • Storage: Up to 5 M.2 slots (3 PCIe 5.0 slots), 1 SlimSAS connector, and 4 SATA 6Gb/s ports.
  • USB: Rear has 2 USB4 (40Gbps) Type-C ports and 10 USB 10Gbps ports; front has USB 20Gbps & USB 10Gbps Type-C connectors with Quick Charge 4+ (up to 60W charging).
  • Networking: WiFi 7 with 320MHz 6GHz band, 5Gb Ethernet, and 10Gb Ethernet support.
Model ROG CROSSHAIR X870E EXTREME
CPU Support AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors
Chipset AMD X870E
Memory 4×DIMM slots, up to 256GB DDR5; Speeds: 8200+MT/s (Ryzen 9000), 9000+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000); Supports ECC & Non-ECC; Dual Channel; EXPO™, AEMP, NitroPath
Graphics 1× HDMI 2.1 (4K@60Hz)
2× USB4® Type-C (DisplayPort 1.4a, 4K@60Hz)
Expansion Slots Ryzen 9000/7000: 2× PCIe 5.0 x16 (x16, x8/x8, x8/x4/x4 depending on M.2 use)
Ryzen 8700/8600/8400: 2× PCIe 4.0 x16 (x8 only, second slot disabled)
Ryzen 8500/8300: 2× PCIe 4.0 x16 (x4 only, second slot disabled)
Storage Up to 5× M.2 + 1× SlimSAS + 4× SATA 6Gb/s
Ryzen 9000/7000: M.2_1,2,3 support PCIe 5.0 x4
Ryzen 8000: M.2_1 PCIe 4.0, M.2_2 & M.2_3 not supported
DIMM.2 (2 slots) PCIe 4.0 x4
SlimSAS PCIe 4.0 x4 via adapter
RAID Support Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10
Ethernet 1× Realtek 5GbE
1× Marvell® AQtion 10GbE
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7 (2×2, 2.4/5/6GHz, up to 6.5Gbps)
Bluetooth 5.4
USB (Rear I/O) 2× USB4® 40Gbps (Type-C)
10× USB 10Gbps (8× Type-A, 2× Type-C)
USB (Front I/O) 1× USB 20Gbps Type-C (up to 60W PD/QC4+)
1× USB 10Gbps Type-C
2× USB 5Gbps headers (4 ports)
2× USB 2.0 headers (4 ports)
Audio ROG SupremeFX 7.1 (ALC4082)
ESS® ES9219 Quad DAC
120 dB SNR playback, 32-Bit/384kHz support
Optical S/PDIF out, LED jacks

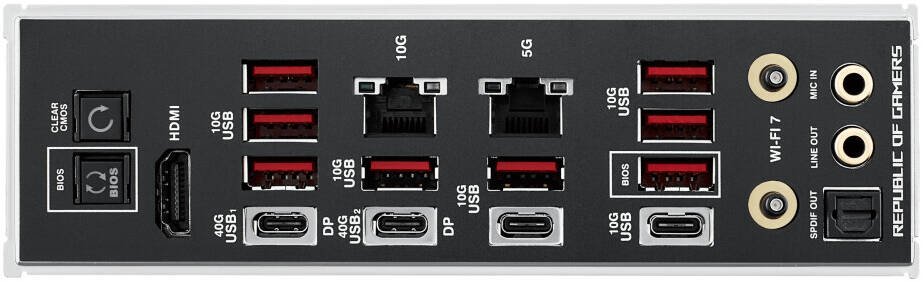

Back Panel I/O 2× USB4 Type-C, 10× USB 10Gbps, 1× HDMI, 1× Wi-Fi, 1× 5GbE, 1× 10GbE, 2× audio jacks, 1× Optical S/PDIF, BIOS FlashBack™, Clear CMOS
Internal I/O CPU/Chassis/Radiator fan headers, W_PUMP, VRM Fan, 24-pin ATX, 2× 8-pin CPU power, 8-pin PCIe power, 3× onboard M.2, 1× DIMM.2 (2× M.2), SlimSAS, 4× SATA, USB headers, ARGB headers, Debug buttons/switches
Special Features Extreme OC Kit (LN2, Safe Boot, ReTry, Slow Mode, ProbeIt, FlexKey, Start button)
ASUS Q-Design (Q-Latch, Q-Release, Q-Slide, Q-Antenna, Q-Code, Q-LED, Q-DIMM.2)

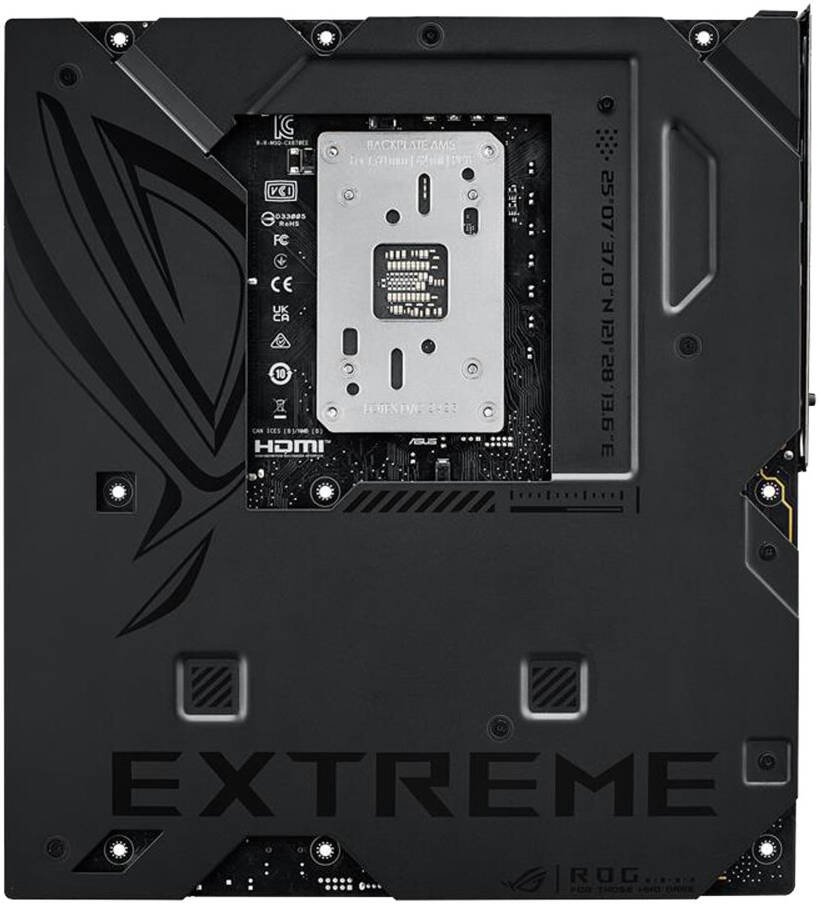

ASUS Thermal Solution (M.2 & VRM heatsinks, metal backplate, 3D VC M.2 Heatsink)
Dual BIOS
Full Color 5" LCD
Software Features ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4, Aura Sync/Creator, AI Cooling II, GameFirst, AIDA64 (1yr), Internet Security (1yr), BIOS utilities
BIOS Dual 256Mb UEFI AMI
Manageability WOL by PME

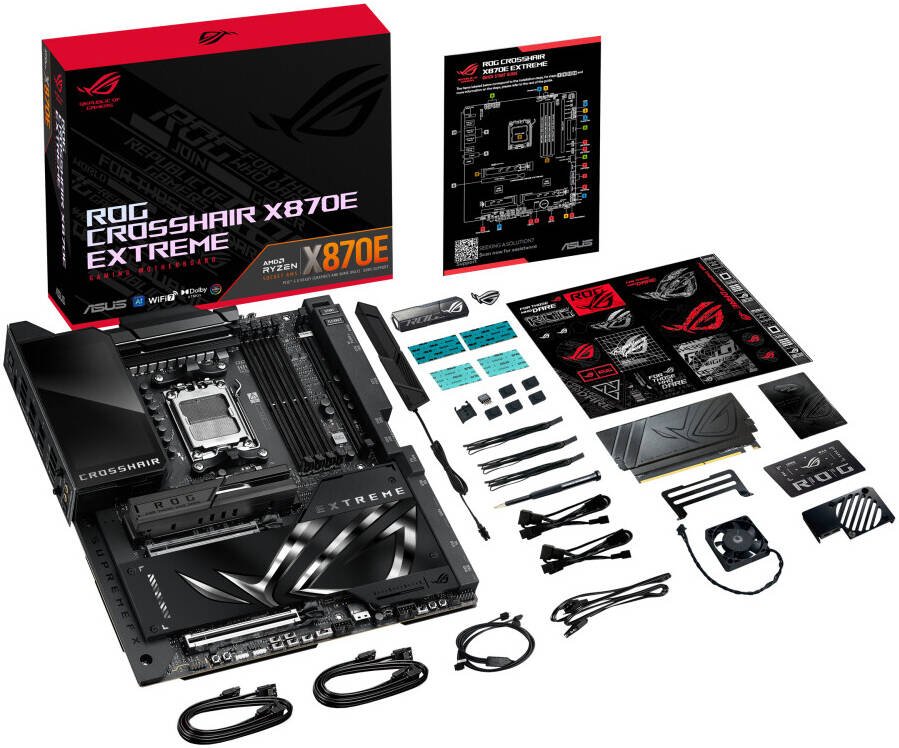

Accessories Wi-Fi Q-Antenna, Q-Connector, ROG DIMM.2 w/ Heatsink, Fan Kit, ARGB splitters, Fan splitters, SATA cables, Thermistor cables, ROG stickers, screwdriver, logo plate, bottle opener, USB drive (drivers), Quick Start Guide
Operating System Windows 11
Form Factor E-ATX, 12" × 10.9" (30.5 × 27.7 cm)
