ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard, AMD TRX50 Chipset, 4x DDR5 DIMM Slots, 3x PCIe 5.0 x16 (x16) Safeslots, 4x M.2 Slots, Black

3.399,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
  • CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
  • Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
  • Ultrafast Connectivity: Three PCIe® 5.0 x16 slots, one PCIe® 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C® ports, and SlimSAS NVMe support
  • Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
  • Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
CPU AMD Socket sTR5 — supports Ryzen Threadripper PRO 9000/7000 WX & Threadripper 9000/7000
Chipset AMD TRX50
Memory 4× DIMM DDR5 ECC Registered • Quad-channel architecture
Expansion Slots 3× PCIe 5.0 x16 • 1× PCIe 4.0 x16
Storage 4× M.2 + 4× SATA 6Gb/s + 2× SlimSAS • PCIe 5.0/4.0 modes depending CPU • Shared bandwidth on M.2_3/SlimSAS_2
RAID RAIDXpert2 — PCIe & SATA RAID 0/1/5/10
Ethernet 1× Marvell AQtion 10GbE • 1× Intel I226-LM 2.5GbE
Wireless Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz) • Bluetooth 5.4
USB (Rear) 9 ports — 2× USB4 Type-C • 6× USB 10Gbps Type-A • 1× USB2.0
USB (Front) Up to 7 ports — includes USB-C 20Gbps (30W PD), USB 5Gbps header, USB2 headers
Audio Realtek ALC1220P HD • Up to 5.1 surround • 120dB playback / 113dB recording

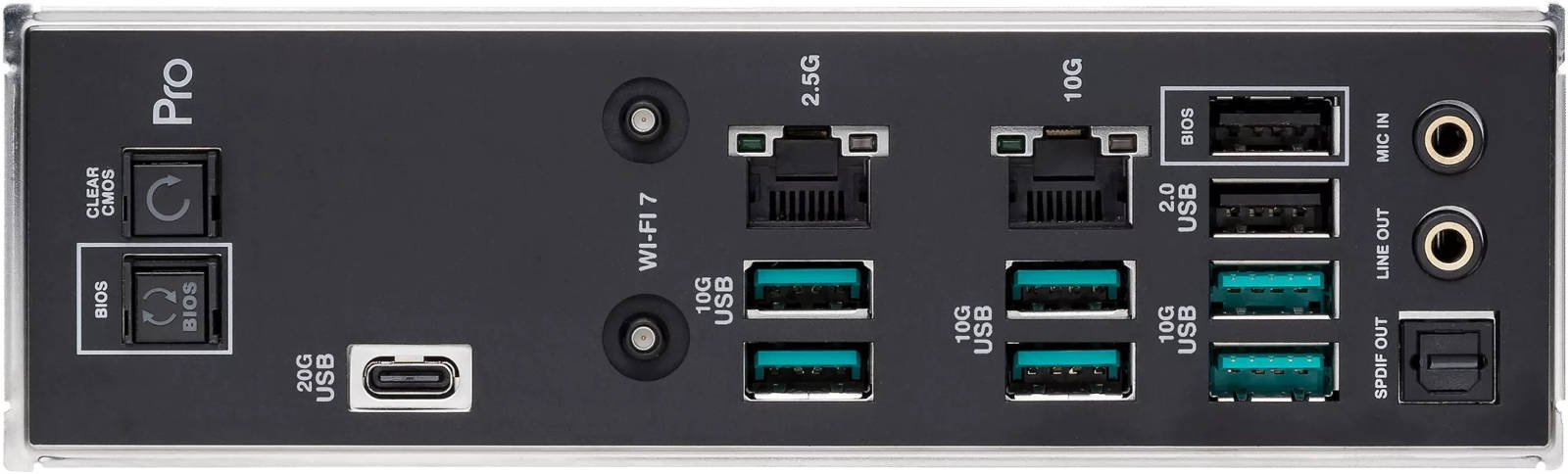

Back Panel I/O USB ports, 2× DP-IN, Wi-Fi module, 10GbE, 2.5GbE, audio jacks, BIOS FlashBack, Clear CMOS
Internal Connectors Fan/pump headers, extensive power connectors, M.2/SATA/SlimSAS, USB headers, RGB, TPM, sensors, buttons
Special Features Q-Design tools • Active VRM thermal solution • EZ-DIY features • Aura Sync • Reliability protections
Software Armoury Crate suite, CPU-Z, DriverHub, ACCE IT tools, trials (Adobe/Norton/WinRAR)
Remote Management ACCE support • BMC header • IPMI expansion ready
BIOS 256Mb UEFI AMI
Manageability WOL by PME • PXE boot

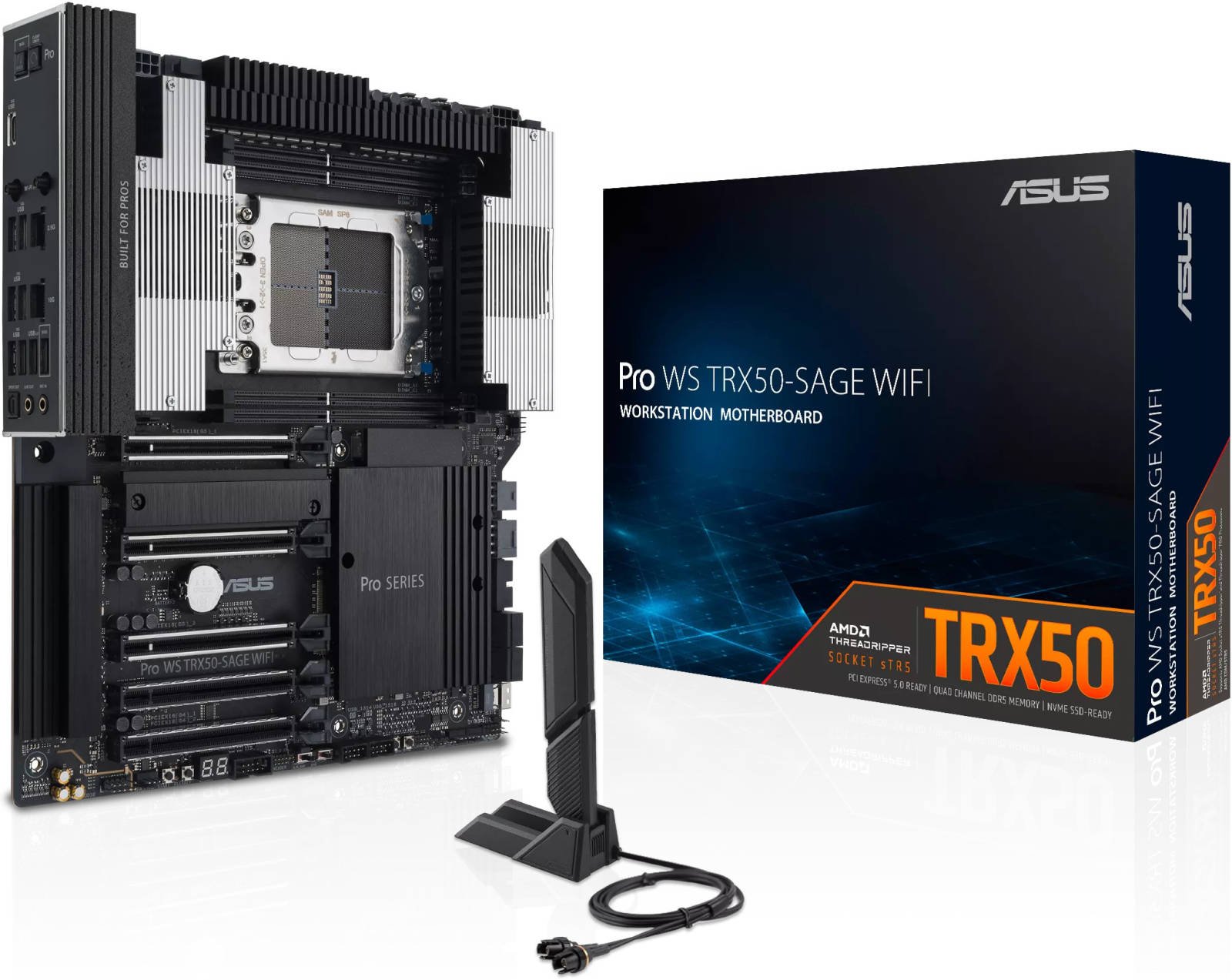

Accessories SATA/DP/power cables, antenna, M.2 kits, fan bracket, docs
OS Support Windows 11
Form Factor CEB — 12″ × 11″ (30.5 × 28.0 cm)
