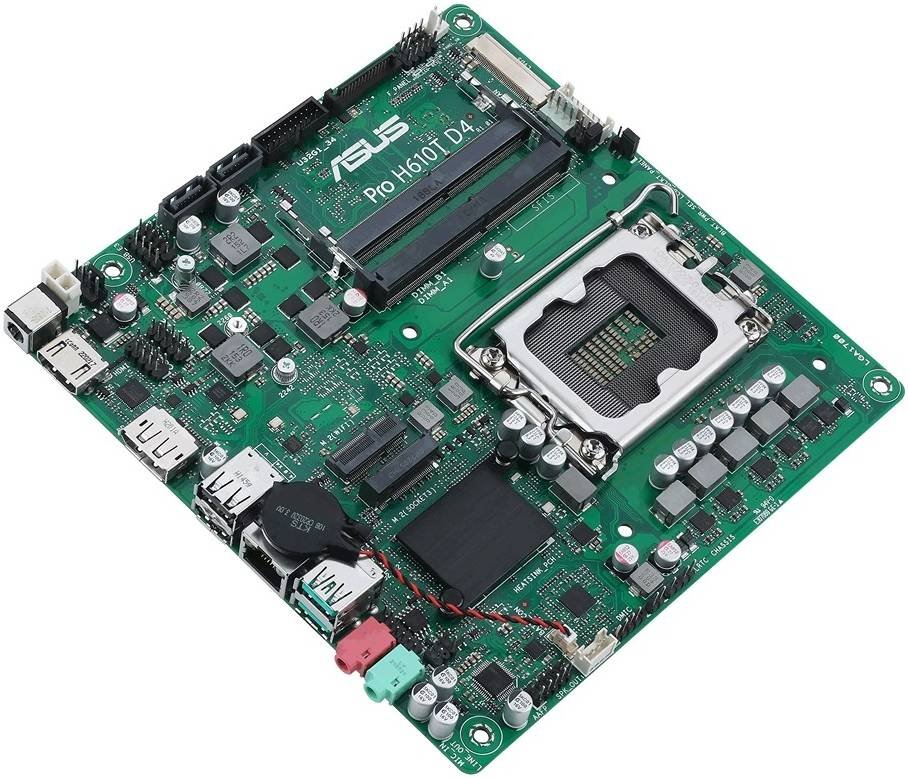

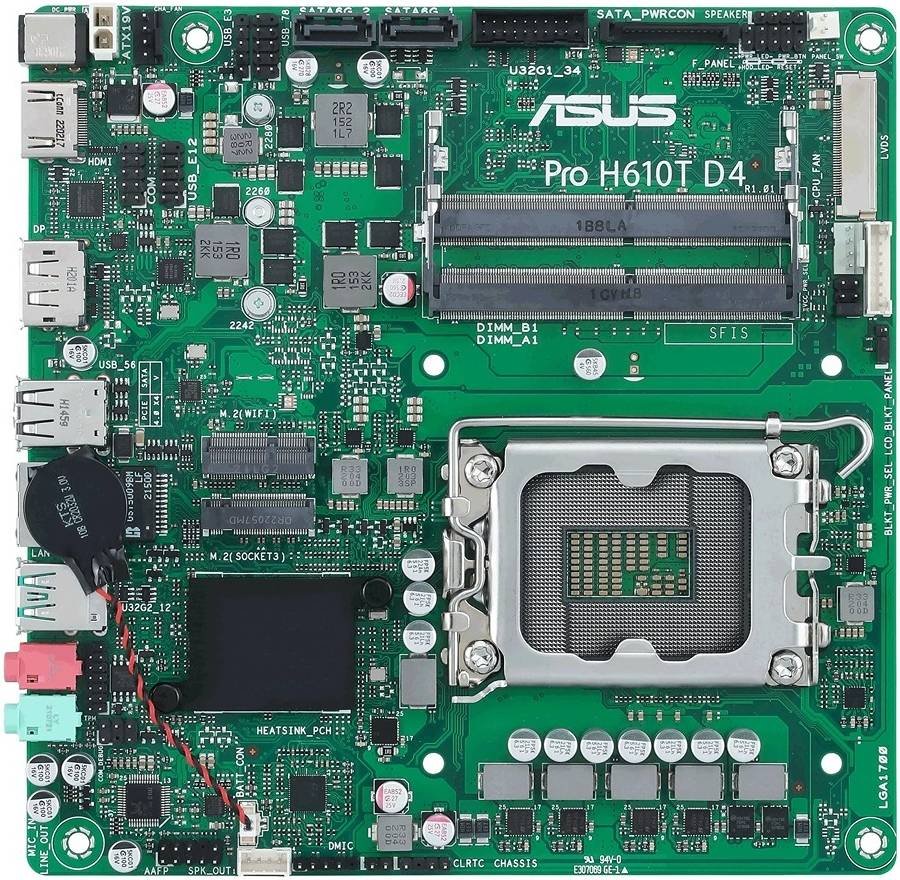

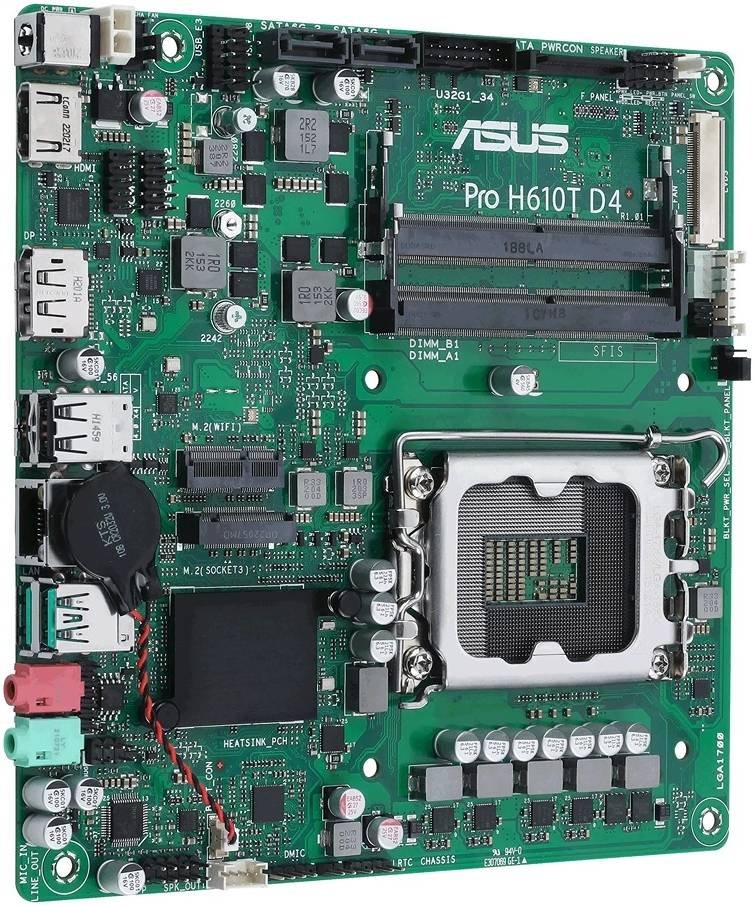

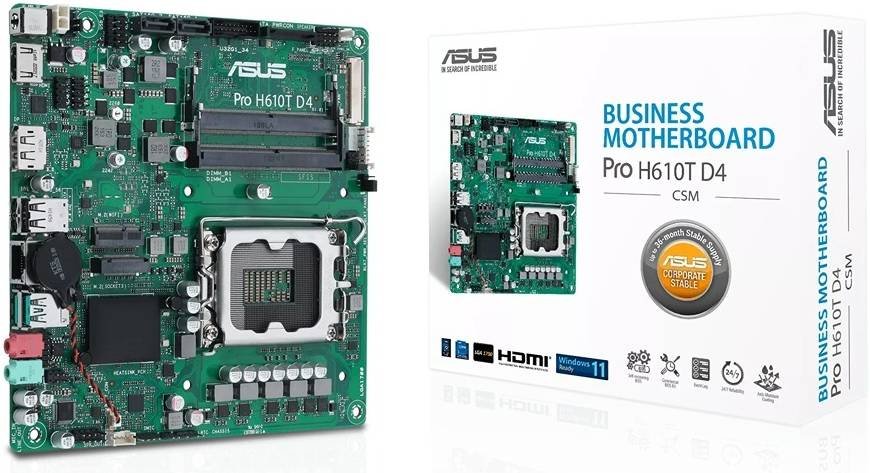

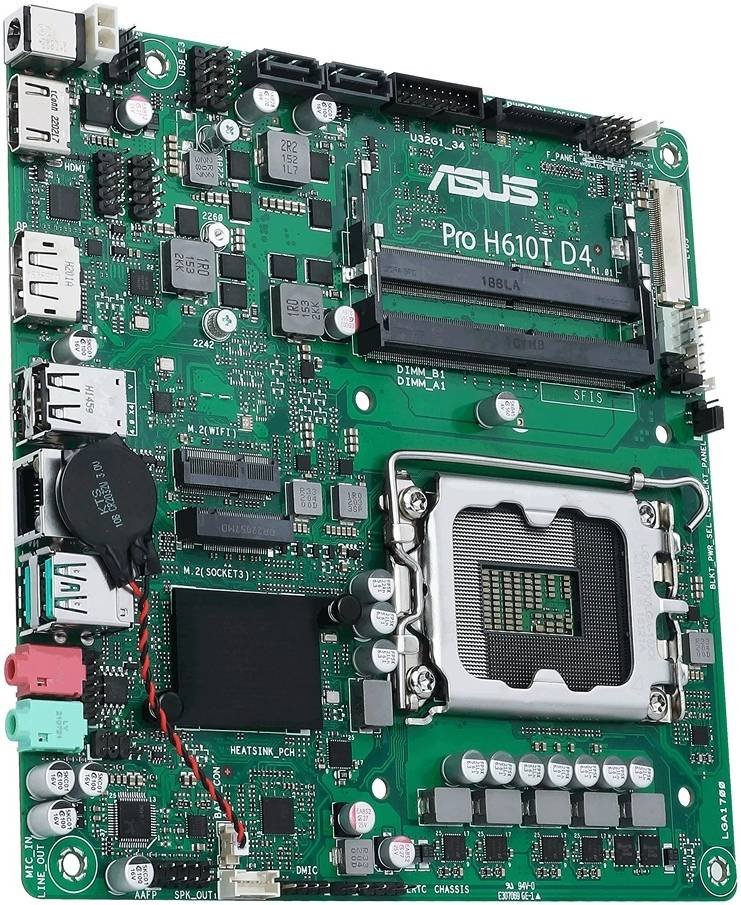

ASUS Pro H610T D4-CSM LGA 1700 Mini-ITX Business Motherboard, Intel H610 Chipset, Dual-Channel DDR4-3200, Realtek 7.1-Channel Audio Controller, 2xSATA III/1xM.2, DP/HDMI & LVDS

472,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Chipset Intel H610
CPU Socket LGA 1700

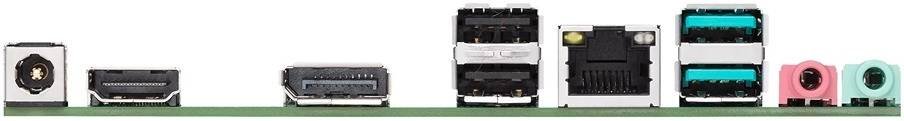

Back Panel I/O
USB 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort 1.4Output
1 x HDMI 2.1Output
Audio 2 x 1/8" / 3.5 mm
Ethernet / Controller 1 x Realtek Gigabit
Buttons Clear CMOS
Memory
Memory Slots 2 x 260-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3200 MHz
Maximum Capacity 64 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 2 x SATA III
M.2 1 x M Key 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Internal I/O
Expansion Slots None
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
1 x USB 2.0 Header (Supports 1 USB Type-A Port)
Power Connectors 1 x 15-Pin SATA
1 x 20-Pin Mainboard
Security Chassis Intrusion, TPM Header
Audio 1 x Speaker
Diagnostics 2-Digit Debug LED, Clear CMOS
BIOS
ROM 128 Mb
Front Panel I/O
I/O Connection Headers AAFP
Audio
Audio Codec Realtek (7.1-Channel)
Wireless
Bluetooth None
Wi-Fi None
Module Support 1 E Key M.2
Software
OS Compatibility Windows 10
Windows 11
*As of May, 2022: Check with manufacturer for the most up-to-date compatibility
