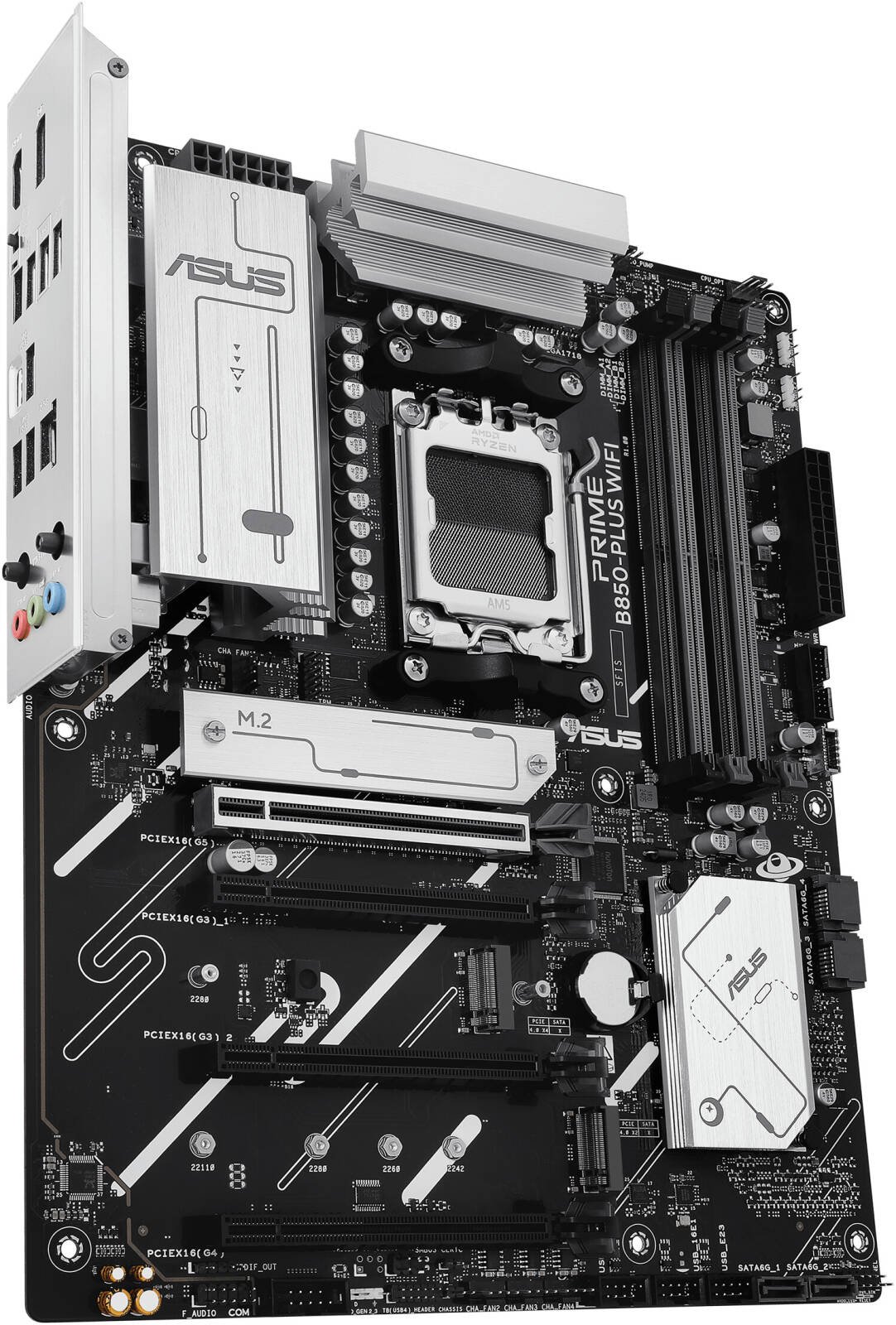

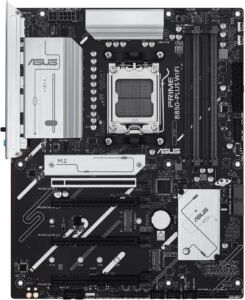

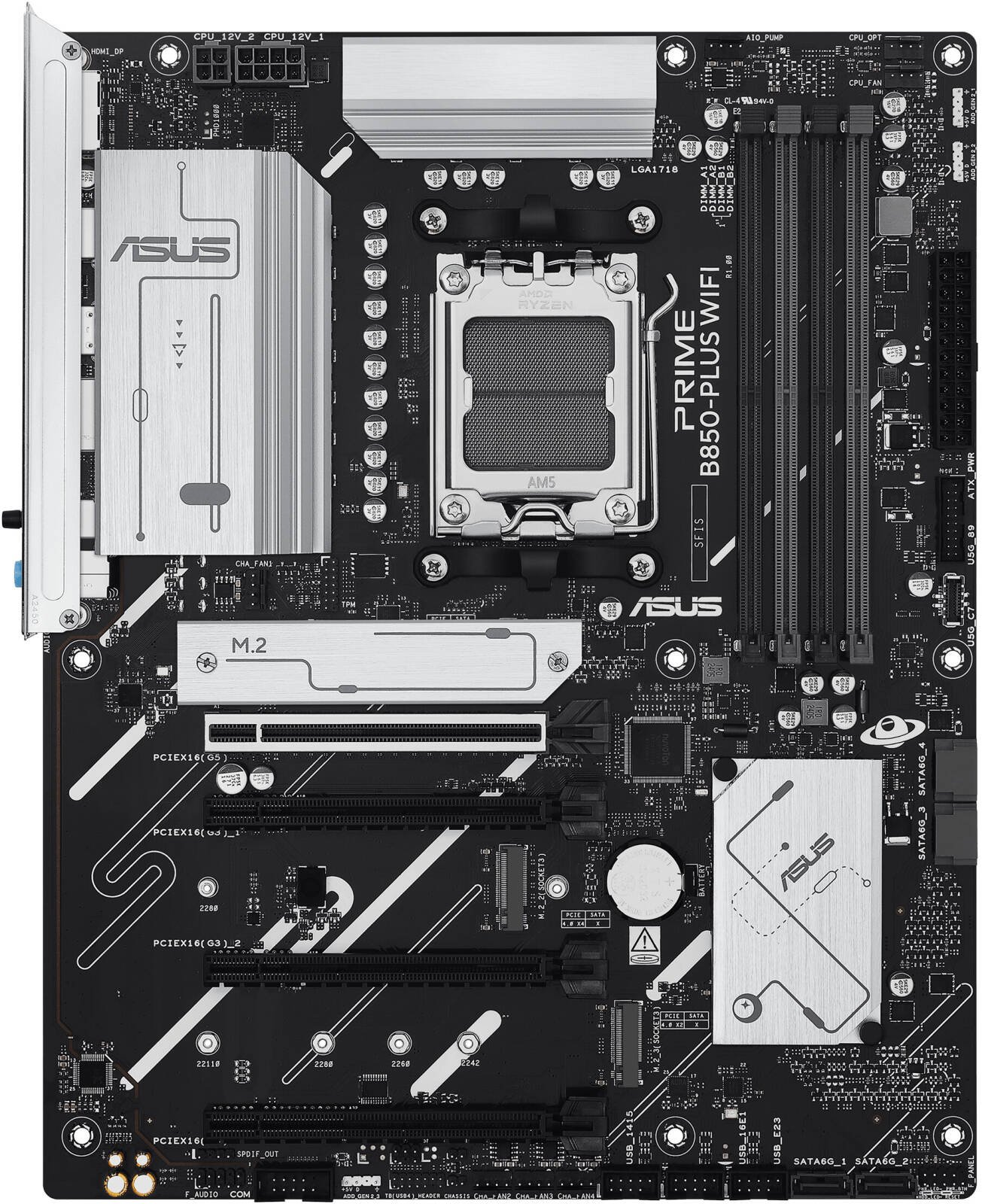

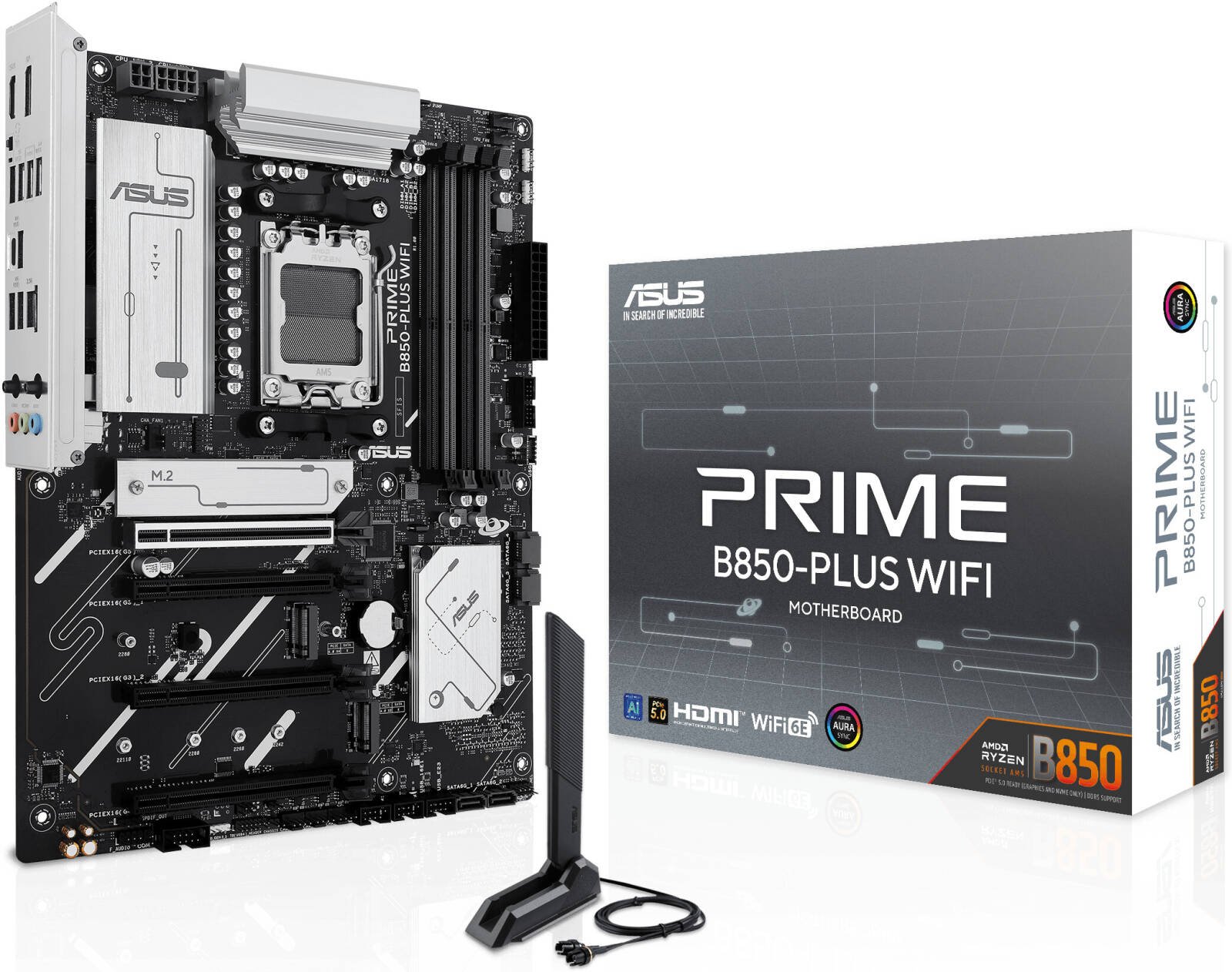

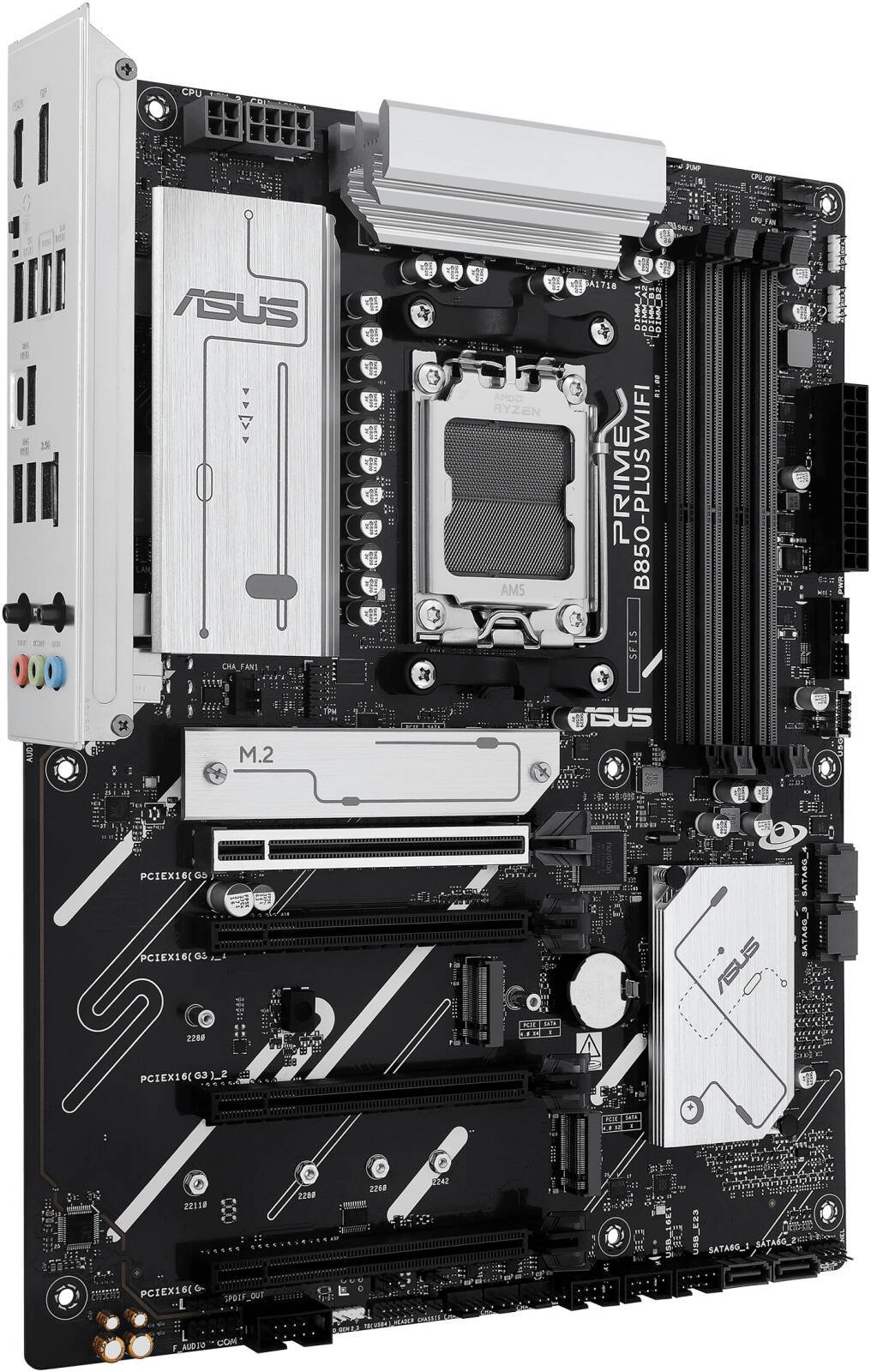

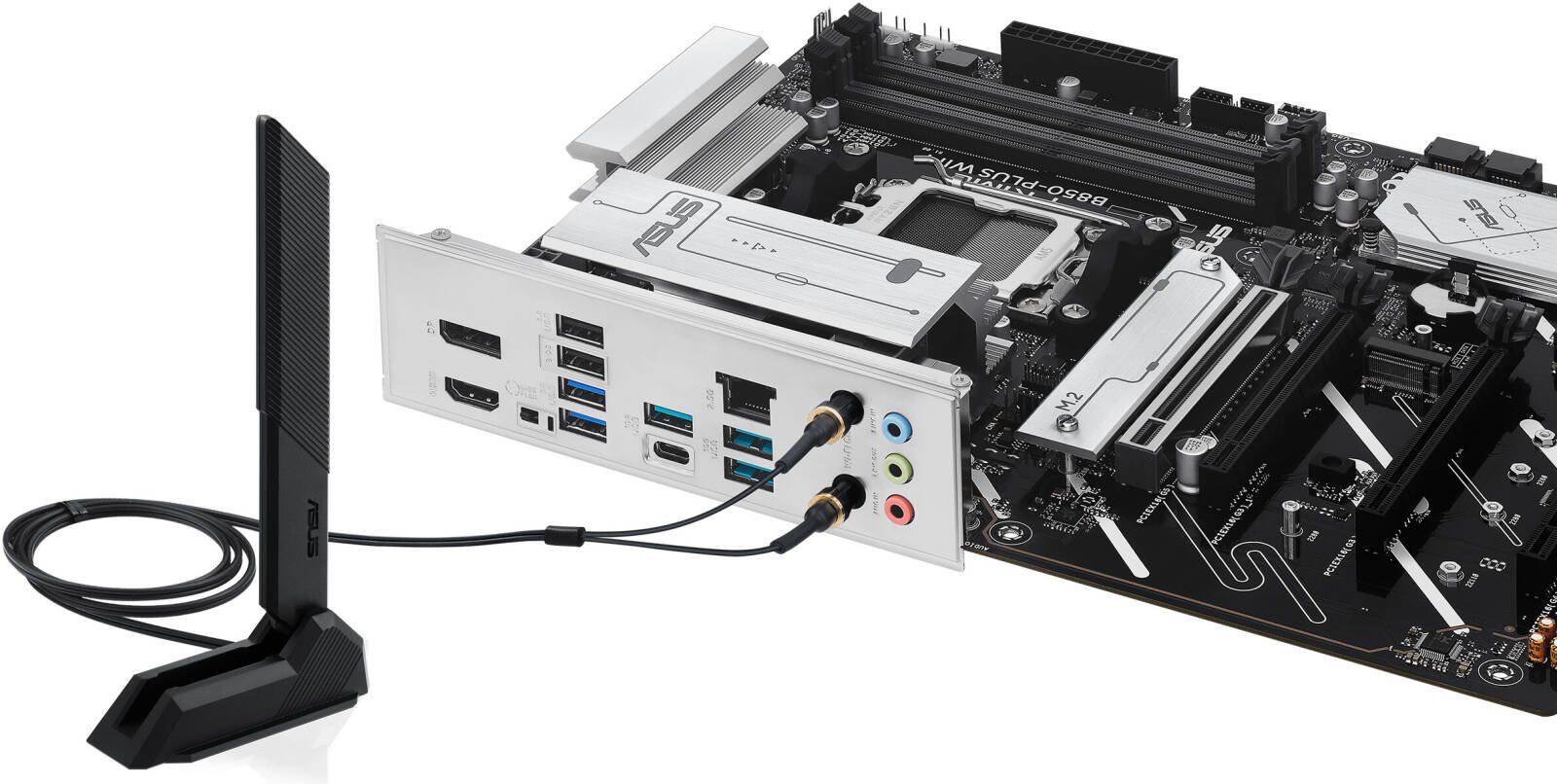

ASUS PRIME B850-PLUS WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots

879,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
  • Based on the AMD B850 chipset.
  • Memory: 4 DIMM slots supporting up to 256GB DDR5, with speeds up to 8000+ MT/s (OC). Supports AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP).
  • Storage: Three M.2 slots (one supporting PCIe 5.0 x4 up to 128 Gbps, two supporting PCIe 4.0), plus four SATA 6Gb/s ports.
  • Networking: Wi-Fi 6E (2×2, 802.11ax) supporting 2.4, 5, and 6 GHz bands, Bluetooth v5.3, and Realtek 2.5Gb Ethernet with ASUS LANGuard.
  • Rear I/O ports include multiple USB 10Gbps (Type-A and Type-C), USB 5Gbps, and USB 2.0 ports.
Model PRIME B850-PLUS WIFI
News & Updates Visit ASUS Support
CPU AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Chipset AMD B850 Chipset
Memory 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC), Dual channel, ECC & Non-ECC, EXPO™, AEMP
Graphics 1 × DisplayPort (max 8K@30Hz), 1 × HDMI 2.1 (max 4K@60Hz), depends on CPU
Expansion Slots - Ryzen 9000 & 7000: 1 × PCIe 5.0 x16 (x16)
- Ryzen 8000: 1 × PCIe 4.0 x16 (x8/x4)
- Chipset: 1 × PCIe 4.0 x16 (x4), 2 × PCIe 3.0 x16 (x1 each, share bandwidth with SATA6G_1/2)
Storage 3 × M.2 slots (PCIe 5.0 / 4.0 depending on CPU)
4 × SATA 6Gb/s ports
RAID support varies by CPU (Ryzen 9000: RAID 0/1/5/10, Ryzen 8000: RAID 0/1, Ryzen 7000: RAID 0/1/10)
Ethernet 1 × Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E (2×2, 2.4/5/6GHz)
Bluetooth® v5.3
USB (Rear) 1 × USB 10Gbps Type-C
3 × USB 10Gbps Type-A
2 × USB 5Gbps Type-A
2 × USB 2.0 Type-A
USB (Front) 1 × USB 5Gbps Type-C connector
1 × USB 5Gbps header (2 ports)
3 × USB 2.0 headers (6 ports)
* Type-C power delivery: max 5V/3A
Audio Realtek 7.1 Surround HD Audio CODEC, up to 24-Bit/192 kHz playback, shielding, premium capacitors, dedicated audio PCB layers

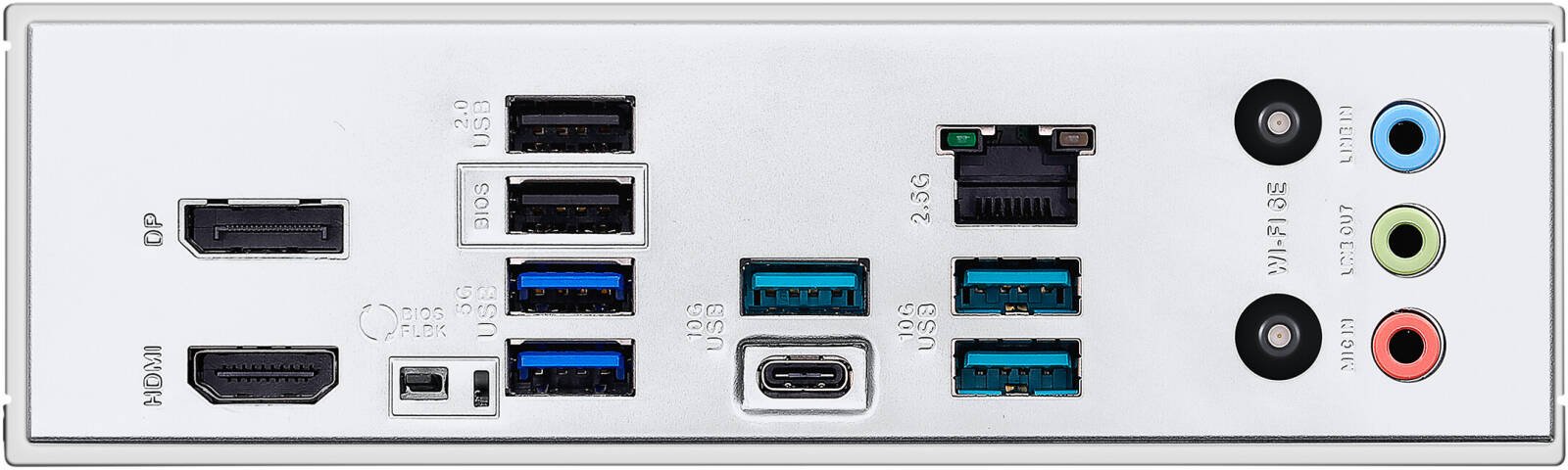

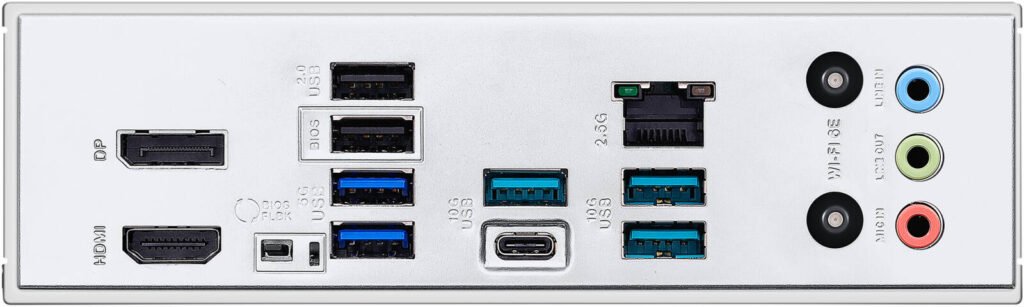

Back Panel I/O 1 × USB-C 10Gbps
3 × USB 10Gbps Type-A
2 × USB 5Gbps Type-A
2 × USB 2.0
1 × DisplayPort
1 × HDMI
1 × Wi-Fi module
1 × 2.5Gb Ethernet
3 × Audio jacks
1 × BIOS FlashBack™ button
Internal I/O - Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan
- Power: 1 × 24-pin, 1 × 8-pin CPU, 1 × 4-pin CPU
- Storage: 3 × M.2, 4 × SATA
- USB: 1 × USB-C 5Gbps, 1 × USB 5Gbps header, 3 × USB 2.0 headers
- Misc: 3 × ARGB Gen 2 headers, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF Out, TPM header, System Panel, Thunderbolt (USB4) header
Special Features ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, etc.), Q-Design (Q-Antenna, Q-DIMM, Q-Slot, Q-LED Core), Flexible M.2 heatsink, VRM heatsink, EZ DIY (BIOS FlashBack™, pre-mounted I/O shield), Aura Sync RGB
Software Features Armoury Crate, Aura Sync, Fan Xpert 2+, Power Saving, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Adobe CC trial, Norton 360 Deluxe trial, WinRAR trial
UEFI BIOS CrashFree BIOS 3, EZ Flash 3, MyHotkey, UEFI EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

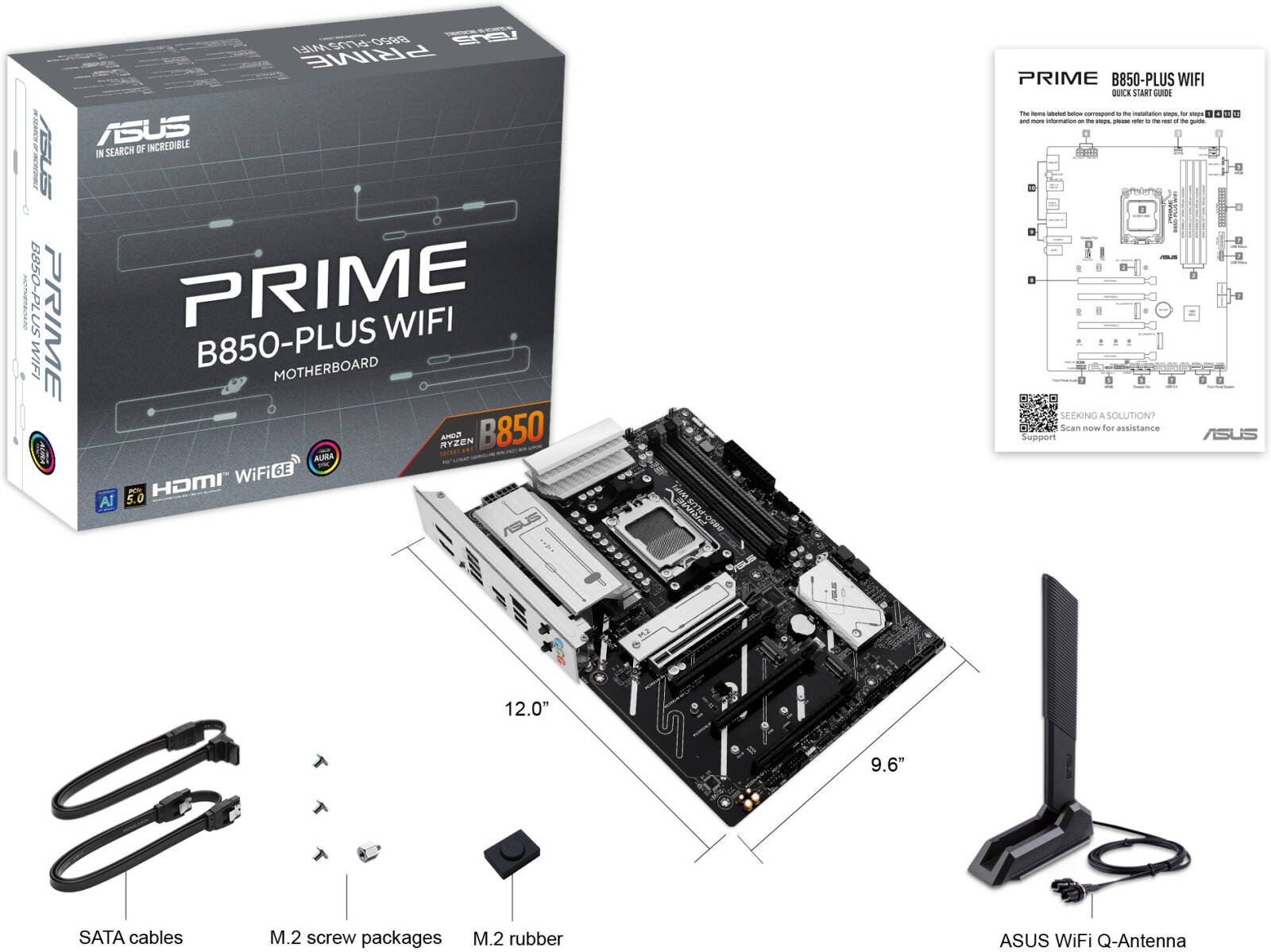

Accessories 2 × SATA cables, Wi-Fi antenna, 1 × M.2 rubber package, 3 × M.2 screw packages, Quick Start Guide
Operating System Windows® 11, Windows® 10 (64-bit)
Form Factor ATX, 30.5 × 24.4 cm (12" × 9.6")
