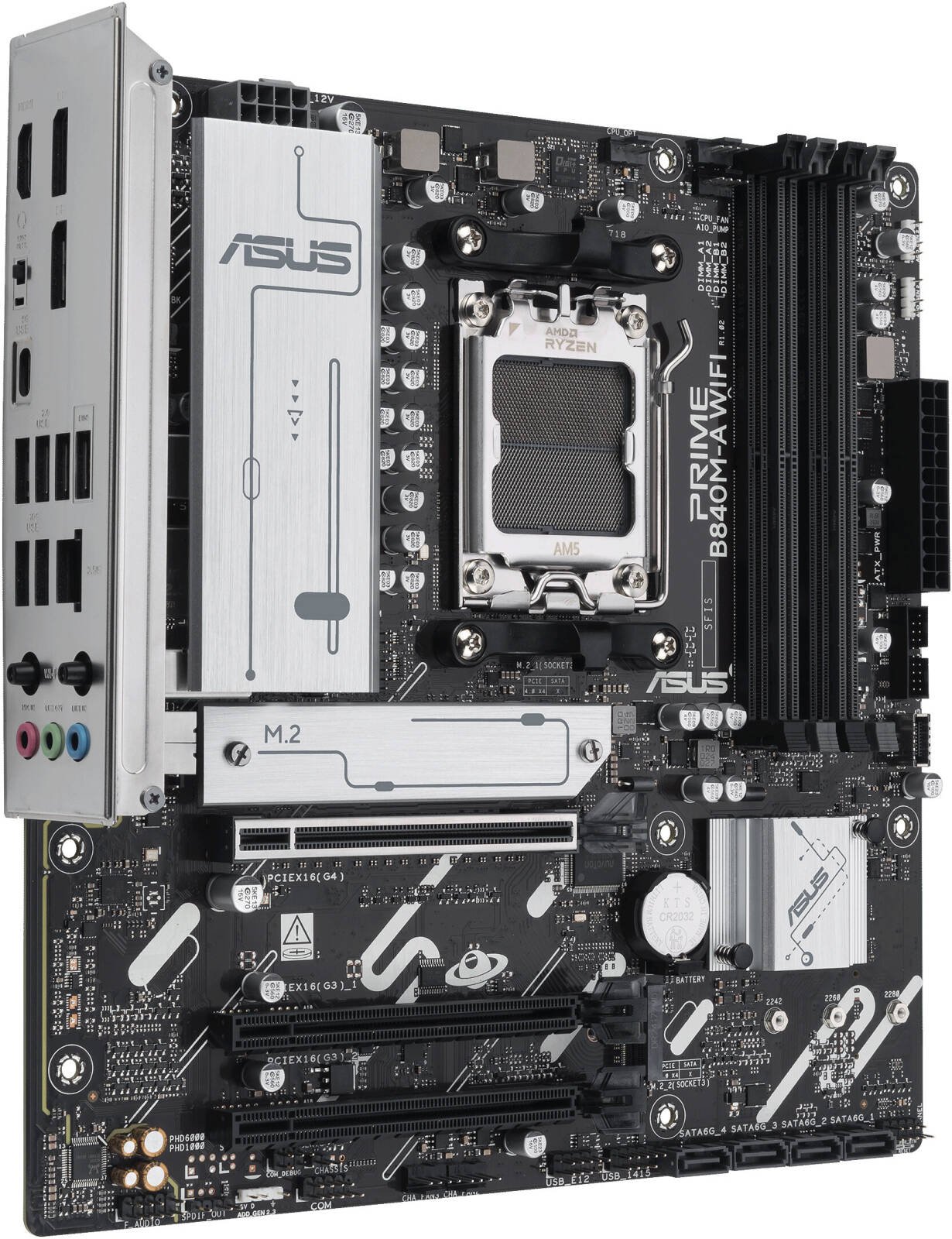

ASUS PRIME B840M-A WiFi AM5 Micro-ATX Motherboard, AMD B840 Chipset, 4x DIMM DDR5 Slot, Up to 192GB Max Memory, 1x PCIe 4.0 x16 SafeSlot Core+, 3x M.2 Slots, Wi-Fi & BT Connectivity

695,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 8+2+1 phase digital power design
  • AEMP for enhanced DDR5 performance
  • 2.5Gb Ethernet for faster data transfers
  • WiFi 6E for stable WiFi connection and lower latency
  • USB 5Gbps Type-C® for rapid data transmission
  • PCIe 4.0 slots for graphics card and storage
Model PRIME B840M-A WIFI
CPU AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors.
Chipset AMD B840 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5, up to 7600+MT/s (OC), ECC/Non-ECC, Dual-channel, EXPO™ support, ASUS AEMP.
Graphics 2 x DisplayPort (8K@30Hz), 1 x HDMI™ (4K@60Hz). Graphics specifications depend on CPU type.
Expansion Slots 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 (x1 mode).
Storage 3 x M.2 slots (PCIe 4.0/3.0 x4), 4 x SATA 6Gb/s ports. RAID support: RAID 0/1/5/10 (9000 series), RAID 0/1 (8000 series), RAID 0/1/10 (7000 series).
Ethernet 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard.
Wireless & Bluetooth Wi-Fi 6E (2x2, 802.11ax), Bluetooth® v5.3. Supported in Windows 11 or later.
USB (Rear) 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A).
USB (Front) 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports).
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC with jack-detection, premium capacitors, shielding, and up to 24-Bit/192kHz playback.

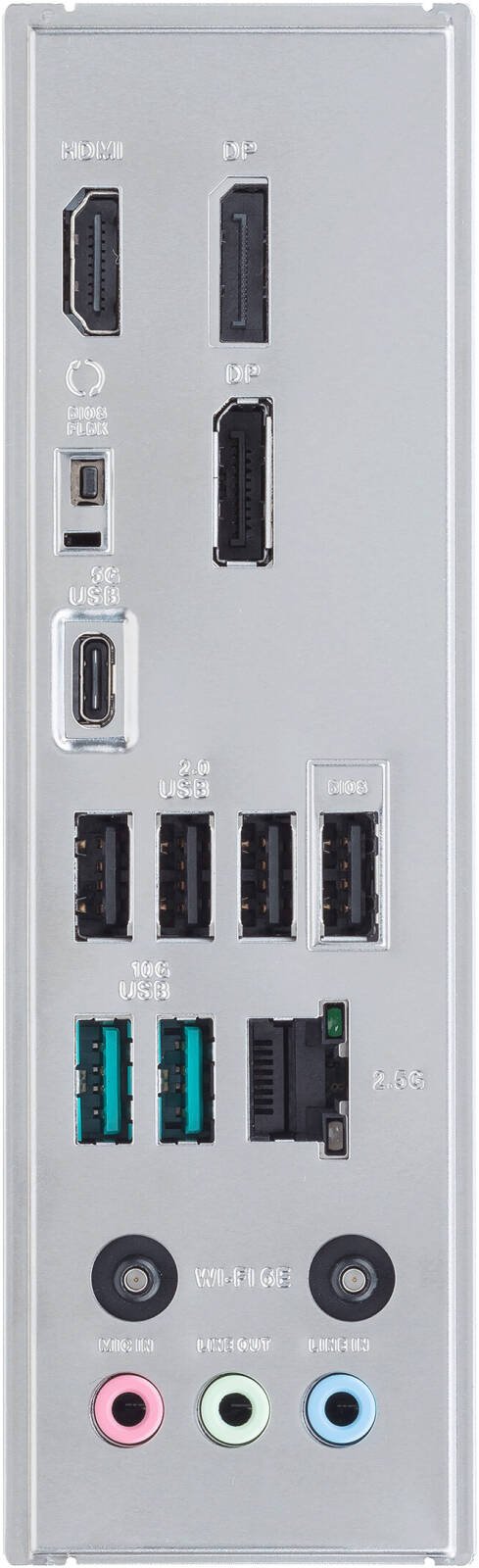

Back Panel I/O 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button.
Internal I/O CPU Fan (4-pin), CPU OPT Fan (4-pin), AIO Pump (4-pin), Chassis Fans (3 x 4-pin), Clear CMOS, COM Port, Front Panel Audio, S/PDIF Out, SPI TPM, 3 x Addressable Gen 2 headers.
Special Features ASUS 5X Protection III, Q-Design (Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot), M.2/VRM heatsinks, Aura Sync, BIOS FlashBack™.
Software Features Armoury Crate (Aura Creator, Aura Sync), ASUS GlideX, TurboV Core, ASUS CPU-Z, Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days Trial), WinRAR (40 Days Trial).
UEFI BIOS ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3), MyHotkey, 256 Mb Flash ROM.

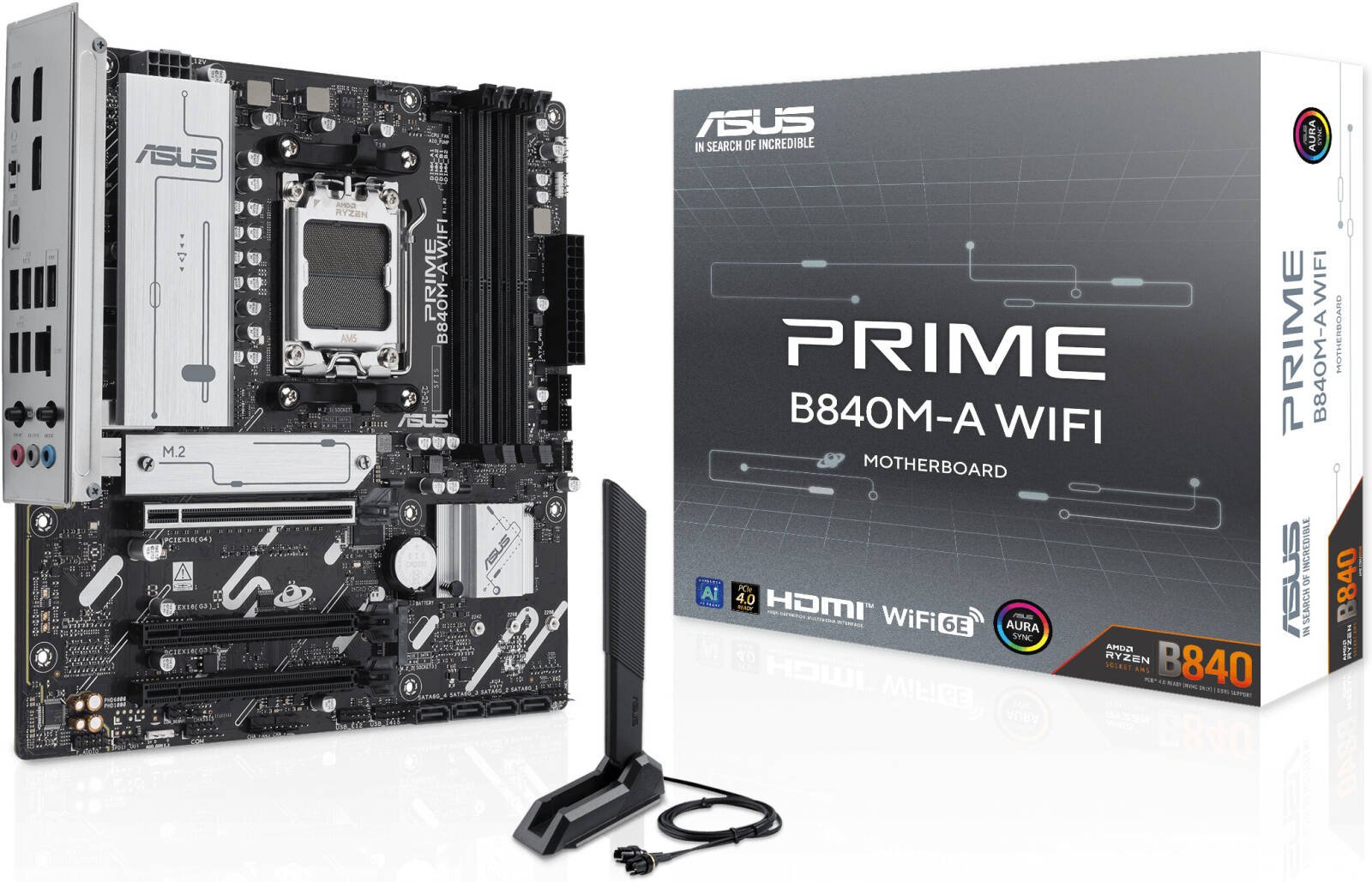

Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x M.2 SSD screws, Quick Start Guide.
Operating System Windows 11, Windows 10 (64-bit).
Form Factor micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm).
