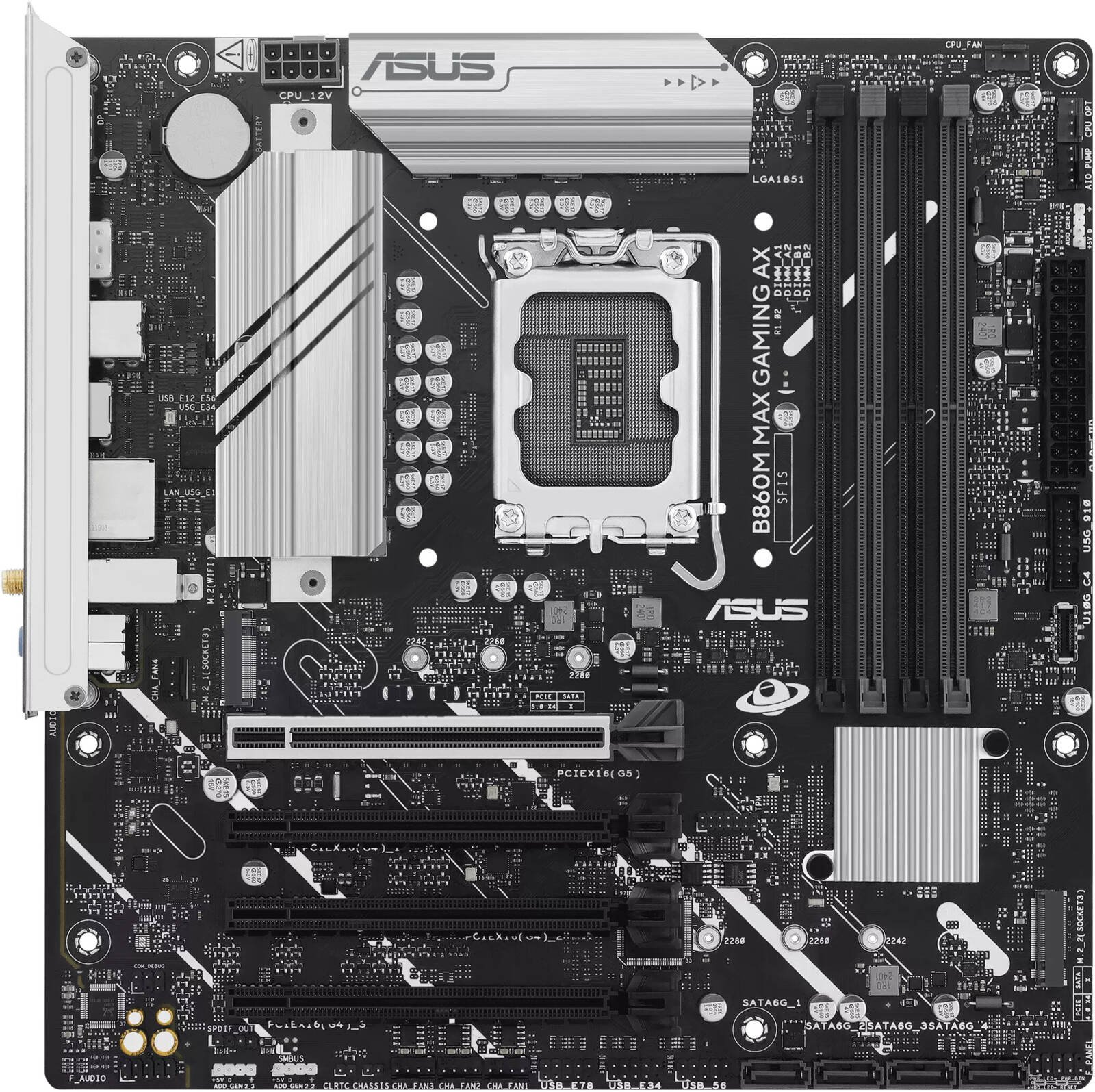

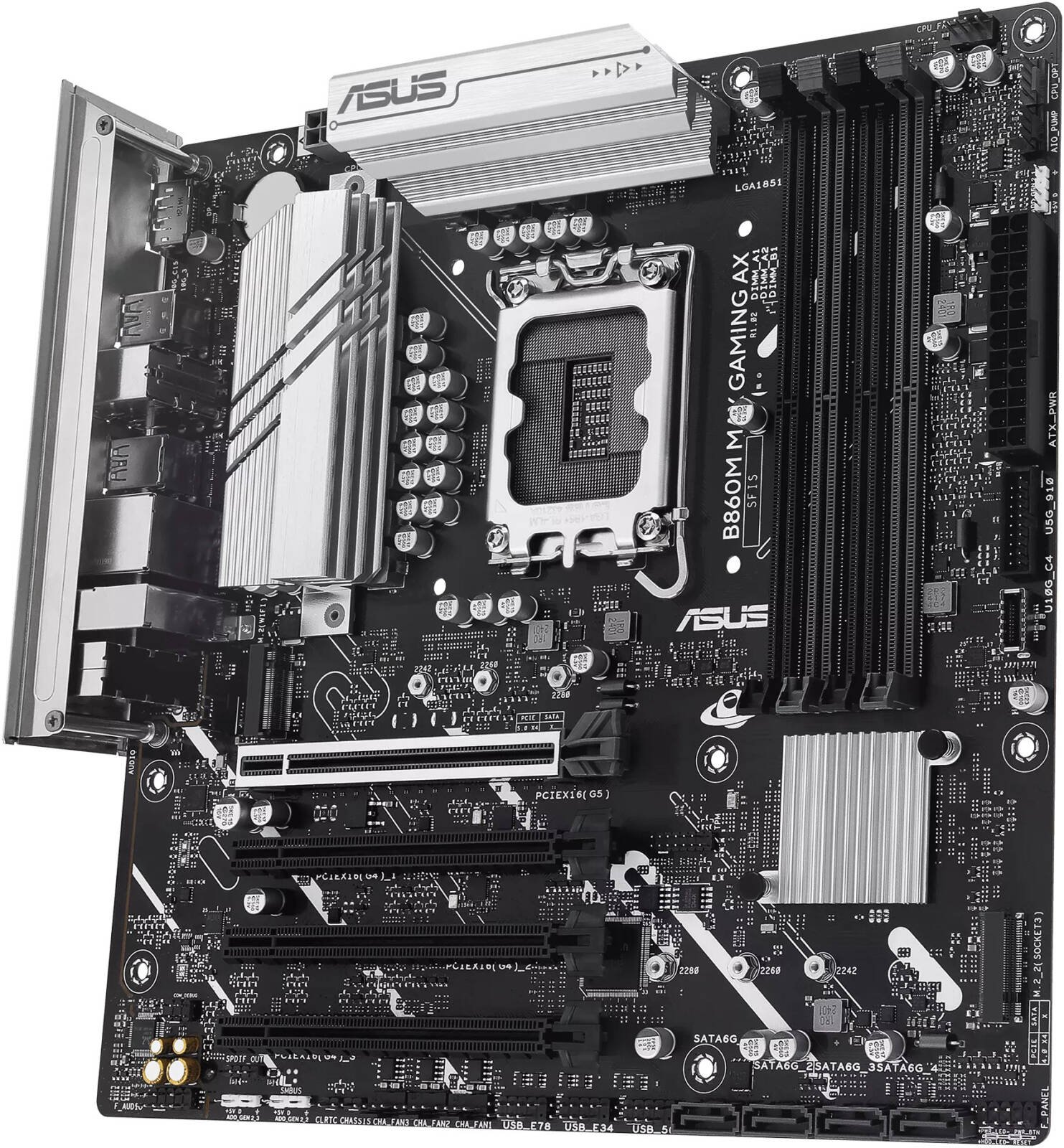

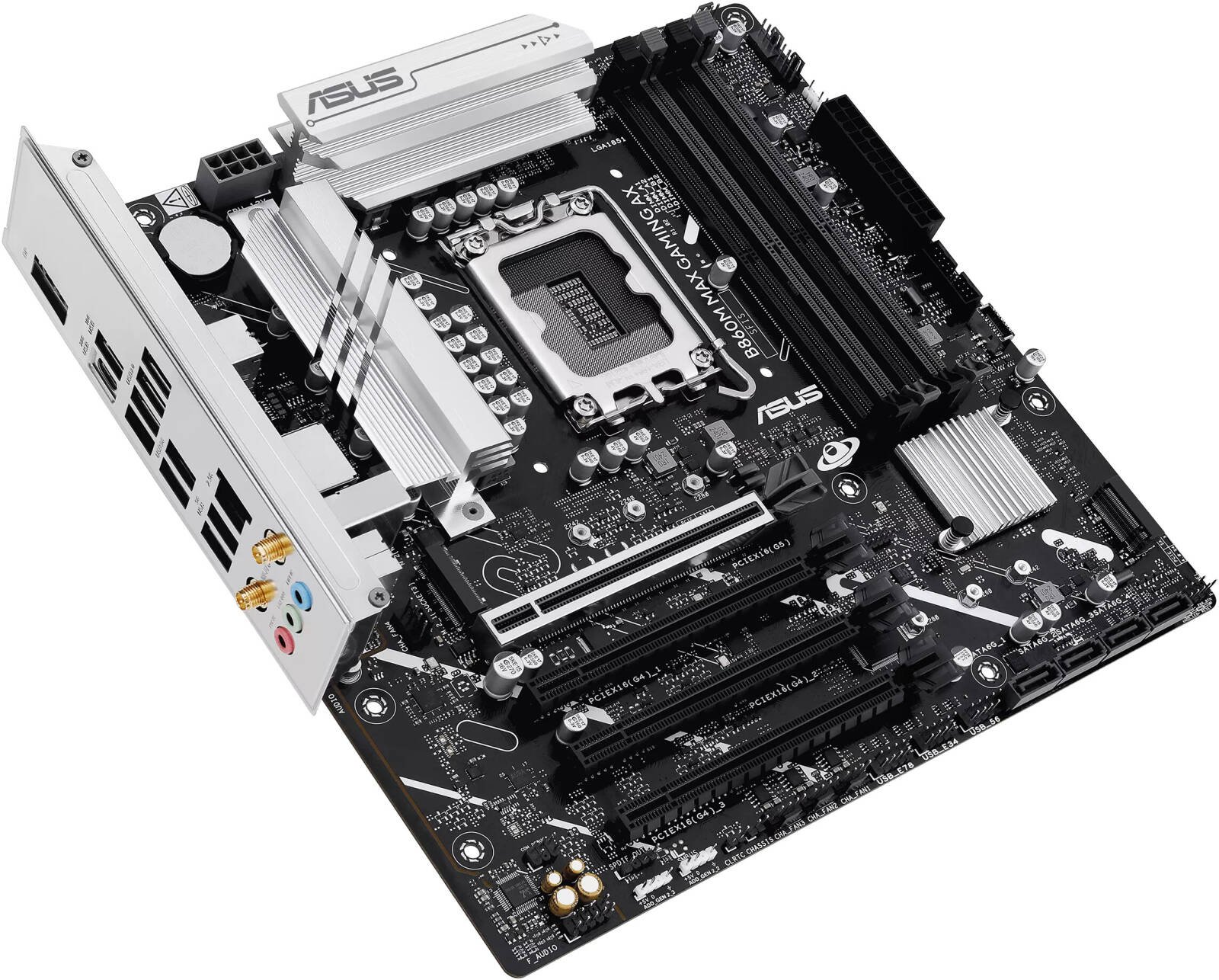

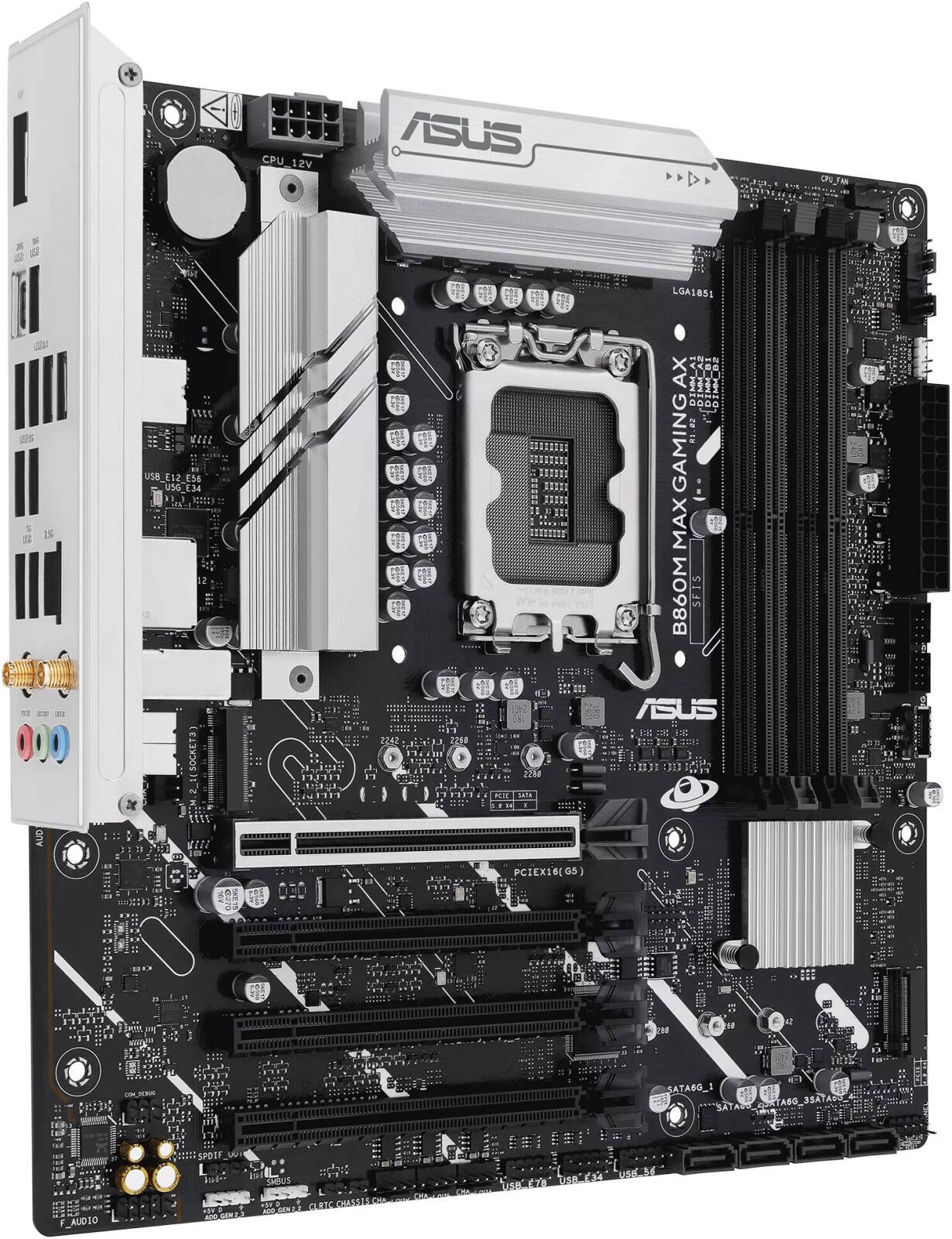

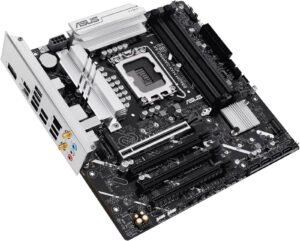

ASUS B860M MAX GAMING AX LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 Safeslot, 3 x M.2 Slots

735,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 6(80A) + 1(80A) + 1(80A) + 1(80A) power stages with enlarged VRM heatsinks
  • AI Solutions for advanced AI capabilities
  • AEMP III for enhanced DDR5 performance
  • WiFi 6 for stable WiFi connection and lower latency
  • USB 20Gbps Type-C® for ultrafast data transmission
  • PCIe 5.0 slots for graphics card and storage
CPU Support Intel® Core™ Ultra Processors (Series 2), LGA1851; Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0
Chipset Intel® B860 Chipset
Memory 4× DIMM, up to 256GB DDR5; up to 8666+ MT/s (OC); Non-ECC Unbuffered / CUDIMM; Dual-channel; DIMM Fit; XMP support; ASUS AEMPIII
Graphics 1× DisplayPort (max 4K@60Hz); 1× USB-C 20Gbps with DP Alt (max 4K@120Hz)
Expansion Slots CPU: 1× PCIe 5.0 x16; Chipset: 1× PCIe 4.0 x16 (x4 mode), 2× PCIe 4.0 x16 (x1 mode)
Storage 3× M.2 + 4× SATA 6Gb/s; M.2_1 PCIe 5.0 x4; M.2_2 PCIe 4.0 x4; M.2_3 PCIe 4.0 x2; Intel RST RAID 0/1/5/10
Ethernet Realtek 2.5Gb Ethernet; ASUS LANGuard
Wireless / Bluetooth Wi-Fi 6 (1×1, 2.4/5GHz); Bluetooth 5.4
USB (Rear) 10 ports: 1× USB-C 20Gbps, 1× USB-A 10Gbps, 4× USB-A 5Gbps, 4× USB 2.0
USB (Front) 9 ports via headers: 1× USB-C 10Gbps, 2× USB-A 5Gbps, 6× USB 2.0
Audio Realtek 7.1 HD Audio CODEC; 24-bit/192kHz; Shielding, premium caps, dedicated PCB layers

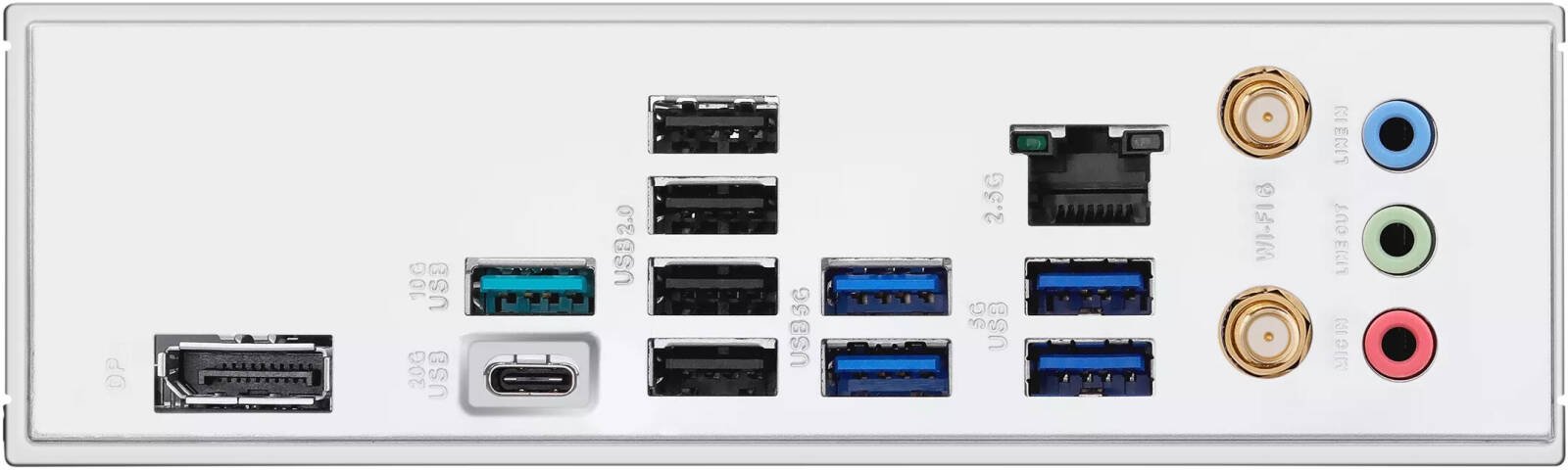

Back Panel I/O USB: 1× 20Gbps C, 1× 10Gbps A, 4× 5Gbps A, 4× USB2.0; 1× DisplayPort; Wi-Fi module; 2.5Gb LAN; 3× audio jacks
Internal I/O — Cooling CPU fan, CPU OPT fan, AIO pump, 4× chassis fan headers
Internal I/O — Power 24-pin ATX, 8-pin CPU
Internal I/O — Storage 3× M.2, 4× SATA
Internal I/O — USB USB-C 10Gbps connector; USB 5Gbps header (2 ports); 3× USB2.0 headers (6 ports)
Internal I/O — Misc 3× Addressable Gen2 RGB; Clear CMOS; Chassis intrusion; Front audio; S/PDIF out; TPM header; Front panel header
Special Features ASUS 5X Protection III; Q-Design tools; VRM heatsink; EZ DIY features; Aura Sync
Software Armoury Crate suite; DriverHub; GlideX; ASUS CPU-Z; Norton trial; WinRAR trial; UEFI utilities
BIOS 256 (128+128) Mb Flash ROM; UEFI AMI BIOS
Manageability WOL by PME; PXE

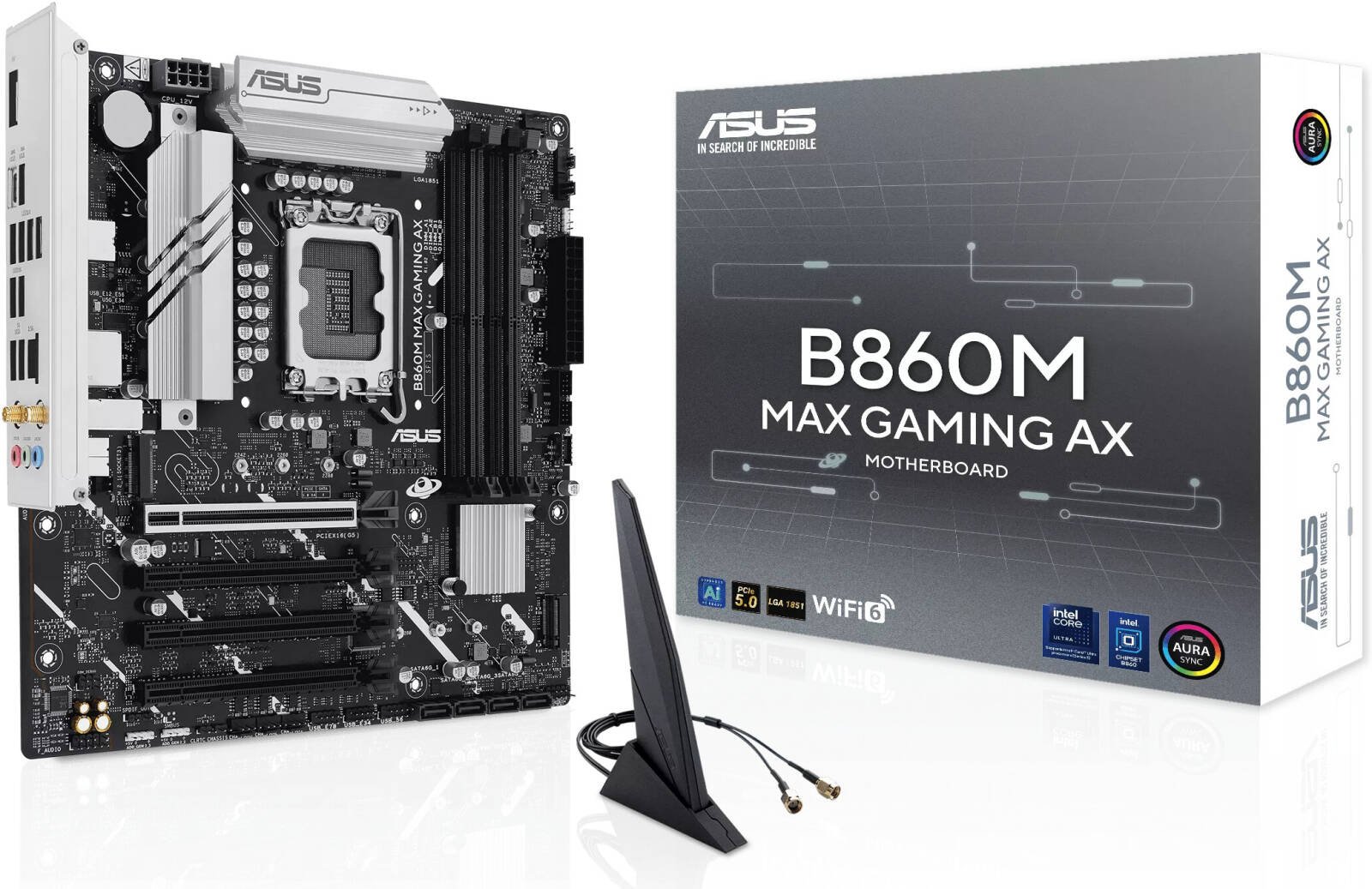

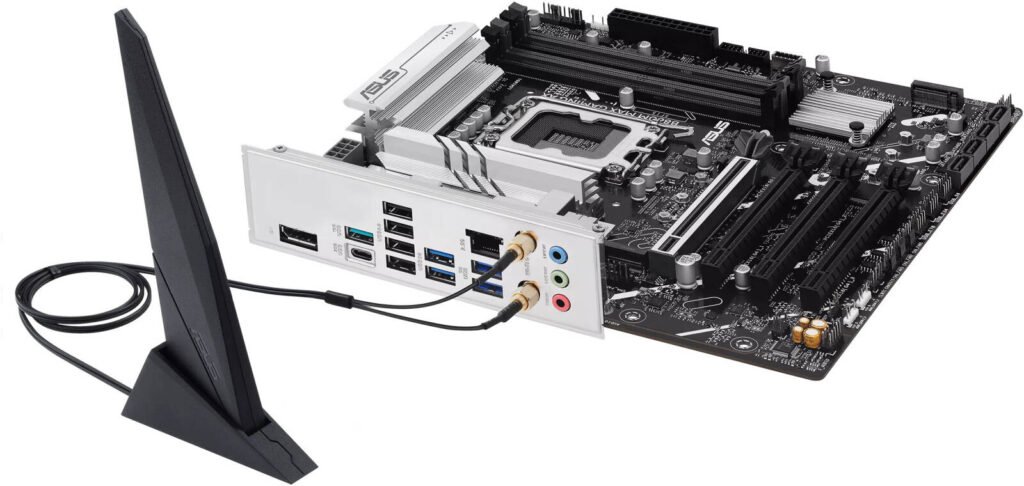

Accessories 2× SATA cables; Wi-Fi moving antenna; 2× M.2 screw packs; Quick guide
OS Support Windows 11 / Windows 10 64-bit
Form Factor micro-ATX; 9.6×9.6 in (24.4×24.4 cm)
