ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi & BT 5.4

785,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 8+2+1 phase digital power design
  • AEMP for enhanced DDR5 performance
  • USB 10Gbps Type-C® for rapid data transmission | USB 5Gbps Type-C® for rapid data transmission
  • WiFi 6 for stable WiFi connection and lower latency
  • PCIe 5.0 slots for graphics card and storage
  • Pre-mounted I/O shield for safeguarding ports and enhancing aesthetics
Model B850M MAX GAMING WIFI
CPU Support AMD Socket AM5: Ryzen™ 9000 / 8000 / 7000 Series (check support list on ASUS site)
Chipset AMD B850
Memory 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC)
Dual channel, ECC & Non-ECC Un-buffered DIMM
Supports EXPO™, AEMP, On-Die ECC
Graphics 1 × DisplayPort 1.4 (max 8K@30Hz)
1 × HDMI 2.1 (max 4K@60Hz)
*Depends on CPU
Expansion Slots Ryzen™ 9000 / 7000: 1 × PCIe 5.0 x16, 3 × PCIe 4.0 x16 (x1 mode)
Ryzen™ 8000: 1 × PCIe 4.0 x16 (x8/x4), 3 × PCIe 4.0 x16 (x1 mode)
Storage 3 × M.2, 4 × SATA 6Gb/s
M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000)
M.2_2: PCIe 4.0 x4
M.2_3: PCIe 4.0 x2
RAID support varies by CPU
Ethernet Realtek 1Gb Ethernet + ASUS LANGuard
Wireless & BT Wi-Fi 6 (1×1, 2.4/5GHz)
Bluetooth® v5.4
USB (Rear I/O) 2 × USB 10Gbps (1 × Type-A, 1 × Type-C)
2 × USB 5Gbps (Type-A)
5 × USB 2.0 (Type-A)
USB (Front I/O) 1 × USB 5Gbps (Type-C)
2 × USB 5Gbps headers (4 ports)
2 × USB 2.0 headers (4 ports)
Audio Realtek 7.1 Surround HD Audio CODEC}
Jack-detection, Multi-streaming, Retasking
Up to 24-bit/192 kHz playback
Audio shielding, Premium caps, Dedicated layers

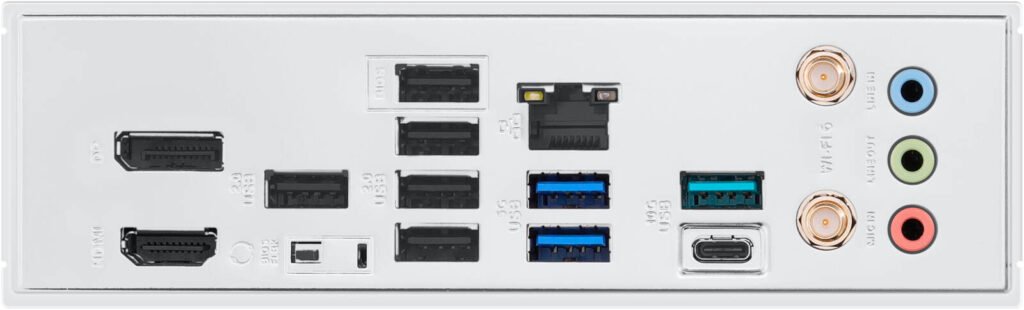

Back Panel I/O 2 × USB 10Gbps, 2 × USB 5Gbps, 5 × USB 2.0
1 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module
1 × Realtek 1Gb LAN, 3 × Audio jacks
1 × BIOS FlashBack™ button
Internal I/O Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan
Power: 24-pin Main, 8-pin +12V, 4-pin +12V
Storage: 3 × M.2, 4 × SATA
USB: 1 × USB-C 5Gbps, 2 × USB 5Gbps headers, 2 × USB 2.0 headers
Misc: 3 × ARGB Gen 2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel
Special Features ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, Stainless I/O)
ASUS Q-Design (Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot)
ASUS Thermal Solution (VRM heatsink)
EZ DIY (Pre-mounted I/O, BIOS FlashBack™ button/LED)
Aura Sync RGB (ARGB Gen 2 headers)
Software Armoury Crate, Aura Creator/Sync, Fan Xpert 2+, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360 (60-day trial), WinRAR (40-day trial)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey
Manageability WOL by PME, PXE
Accessories 2 × SATA cables
1 × Wi-Fi antenna
2 × M.2 screw packages
1 × Quick Start Guide
OS Support Windows® 11 / 10 64-bit
Form Factor mATX (24.4 × 24.4 cm / 9.6 × 9.6 in)
