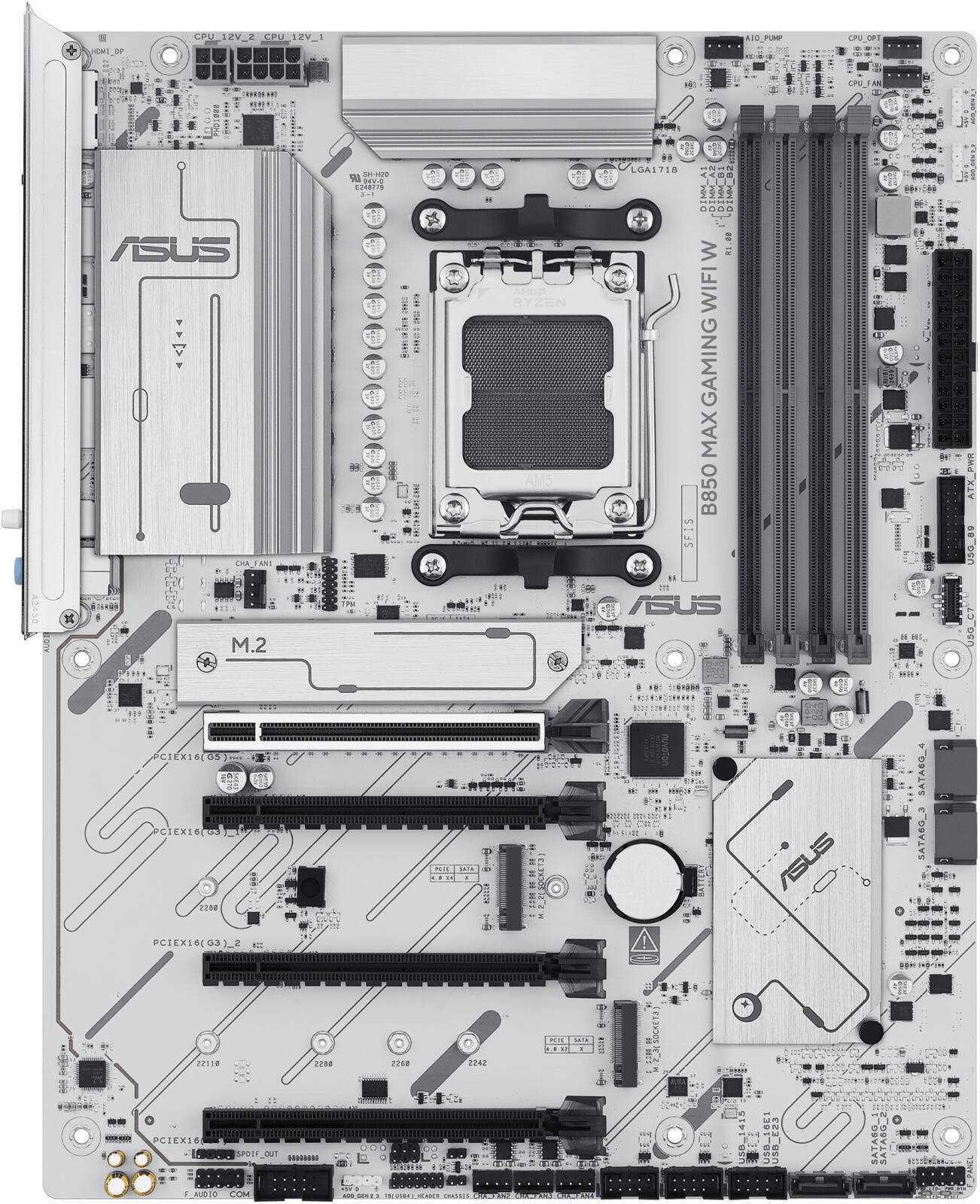

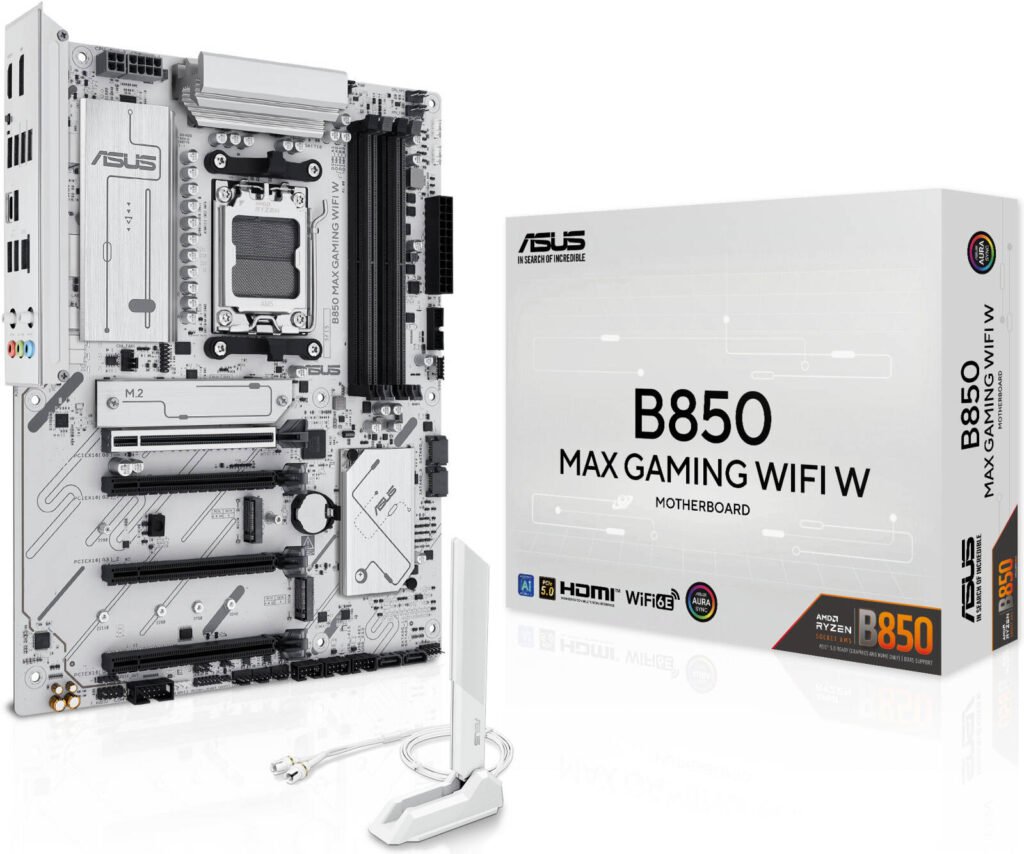

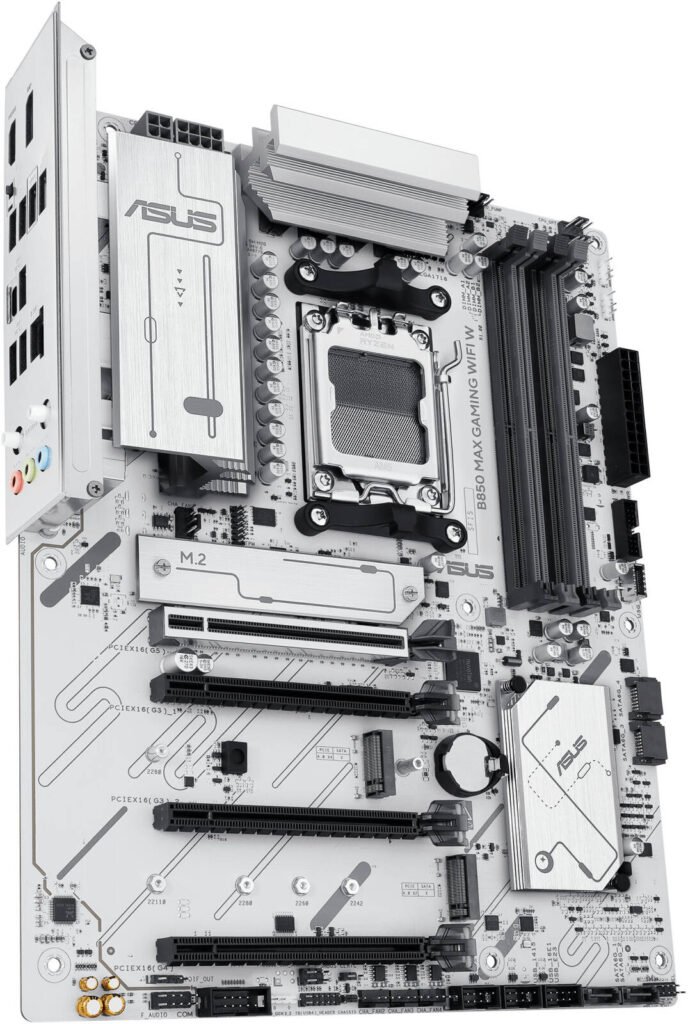

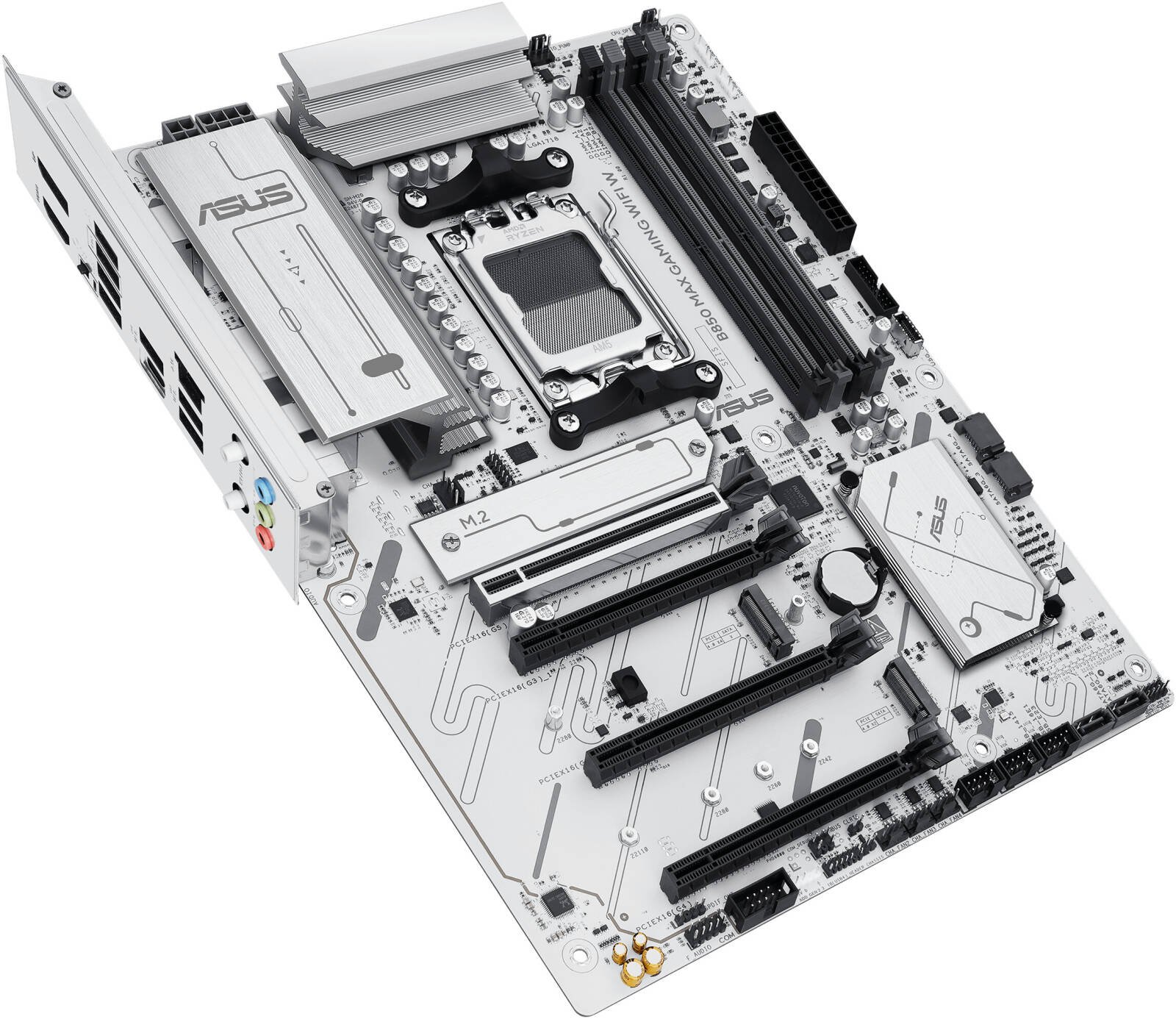

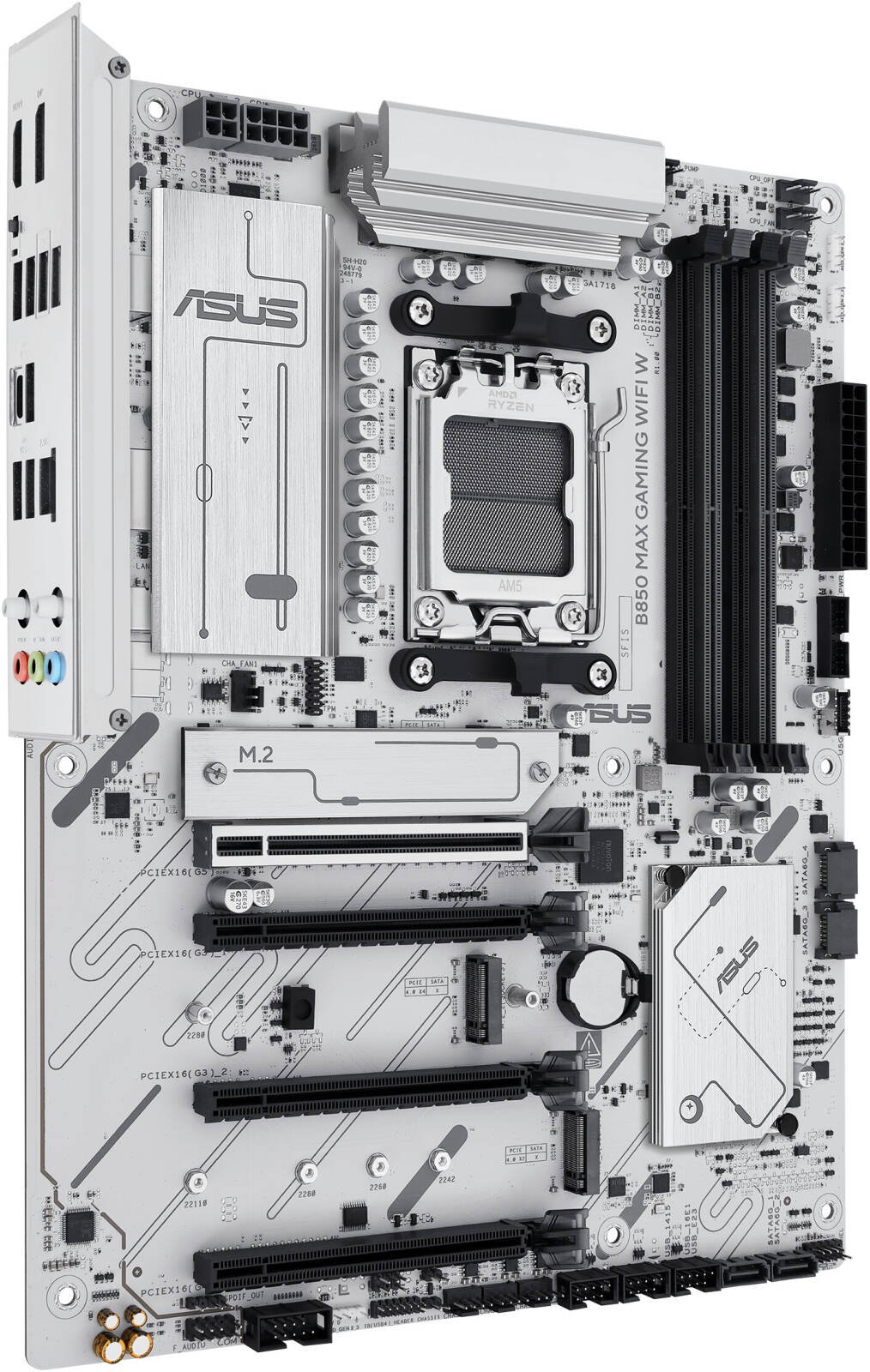

ASUS B850 MAX Gaming WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3, White
945,00 AED
- 8+2+1 phase digital power design
- AEMP for enhanced DDR5 performance
- 2.5Gb Ethernet for faster data transfers
- WiFi 6E for stable WiFi connection and lower latency
- USB 10Gbps Type-C® for rapid data transmission
- PCIe 5.0 slots for graphics card and storage
- Pre-mounted I/O shield for safeguarding ports and enhancing aesthetics
| Model | B850 MAX GAMING WIFI W |
| CPU Support | AMD Socket AM5: Ryzen™ 9000 / 8000 / 7000 Series (check ASUS site for support) |
| Chipset | AMD B850 |
| Memory | 4 × DIMM slots, up to 256GB DDR5, up to 8000+ MT/s (OC) Dual channel, ECC & Non-ECC, Supports EXPO™ & AEMP, On-Die ECC |
| Graphics | 1 × DisplayPort 1.4 (max 8K@30Hz) 1 × HDMI 2.1 (max 4K@60Hz) |
| Expansion Slots | Ryzen™ 9000/7000: 1 × PCIe 5.0 x16 Ryzen™ 8000: 1 × PCIe 4.0 x16 (x8/x4) B850 Chipset: 1 × PCIe 4.0 x16 (x4), 2 × PCIe 3.0 x16 (x1, share SATA6G bandwidth) |
| Storage | 3 × M.2 slots, 4 × SATA 6Gb/s ports M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) M.2_2: PCIe 4.0 x4 (Ryzen 9000/7000/8000) M.2_3: PCIe 4.0 x2 (B850) RAID support varies by CPU |
| Ethernet | Realtek 2.5Gb Ethernet + ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2×2, 2.4/5/6GHz, Windows 11 only) Bluetooth® v5.3 |
| USB (Rear I/O) | 4 × USB 10Gbps (3 × Type-A, 1 × Type-C) 2 × USB 5Gbps (Type-A) 2 × USB 2.0 (Type-A) |
| USB (Front I/O) | 1 × USB 5Gbps Type-C 1 × USB 5Gbps header (2 ports) 3 × USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 HD Audio CODEC Jack-detection, Multi-streaming, RetaskingUp to 24-bit/192 kHz playbackAudio shielding, premium caps, dedicated PCB layers |

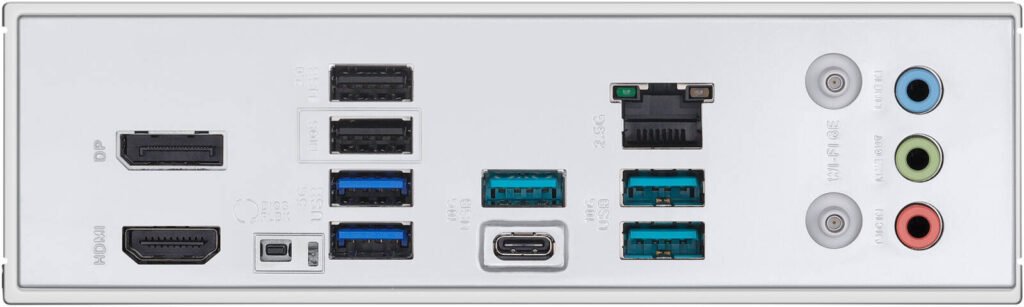

| Back Panel I/O | 1 × USB 10Gbps Type-C, 3 × USB 10Gbps Type-A2 × USB 5Gbps, 2 × USB 2.01 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module1 × Realtek 2.5Gb LAN, 3 × Audio jacks, 1 × BIOS FlashBack™ button |
| Internal I/O | 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fans Power: 24-pin, 8-pin +12V, 4-pin +12V Storage: 3 × M.2, 4 × SATA USB: 1 × USB-C 5Gbps, 1 × USB 5Gbps header (2 ports), 3 × USB 2.0 headers (6 ports) Misc: 3 × ARGB Gen2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel, Thunderbolt™ (USB4®) header |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless I/O) Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) Thermal Solution: Flexible M.2 heatsink, VRM heatsink EZ DIY: BIOS FlashBack™, Pre-mounted I/O shield, SafeSlot Aura Sync: Addressable RGB Gen 2 headers |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360 (60-day), WinRAR (40-day) |
| UEFI BIOS | CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey, 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 × SATA 6Gb/s cables, 1 × Wi-Fi Q-Antenna, 1 × M.2 rubber package, 3 × M.2 screw packages, 1 × Quick start guide |
| OS Support | Windows® 11 / 10 64-bit |
| Form Factor | ATX, 12 × 9.6 in (30.5 × 24.4 cm) |
