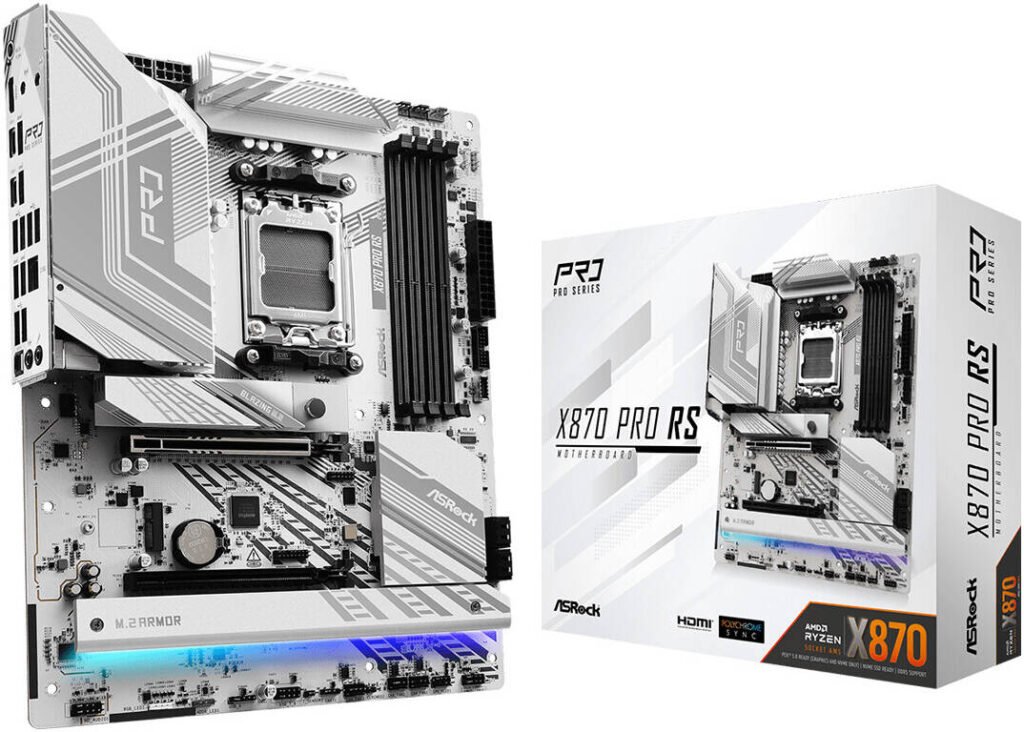

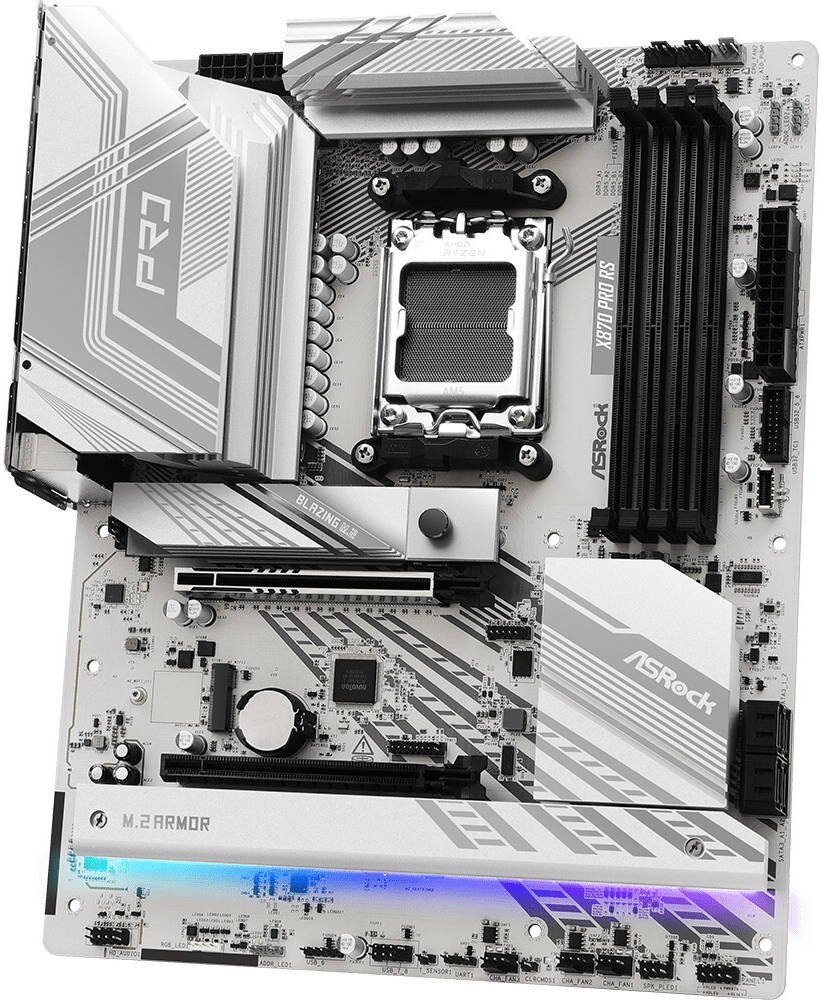

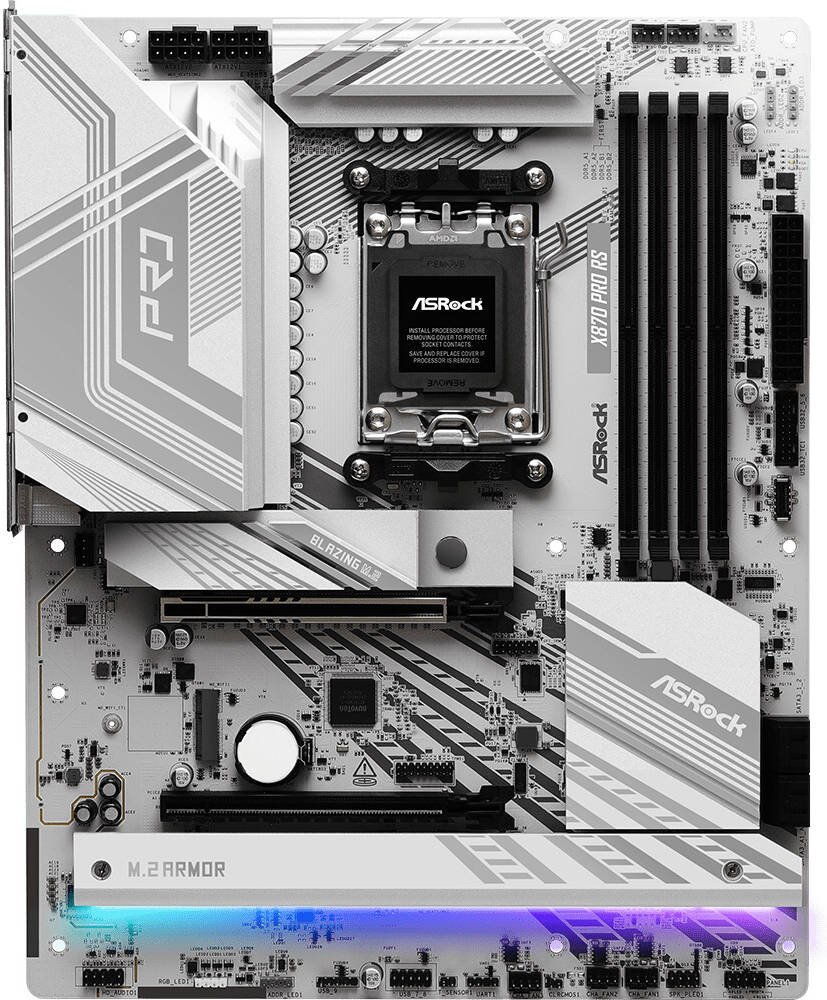

ASRock X870 Pro RS AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, PCIe 5.0 x16 & PCIe 4.0 x16 Slot, 3x M.2 Slots

859,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
  • 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
  • 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • Realtek 2.5G LAN
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
Unique Features Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability: 14+2+1 Power Phase, Enlarged Heatsink Armor, Flexible I/O Shield
Ultrafast Connectivity: 2.5G LAN
EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer
EZ Troubleshooter: ASRock Post Status Checker
CPU Supports AMD Socket AM5 Ryzen™ 9000, 8000, 7000 Series Processors*
*Availability of expansion slots may vary by CPU.
Chipset AMD X870
Memory Dual Channel DDR5, 4 x DDR5 DIMM Slots (ECC/non-ECC, un-buffered, up to 8000+ MHz OC), Max Capacity: 256GB, XMP & EXPO support
BIOS 256Mb AMI UEFI Legal BIOS with GUI
Graphics Integrated AMD RDNA™ (varies by CPU), HDMI 2.1 (4K 120Hz), USB4 (8K 30Hz)*
*USB4 ports require CPUs with embedded graphics.
Audio 7.1 CH HD Audio (Realtek ALC1220), Impedance Sensing, Nahimic Audio
LAN 2.5G Dragon RTL8125BG, Auto Bandwidth Control, Optimized Modes
Slots PCIe 5.0 x16 (x16 mode), PCIe 4.0 x16 (x4 mode), M.2 Socket (Key E), AMD CrossFire™, Gold Contact PCIe Slot
Storage M.2 Sockets (Gen5, Gen4, Gen3), SATA3 Ports (6 Gb/s), NVMe Boot Disk Support, RAID (0, 1, 10 for M.2)
USB Rear: 2 x USB4 Type-C, 4 x USB 3.2 Gen1 Type-A, 6 x USB 2.0
Front: 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 Type-A, 3 x USB 2.0
Connectors 1 x RGB LED Header, 3 x Addressable LED Headers, Fan & Power Connectors, Front Panel Audio, USB Headers

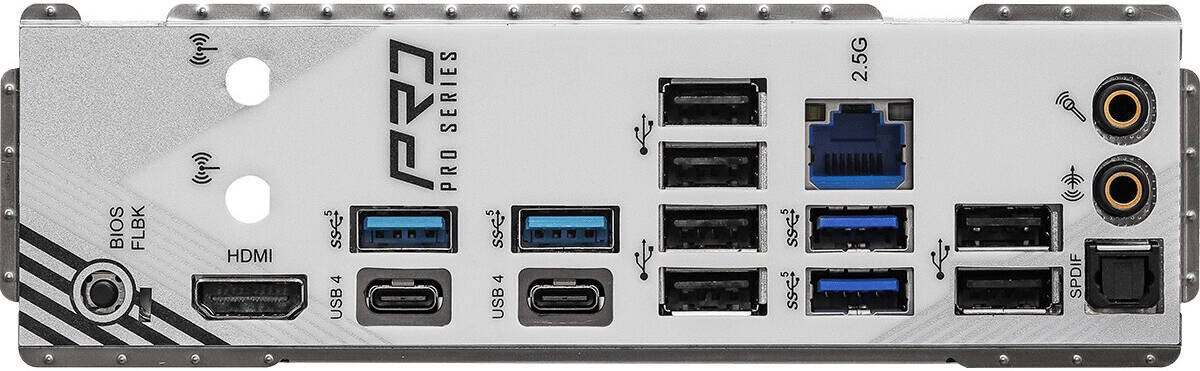

Rear I/O Ports HDMI, Optical SPDIF, 2 x USB4 Type-C, 4 x USB 3.2 Gen1 Type-A, 6 x USB 2.0, RJ-45 LAN, BIOS Flashback Button, Audio Jacks (Gold)
Software/UEFI ASRock A-Tuning, Dragon 2.5G LAN Software, Polychrome SYNC, EZ Mode, Full HD UEFI
Accessories 2 x SATA Data Cables, 1 x M.2 Screw
Form Factor ATX (12.0-in x 9.6-in), 8 Layer PCB
OS Microsoft Windows® 10/11 (64-bit)
Certifications FCC, CE, ErP/EuP Ready
