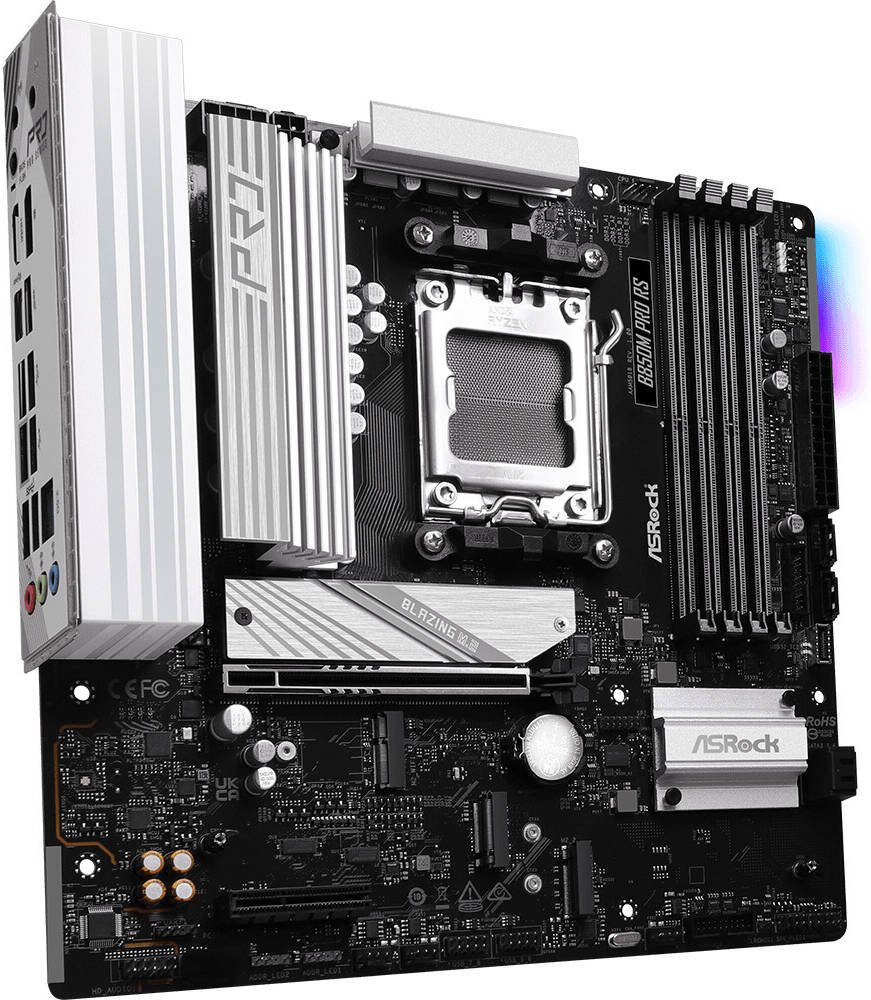

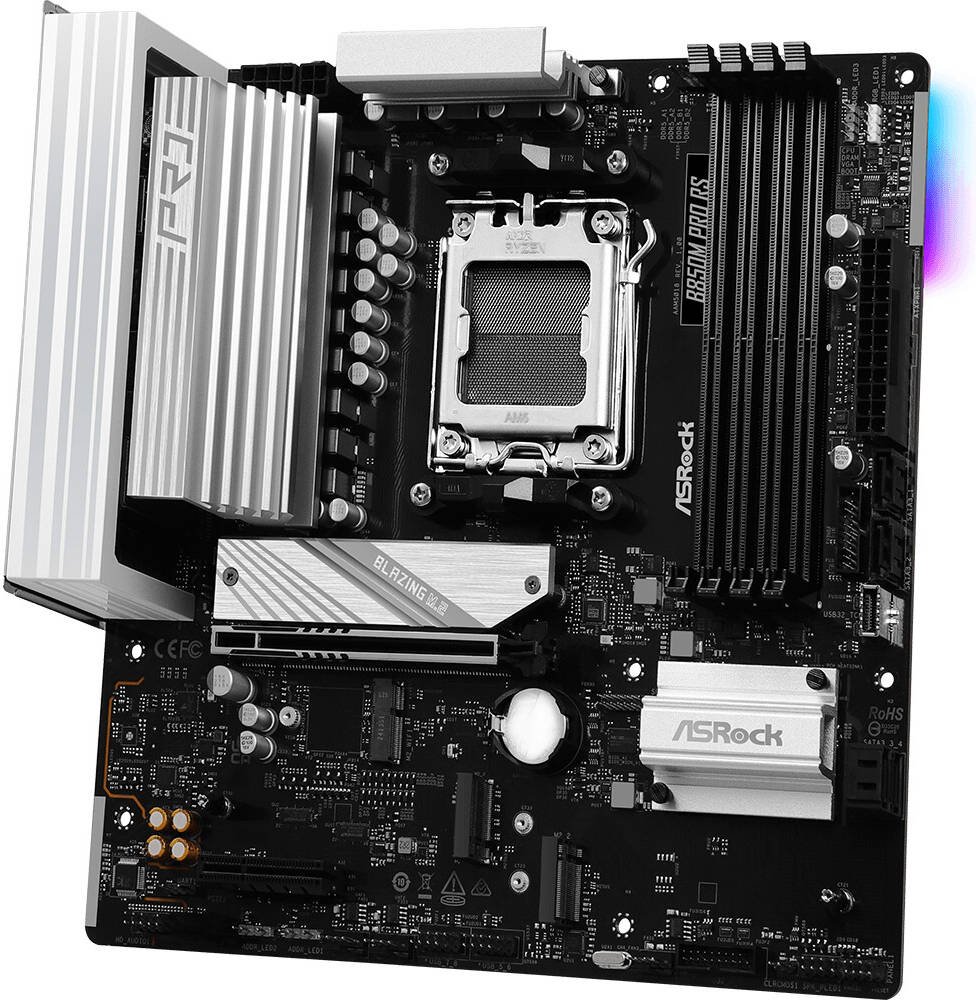

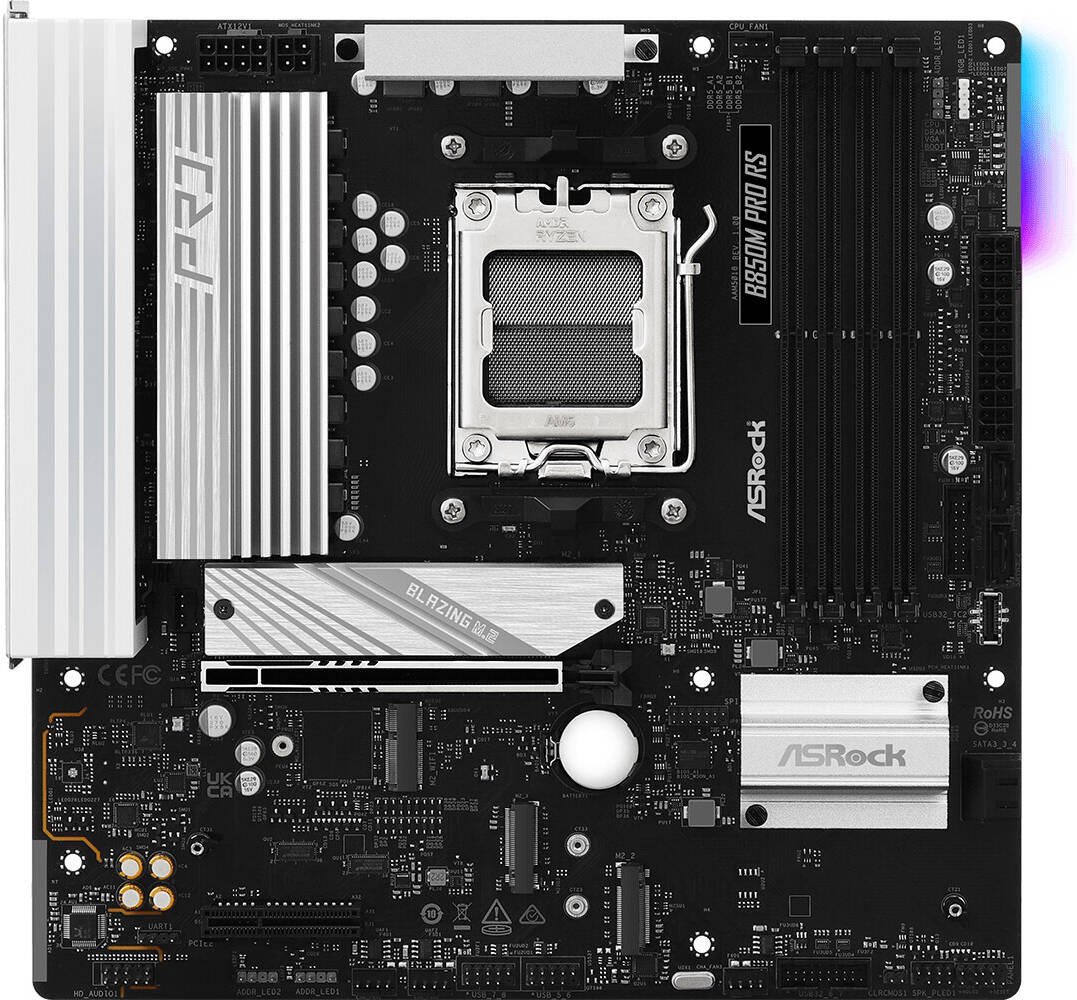

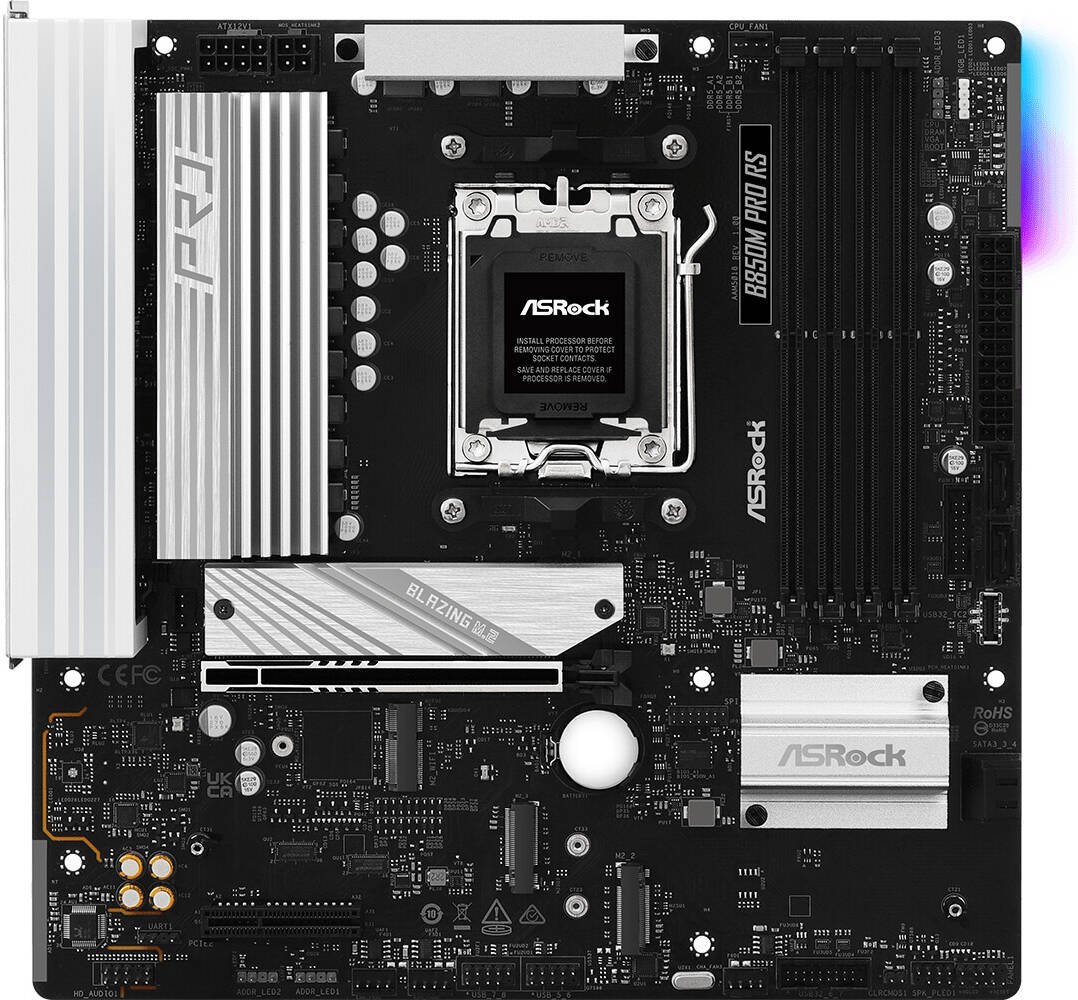

ASRock B850M Pro RS AM5 Micro ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 Slot, 1 x M.2 Socket

659,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
  • 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
Superb Productivity PCIe Gen5 (Graphics, M.2); Dual Channel DDR5
Rock-Solid Durability 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC; Pre-Installed I/O Shield
Ultrafast Connectivity 2.5G LAN
EZ Update BIOS Flashback Button; ASRock Auto Driver Installer
EZ Troubleshooter ASRock Post Status Checker
CPU Support AMD Socket AM5 Ryzen 9000 / 8000 / 7000 Series*
Chipset AMD B850
Memory Support Dual Channel DDR5; 4× DIMM; Up to 8000+ (OC); 256GB max; Supports ECC/Non-ECC UDIMM; XMP/EXPO
BIOS 256Mb AMI UEFI with GUI
Integrated Graphics AMD RDNA™ (dependent on CPU)
HDMI Output HDMI 2.1 TMDS/FRL 8G, HDR, HDCP 2.3, 4K 120Hz
DisplayPort Output DisplayPort 1.4 w/ DSC, HDCP 2.3, 4K 120Hz
Audio 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio
LAN 2.5G LAN (Dragon RTL8125BG); Smart Auto Adjust; Usage Statistics; App Priority Control
PCIe Slot (CPU) 1× PCIe 5.0 x16 (PCIE1)*; 1× PCIe 4.0 x4 (PCIE2)*
PCIe Notes PCIE1 Gen5x16 (9000/7000), Gen4x8 (8000 Phoenix 1), Gen4x4 (8000 Phoenix 2); PCIE2 disabled if M2_3 occupied
WiFi Slot 1× M.2 E-Key (2230)
Gold Contact 15µ Gold in PCIe x16 Slot
M.2 (CPU) 1× Gen5x4 (M2_1, 2280); 1× Gen4x4 (M2_3, 2280)*
M.2 (Chipset) 1× Gen4x4 (M2_2, 2280)
SATA 4× SATA 6Gb/s
M.2 Notes M2_1 priority; Gen mode varies by CPU; PCIE2 disabled if M2_3 used
RAID Support RAID 0/1/10 for SATA & NVMe*
USB (CPU) 1× USB 3.2 Gen2 Type-C (Rear); 1× USB 3.2 Gen2 Type-A (Rear)
USB (Chipset) 1× USB 3.2 Gen1 Type-C (Front); 6× USB 3.2 Gen1 (2 Rear, 4 Front); 8× USB 2.0 (4 Rear, 4 Front)
Connectors TPM Header; Power LED + Speaker; RGB Header; 3× ARGB Headers; 2× CPU Fan (4-pin); 3× Chassis Fan (4-pin); 24-pin ATX; 8-pin + 4-pin CPU Power; Front Audio; 2× USB 2.0 Headers; 2× USB 3.2 Gen1 Headers; USB-C Front Header
Fan Power Specs CPU_FAN1 up to 1A; CPU_FAN2 & CHA_FAN1-3 up to 3A; Auto-detect 3/4-pin

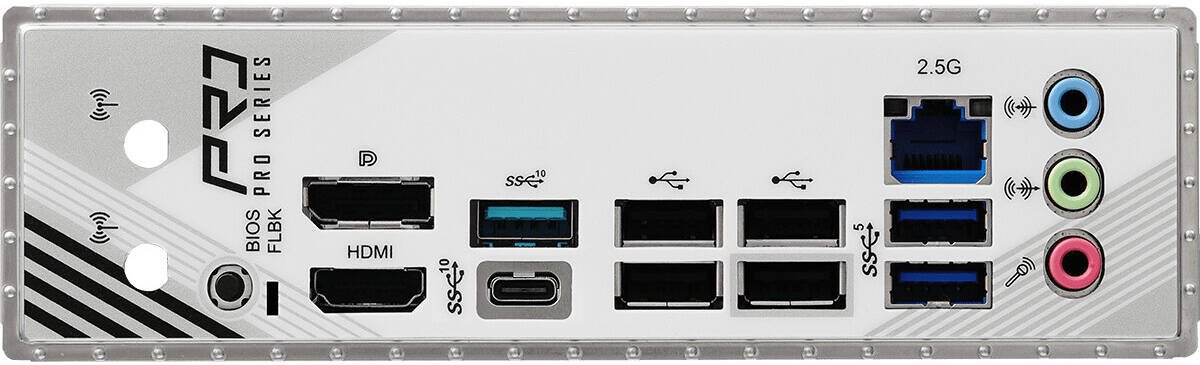

Rear I/O 2× WiFi Antenna Points; HDMI; DP 1.4; USB 3.2 Gen2 Type-A; USB 3.2 Gen2 Type-C; 2× USB 3.2 Gen1; 4× USB 2.0; 2.5G LAN; BIOS Flashback; Audio Jacks
Software A-Tuning; Dragon 2.5G LAN Utility; Polychrome SYNC
UEFI EZ Mode; Full HD UEFI; Auto Driver Installer; Instant Flash
Accessories 2× SATA Cables; 1× M.2 Screw
Form Factor Micro-ATX (9.6" × 9.6" / 24.4 × 24.4 cm)
OS Support Windows 10 64-bit / Windows 11 64-bit
Certifications FCC, CE, ErP/EuP Ready
