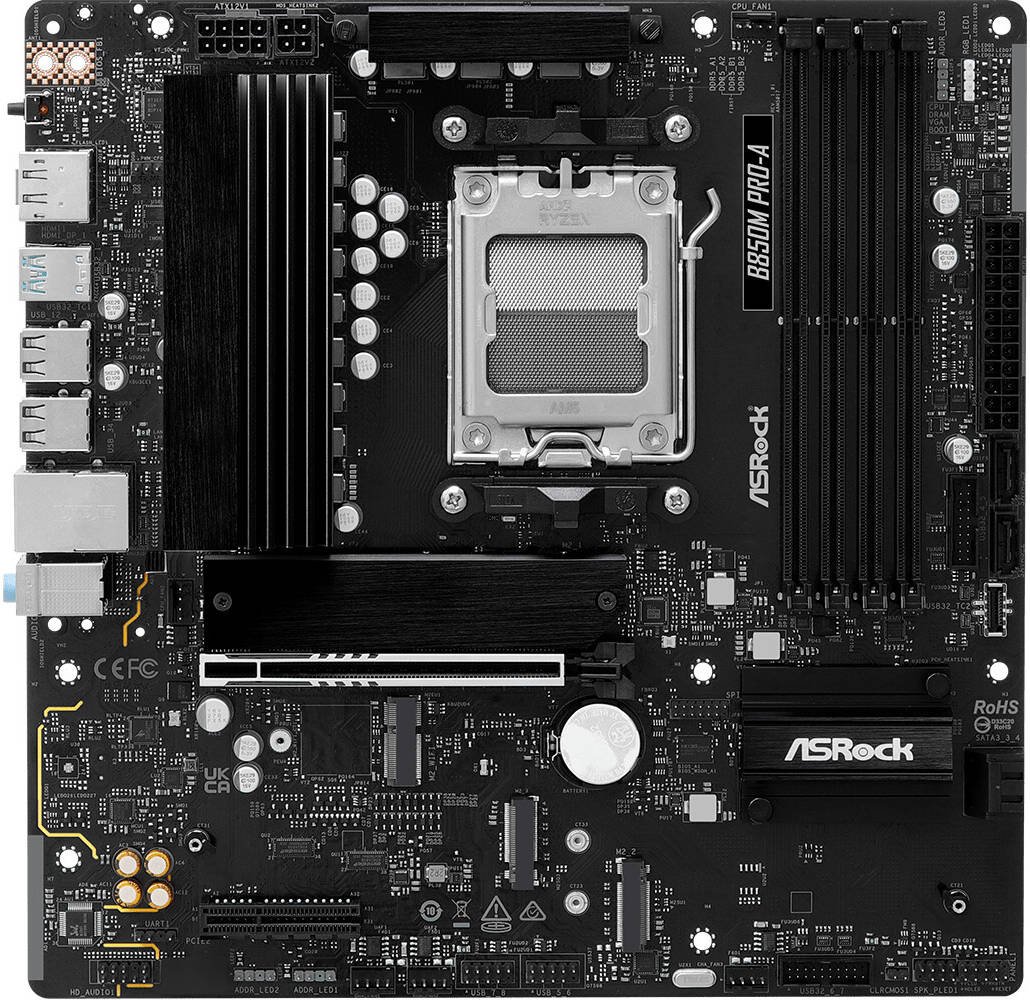

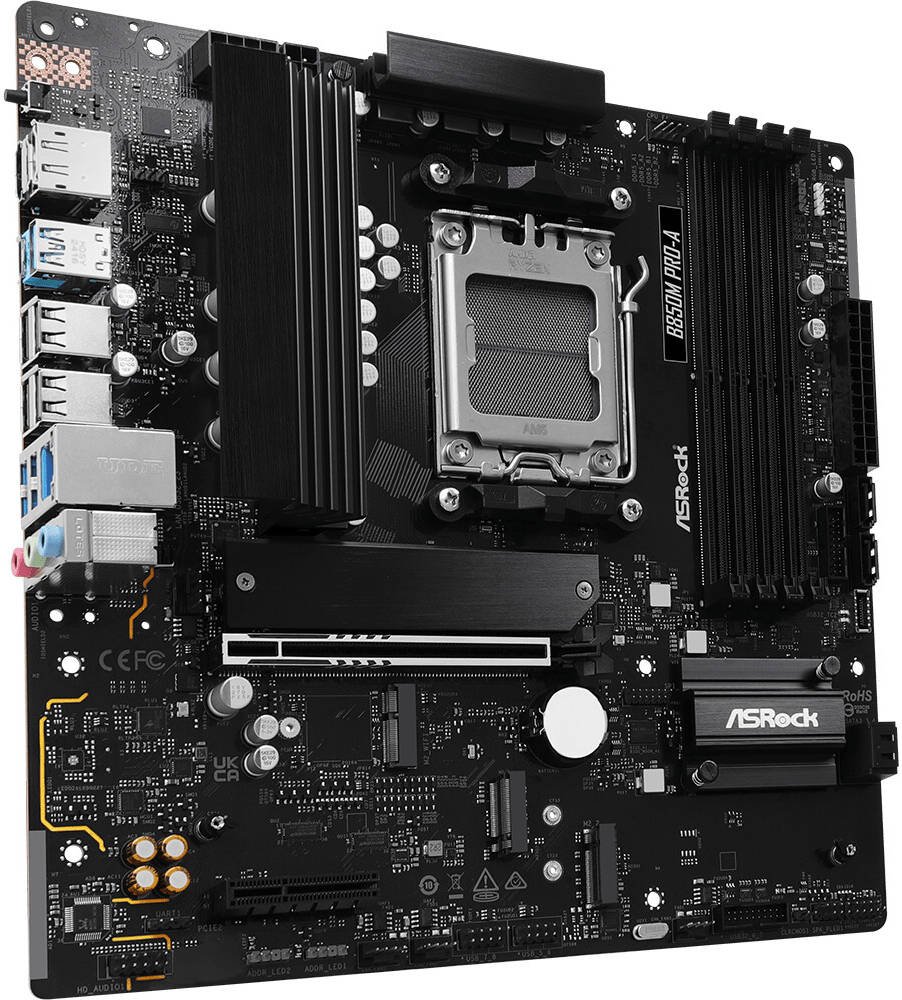

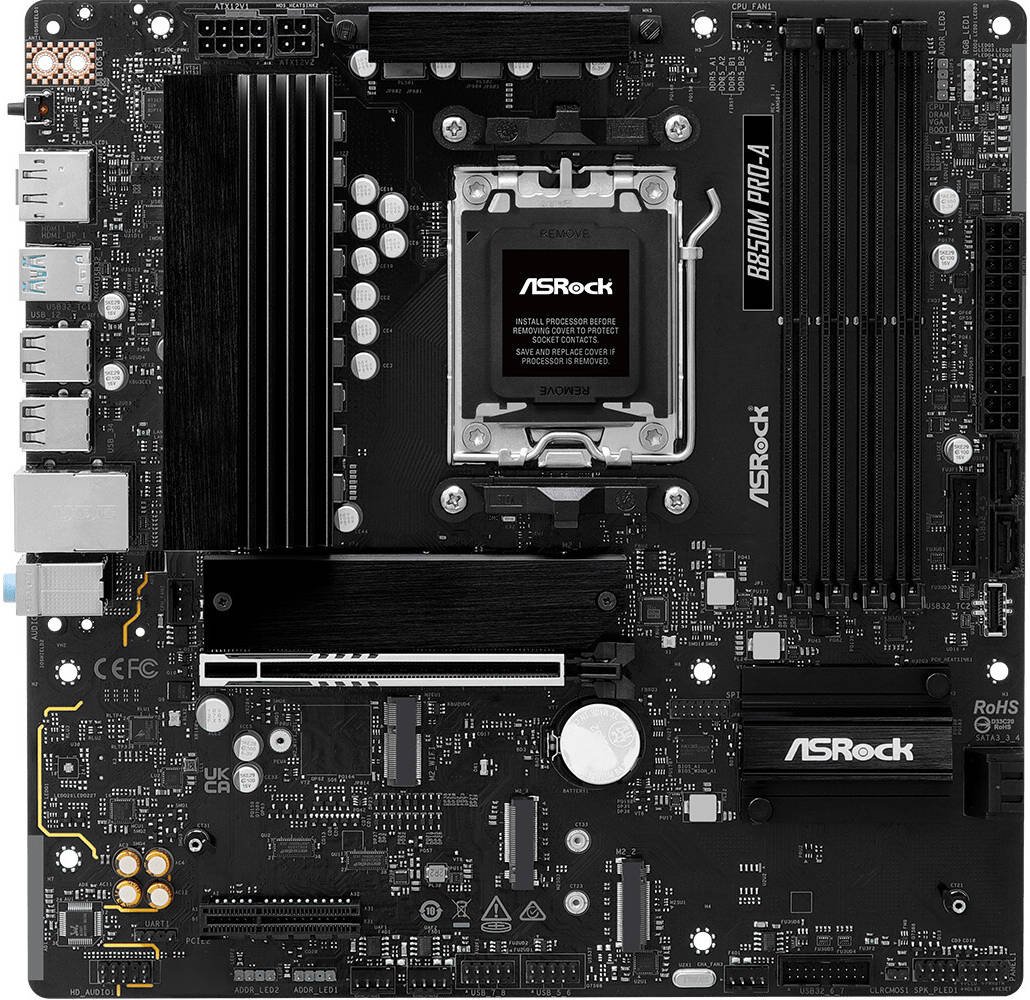

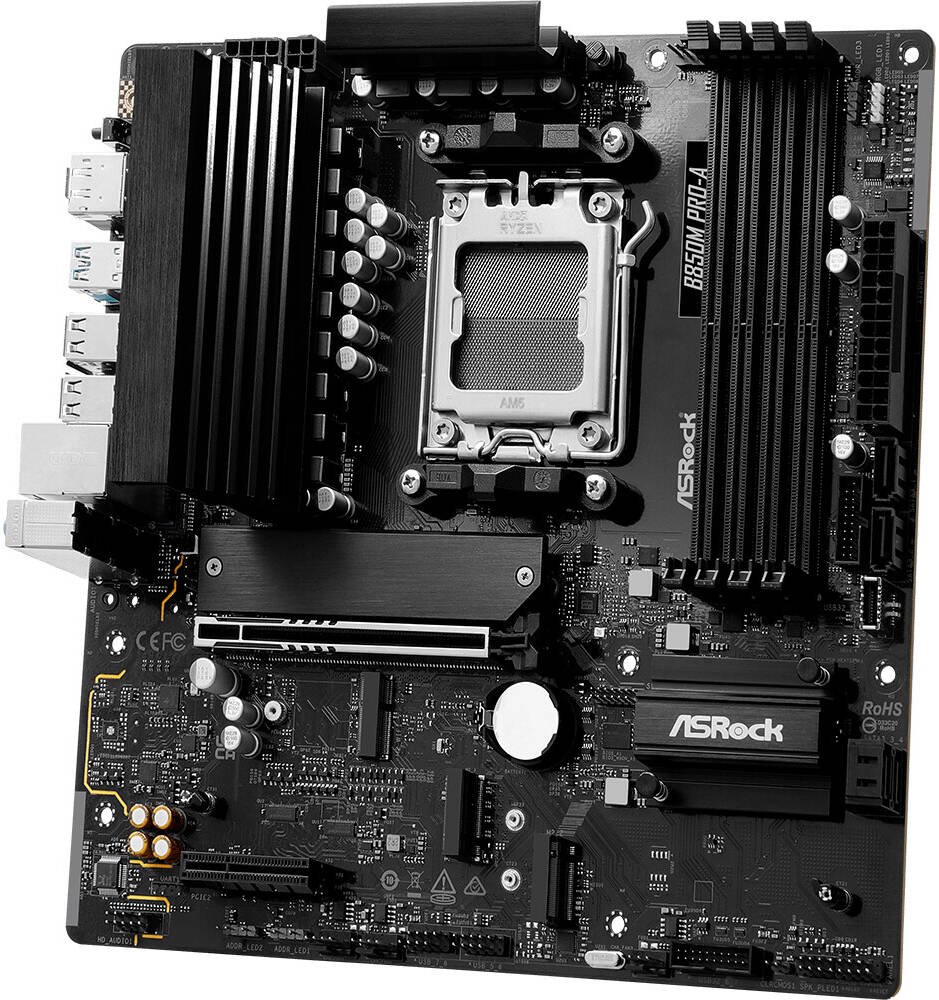

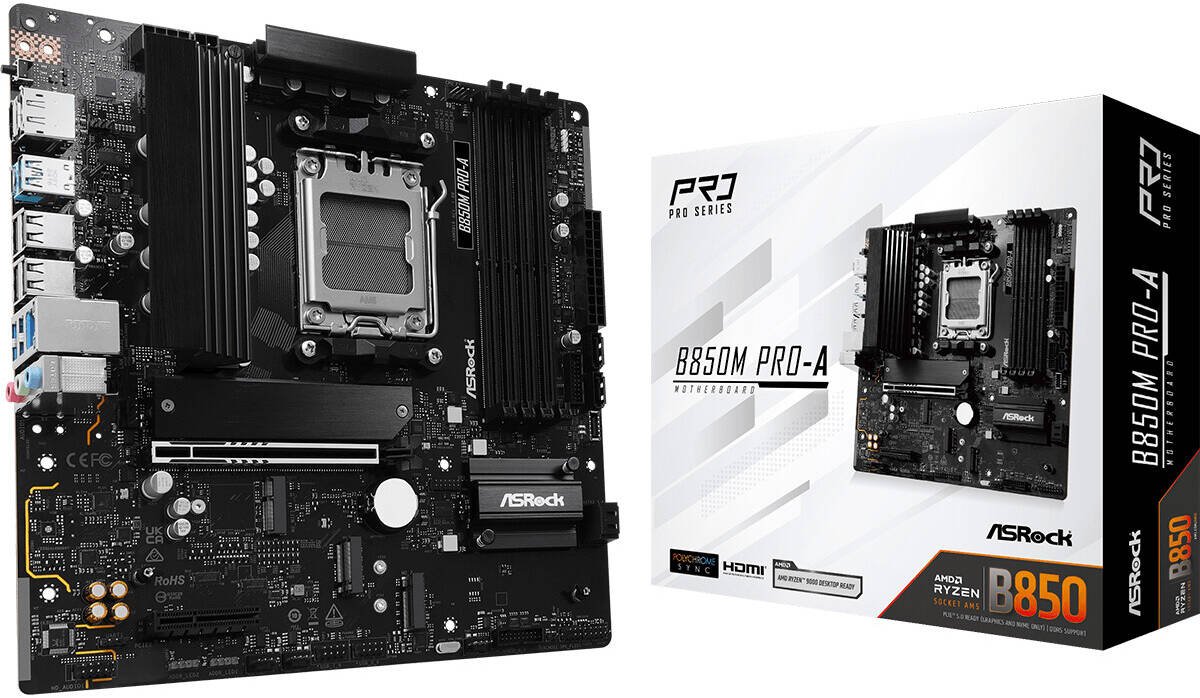

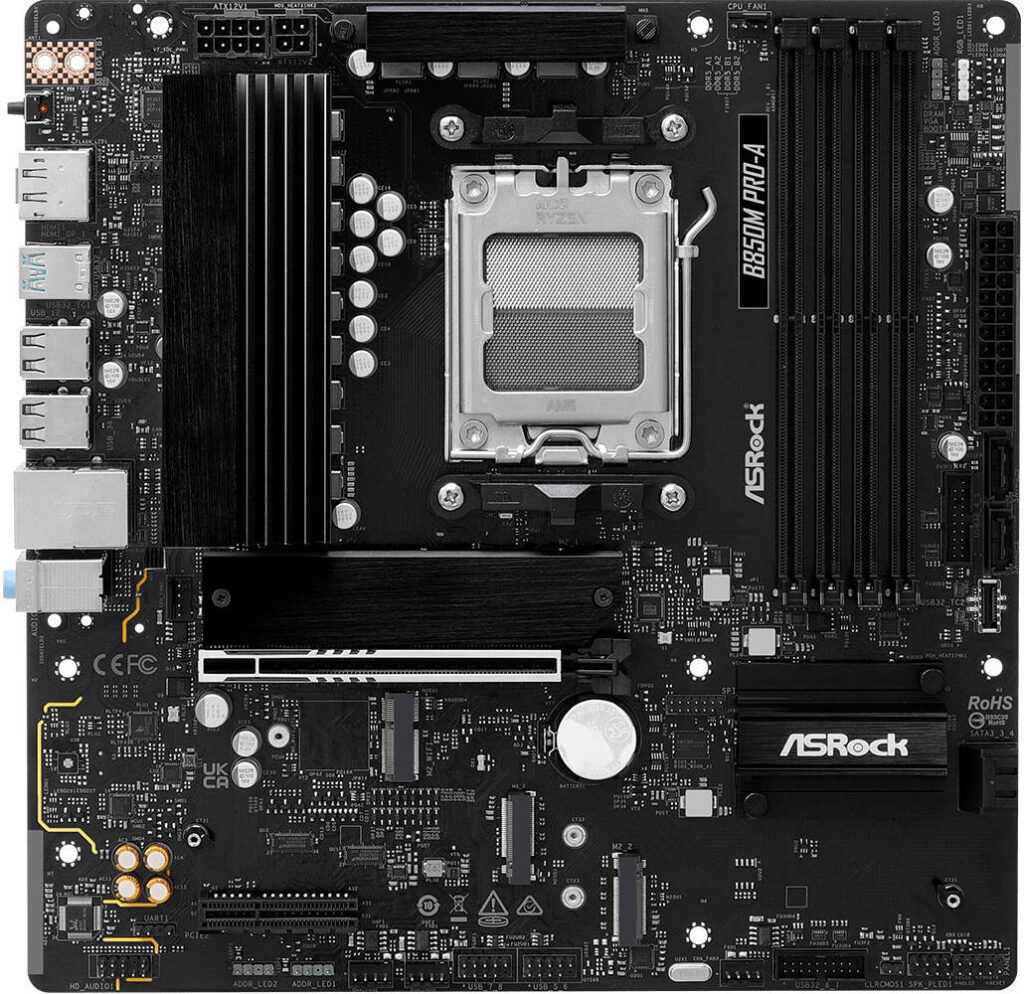

ASRock B850M Pro-A AM5 Micro ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 Slot, 1 x M.2 Socket

599,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
  • 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
Superb Productivity PCIe Gen5 (Graphics, M.2); Dual Channel DDR5
Rock-Solid Durability 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
Ultrafast Connectivity 2.5G LAN
EZ Update BIOS Flashback Button; ASRock Auto Driver Installer
EZ Troubleshooter ASRock Post Status Checker
CPU Support AMD Socket AM5 Ryzen™ 9000, 8000, 7000 Series*
Expansion slot availability may vary by CPU
Chipset AMD B850
Memory Dual Channel DDR5; 4× DIMM Slots; Supports ECC/non-ECC un-buffered up to 8000+(OC); Max 256GB; Supports XMP/EXPO
BIOS 256Mb AMI UEFI Legal BIOS with GUI
Integrated Graphics AMD RDNA™ graphics (depends on CPU)
HDMI Output 1× HDMI 2.1 TMDS/FRL 8G, HDR, HDCP 2.3, max resolution 4K 120Hz
DisplayPort Output 1× DisplayPort 1.4 with DSC, HDCP 2.3, max resolution 4K 120Hz
Audio 7.1 CH HD Audio (Realtek ALC897)
LAN 2.5 Gigabit LAN (Dragon RTL8125BG); Supports Dragon 2.5G LAN Software; Bandwidth and priority control
CPU PCIe Slots 1× PCIe 5.0 x16 (PCIE1, supports x16); 1× PCIe 4.0 x4 (PCIE2, supports x4)
Chipset Slots 1× M.2 Socket (Key E, 2230 WiFi/BT PCIe); 15µ Gold contact in PCIe x16 slot
PCIe Notes PCIE1 Gen5x16 (9000/7000), Gen4x8 (8000 Phoenix 1), Gen4x4 (8000 Phoenix 2); PCIE2 disabled if M2_3 occupied; NVMe SSD boot support
Storage M.2 (CPU) M2_1: Gen5x4 (2280); M2_3: Gen4x4 (2280)
M2_1 priority; CPU-dependent Gen mode
Storage M.2 (Chipset) M2_2: Gen4x4 (2280)
SATA 4× SATA3 6Gb/s connectors
RAID Support RAID 0, 1, 10 for SATA & M.2 NVMe*
NVMe RAID 10 requires additional expansion card
USB (CPU) 1× USB 3.2 Gen2 Type-C (Rear); 1× USB 3.2 Gen2 Type-A (Rear)
USB (Chipset) 1× USB 3.2 Gen1 Type-C (Front); 6× USB 3.2 Gen1 Type-A (2 Rear, 4 Front); 8× USB 2.0 (4 Rear, 4 Front)
Connectors 1× SPI TPM; Power LED + Speaker; 1× RGB Header; 3× ARGB Headers; CPU Fans 2× 4-pin; Chassis Fans 3× 4-pin; 24-pin ATX; 8-pin + 4-pin CPU Power; Front Panel Audio; 2× USB 2.0 Headers; 2× USB 3.2 Gen1 Headers; 1× USB-C Front Header
Fan Power CPU_FAN1: 1A; CPU_FAN2 & CHA_FAN1~3: 3A; Auto detect 3/4-pin
Rear Panel I/O 2× Antenna points; HDMI; DP 1.4; 1× USB 3.2 Gen2 Type-A; 1× USB 3.2 Gen2 Type-C; 2× USB 3.2 Gen1; 4× USB 2.0; RJ-45 LAN; BIOS Flashback; HD Audio jacks
Software ASRock Motherboard Utility (A-Tuning); Dragon 2.5G LAN Software; Polychrome SYNC*
Download via ASRock Live Update & APP Shop
UEFI ASRock EZ Mode; Full HD UEFI; Auto Driver Installer; Instant Flash
Accessories 1× I/O Shield; 2× SATA Cables; 1× M.2 Screw
Form Factor Micro ATX: 9.6" × 9.6" (24.4 × 24.4 cm)
OS Support Windows 10 64-bit; Windows 11 64-bit
Certifications FCC, CE; ErP/EuP ready (power supply required)
